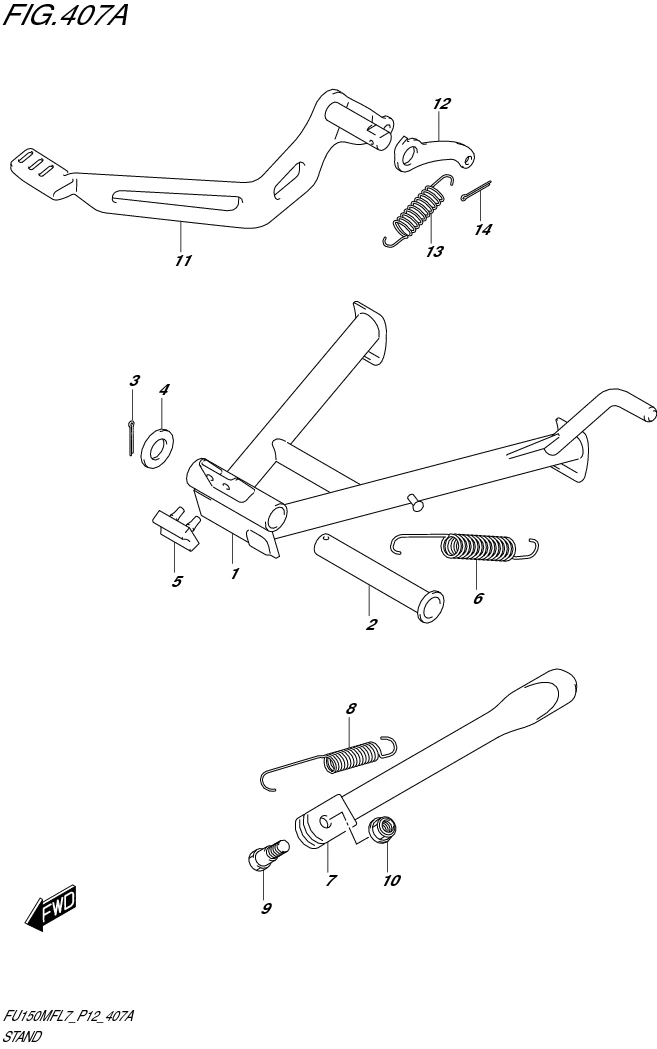

FIG. 407A STAND

FIG. 407A STAND
No No. Part Description Qty Price Per Pcs Remarks
1 42100-12K00-000 STAND, CENTER 1 Rp510.500
2 42211-25G00-000
SUB: 42211B25G00N000		 SHAFT, CENTER STAND 1 Rp23.500
3 04111-3025A-000
SUB: 04111B3025AN000		 COTTER PIN 1 Rp3.500
4 08322-0116A-000
SUB: 08322B0116AN000		 WASHER 1 Rp6.500
5 42272-09G00-000
SUB: 42272B09G00N000		 CUSHION, CENTER STAND 1 Rp4.500
6 42241-45H00-000
SUB: 42241B45H00N000		 SPRING, CENTER STAND 1 Rp13.000
7 42310-25G00-000
SUB: 42310B25G00N000		 STAND, PROP 1 Rp40.500
8 09443-14077-000 SPRING 1 Rp6.000
9 42341-25G20-000 BOLT 1 Rp6.500
10 08319-3110A-000 NUT 1 Rp4.500
11 43110-12K00-000 PEDAL, BRAKE 1 Rp58.500
12 43128-12K00-000 PLATE, RETURN SPRING 1 Rp8.500
13 43211-25G00-000
SUB: 43211B25G00N000		 SPRING 1 Rp4.000
14 04111-3025A-000
SUB: 04111B3025AN000		 COTTER PIN 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
