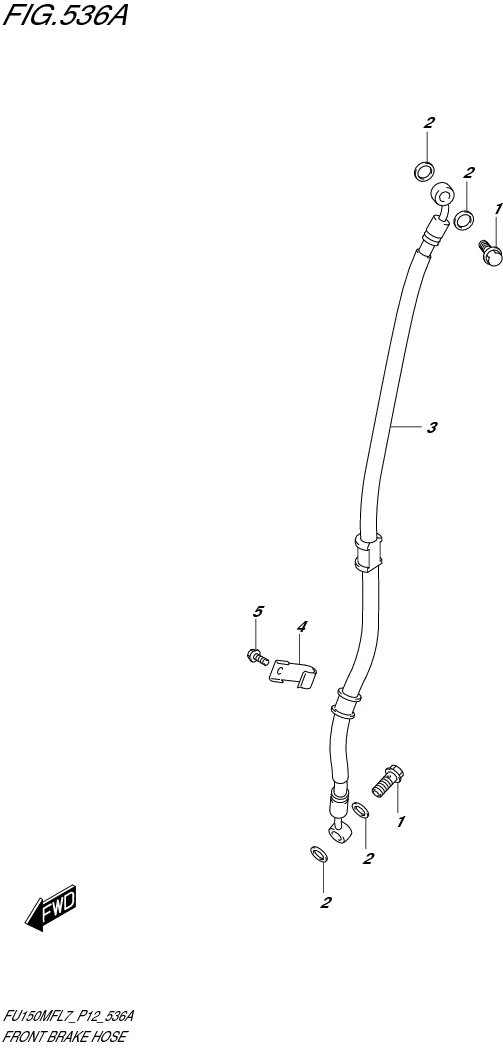

FIG. 536A FRONT BRAKE HOSE

FIG. 536A FRONT BRAKE HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 59492-30H20-000 BOLT, BRAKE FLUID 2 Rp25.000
2 59502-34J10-000 WASHER, BRAKE FLUID 4 Rp11.500
3 59480-12K00-000 HOSE, FRONT BRAKE 1 Rp224.000
4 59268-19D60-000 CLAMP, HOSE LOWER 1 Rp6.500
5 01547-0610A-000 BOLT 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
