All New Satria F150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 407A STANDFIG. 410A PILLION RIDER HANDLEFIG. 415A FOOTRESTFIG. 420A FUEL TANKFIG. 445A FRAME COVERFIG. 451A HEADLAMP HOUSINGFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 467A HANDLE LEVERFIG. 474A REAR FENDERFIG. 483A UNDER COWLINGFIG. 489A FRONT BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 536A FRONT BRAKE HOSEFIG. 537A FRONT MASTER CYLINDERFIG. 541A REAR SWINGINGARMFIG. 550A REAR WHEELFIG. 555A REAR CALIPERFIG. 558A REAR MASTER CYLINDER

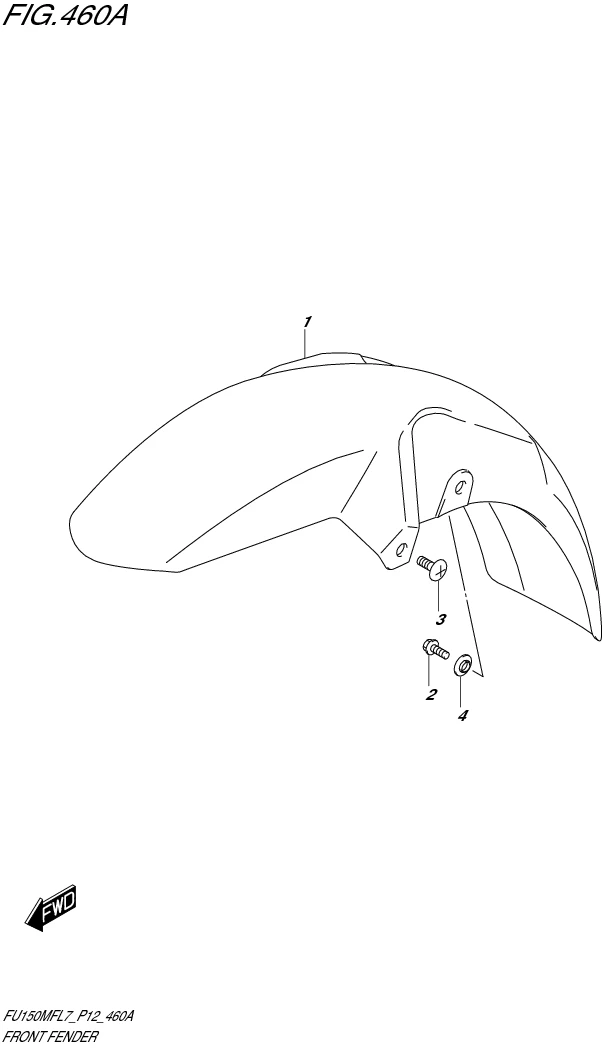

FIG. 460A FRONT FENDER

FIG. 460A FRONT FENDER
No No. Part Description Qty Price Per Pcs Remarks
1-1 53111-12K00-YVU FENDER, FRONT (BLACK)FOR GTA, ANM, AM7, AYX 1 Rp129.500 FOR GTA, ANM, AM7, AYX
1-2 53111-12K00-YUJ FENDER, FRONT (BLUE)FOR YUJ 1 Rp138.000 FOR YUJ
2 01547-0610A-000
SUB: 01547B0612AN000		 BOLT 3 Rp3.000
3 09139-06145-000
SUB: 09139B06145N000		 SCREW (6X16) 2 Rp6.500
4 09169-06053-000
SUB: 09169B06053N000		 WASHER 2 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
