All New Satria F150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 407A STANDFIG. 410A PILLION RIDER HANDLEFIG. 415A FOOTRESTFIG. 420A FUEL TANKFIG. 445A FRAME COVERFIG. 451A HEADLAMP HOUSINGFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 467A HANDLE LEVERFIG. 474A REAR FENDERFIG. 483A UNDER COWLINGFIG. 489A FRONT BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 536A FRONT BRAKE HOSEFIG. 537A FRONT MASTER CYLINDERFIG. 541A REAR SWINGINGARMFIG. 550A REAR WHEELFIG. 555A REAR CALIPERFIG. 558A REAR MASTER CYLINDER

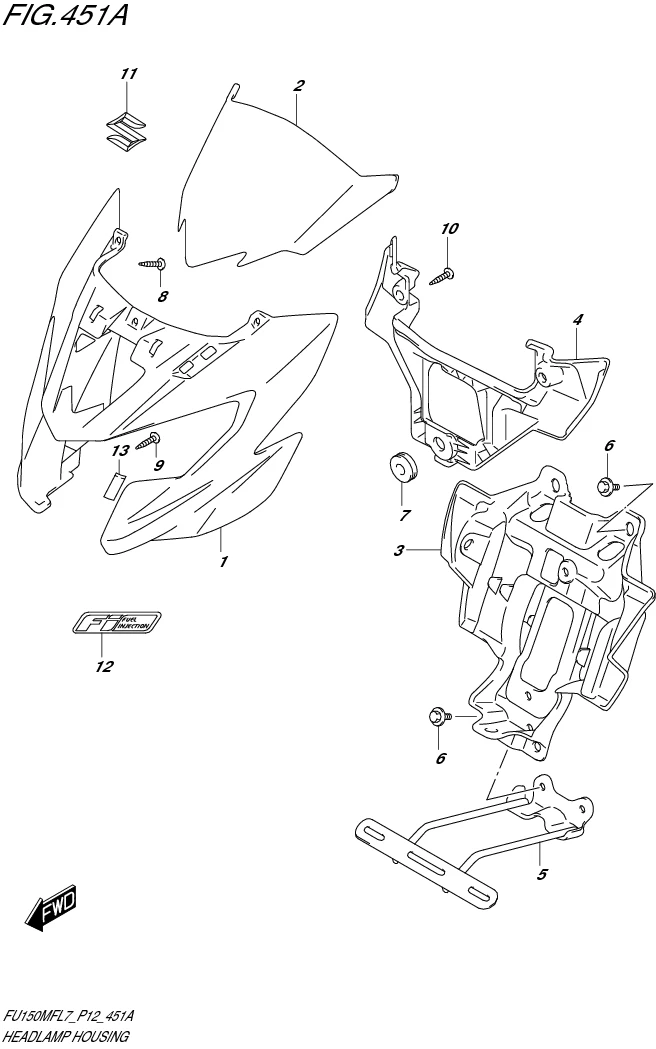

FIG. 451A HEADLAMP HOUSING

FIG. 451A HEADLAMP HOUSING
No No. Part Description Qty Price Per Pcs Remarks
1-1 51811-12K00-YVU HOUSING, HEADLAMP (BLACK)FOR GTA, ANM, AM7, AYX 1 Rp173.500 FOR GTA, ANM, AM7, AYX
1-2 51811-12K00-YUJ HOUSING, HEADLAMP (BLUE)FOR YUJ 1 Rp173.500 FOR YUJ
2 51812-12K00-291 COVER, METER (BLACK) 1 Rp149.000
3 51851-12K00-291 BRACE, HOUSING 1 Rp61.000
4 51861-12K00-000 BRACE, METER HOUSING 1 Rp56.000
5 51890-12K00-000 BRACKET, FRONT LICENSE 1 Rp40.500
6 09111-06102-000 BOLT (6X14.8) 6 Rp3.500
7 09320-08028-000
SUB: 09320B08028N000		 CUSHION 1 Rp11.500
8 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 3 Rp3.500
9 03541-0512A-000
SUB: 03541B0512AN000		 SCREW 4 Rp3.500
10 03541-0512B-000
SUB: 03541B0512BN000		 SCREW 2 Rp4.000
11 68641-22J11-000
SUB: 68641-22J00-000		 EMBLEM, "S" 1 Rp24.000
12 68281-22J01-ANN
SUB: 68281-22J00-ANN		 EMBLEM, FI (SILVER/GRAY) 1 Rp3.500
13 51852-12K00-000 CUSHION, HEADLAMP HOUSING 8 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
