SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 HANDLE SWITCHFIG.29 FRAMEFIG.30 STANDFIG.31 FOOTRESTFIG.32 FUEL TANKFIG.33 FRAME COVERFIG.34 FRONT LEG SHIELDFIG.35 LOWERLEG SHIELDFIG.36 LEG SHIELD RACKFIG.37 LEG SHIELD COVERFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEAT ASSYFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 WHEEL FRONTFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHEEL

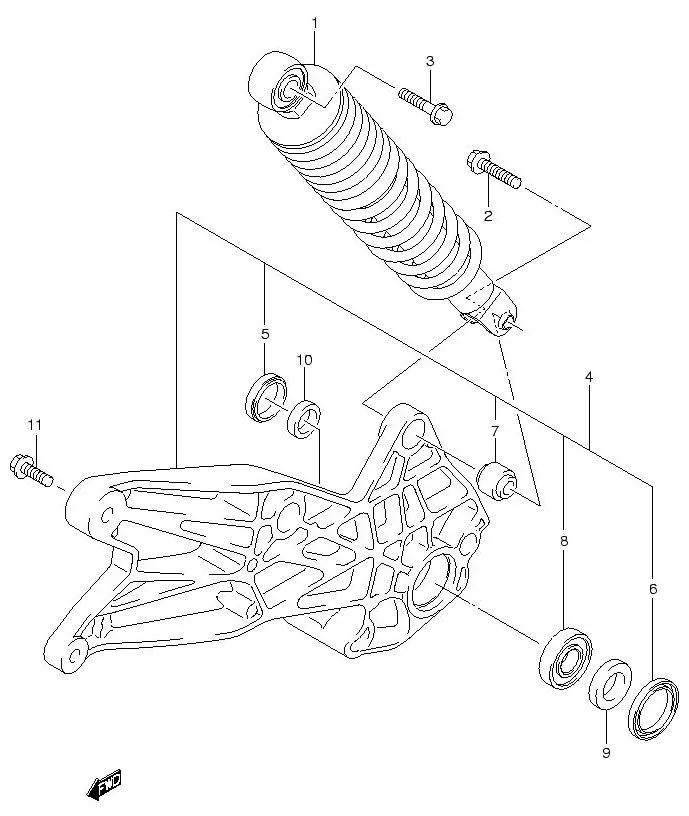

FIG.52 SWINGING ARM REAR

FIG.52 SWINGING ARM REAR
No No. Part Description Qty Price Per Pcs Remarks
1 62100-13H11-X1K
SUB: 62100B13H10N000		 ABSORBER ASSY, REAR SHOCK 1 Rp349.500
2 01570-1035B-000 BOLT 1 Rp14.000
3 01570-1040B-000 BOLT 1 Rp15.000
4 61000-13H00-13L
SUB: 61000B13H00N000		 SWINGINGARM, REAR 1 Rp854.500
5 09285-25006-000
SUB: 09285-25002-000		 .SEAL 1 Rp17.000
6 09285-34002-000
SUB: 09285B34002N000		 .SEAL 1 Rp26.000
7 09319-10032-000 .BUSH 1 Rp24.500
8 08133-62037-000 .BEARING 1 Rp41.500
9 64741-13H00-000
SUB: 64741B13H00N000		 SPACER, REAR AXLE INNER 1 Rp17.500
10 64751-13H00-000
SUB: 64751B13H00N000		 SPACER, REAR AXLE OUTER 1 Rp15.500
11 01550-0830B-000
SUB: 01550B0830BN000		 BOLT 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
