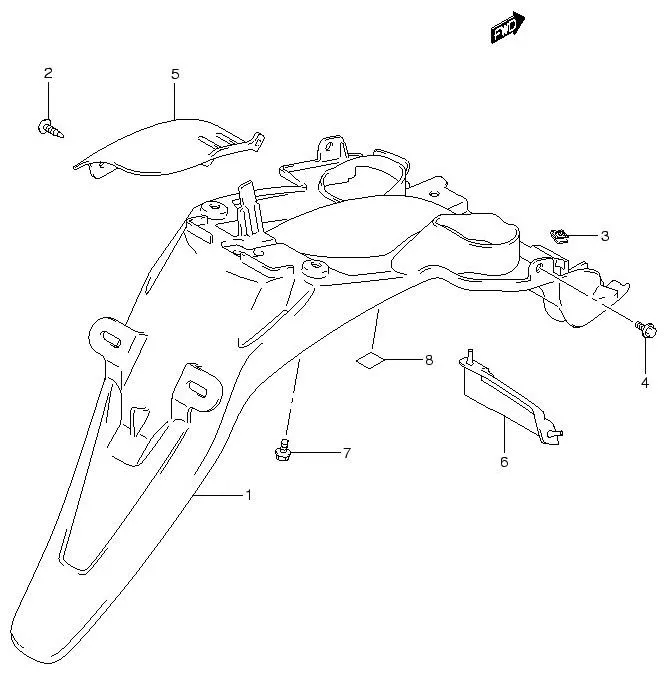

FIG.43 REAR FENDER

FIG.43 REAR FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 63111-13H11-000
SUB: 63111B13H00N000		 FENDER, REAR 1 Rp93.000
2 03541-0512B-000
SUB: 03541B0512BN000		 SCREW 1 Rp4.000
3 09148-05038-000
SUB: 09148B05038N000		 NUT 1 Rp4.000
4 01550B0612BN000 BOLT 4 Rp2.500
5 63112-13H00-000
SUB: 63112B13H00N000		 FENDER, REAR FRONT 1 Rp23.000
6 63411-13H10-000
SUB: 63411B13H10N000		 MUDGUARD 1 Rp33.500
7 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 1 Rp3.500
8 63191-13H00-000 CUSHION 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
