SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 HANDLE SWITCHFIG.29 FRAMEFIG.30 STANDFIG.31 FOOTRESTFIG.32 FUEL TANKFIG.33 FRAME COVERFIG.34 FRONT LEG SHIELDFIG.35 LOWERLEG SHIELDFIG.36 LEG SHIELD RACKFIG.37 LEG SHIELD COVERFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEAT ASSYFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 WHEEL FRONTFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHEEL

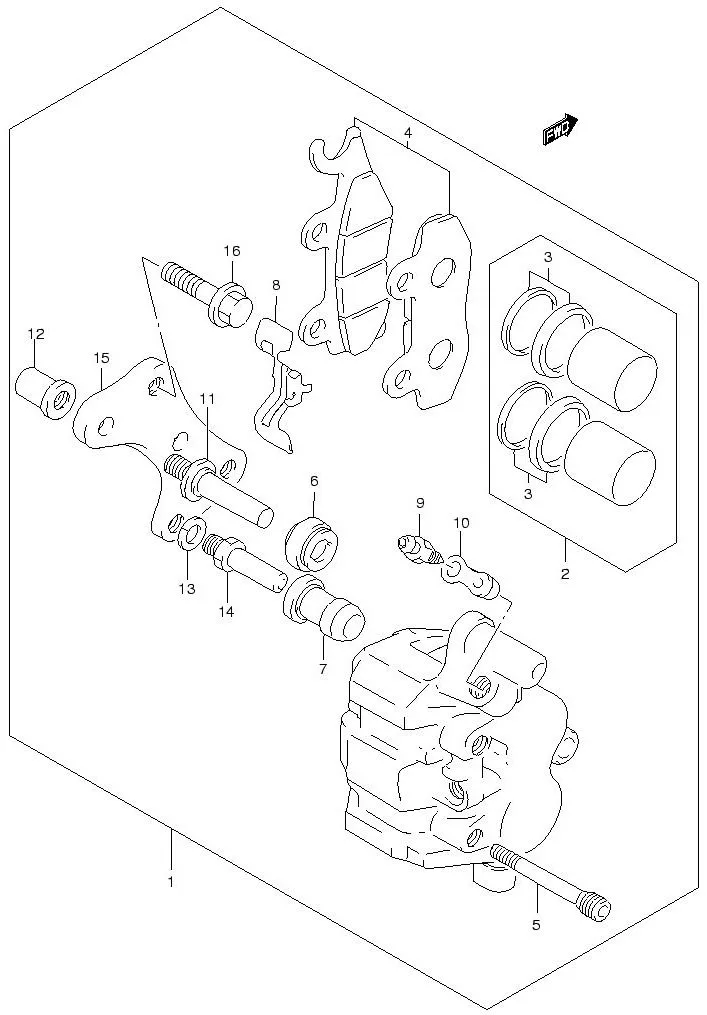

FIG.50 FRONT CALIPER

FIG.50 FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 59100-21D41-000
SUB: 59100B21D40N000		 CALIPERS ASSY, FRONT RH 1 Rp943.000
2 69100-31810-000
SUB: 69100-31810L000		 .PISTON SET 1 Rp166.500
3 59300-13820-000
SUB: 59300-13820L000		 ..SEAL SET, PISTON 1 Rp37.000
4 59100-21850-000
SUB: 59100-21850L000		 .PAD SET 1 Rp66.000
5 59345-14600-000
SUB: 59345-14600L000		 .PIN 2 Rp35.000
6 59303-14500-000
SUB: 59303-14500L000		 .BOOT 1 Rp12.500
7 59386-13A00-000
SUB: 59386-13A00L000		 .BOOT 1 Rp14.000
8 69115-31D10-000
SUB: 69115-31D10L000		 .SPRING 1 Rp26.500
9 59121-01A00-000
SUB: 59121-01A00L000		 .BLEEDER 1 Rp14.500
10 59122-01A00-000
SUB: 59122-01A00L000		 .CAP, BLEEDER 1 Rp3.000
11 59387-00B20-000
SUB: 59387-00B20L000		 .PIN 1 Rp25.500
12 59388-00B20-000
SUB: 59388-00B20L000		 .NUT 1 Rp28.500
13 59314-13A00-000
SUB: 59314-13A00L000		 .WASHER 1 Rp3.000
14 59382-13A00-000
SUB: 59382-13A00L000		 .BOLT 1 Rp13.500
15 59351-21D00-000
SUB: 59351-21D00L000		 .BRACKET 1 Rp96.500
16 01550-0610B-000
SUB: 01550B0610BN000		 BOLT (8X33) 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
