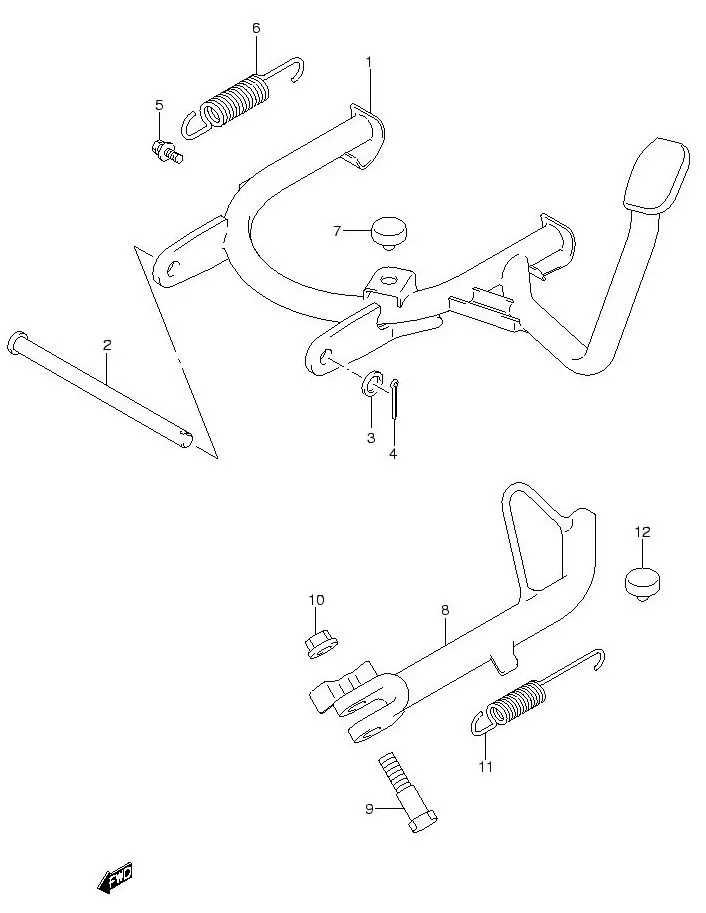

FIG.30 STAND

FIG.30 STAND
No No. Part Description Qty Price Per Pcs Remarks
1 42100-13H20-000
SUB: 42100B13H20N000		 STAND, CENTER 1 Rp185.000
2 42211-16F11-000
SUB: 42211B16F11N000		 SHAFT 1 Rp13.500
3 08322-0110B-000 WASHER 1 Rp4.500
4 04111-3020A-000 COTTER PIN 1 Rp2.500
5 42251-32G00-000
SUB: 42251B32G00N000		 BOLT, SPRING 1 Rp32.500
6 09443-17006-000
SUB: 09443B17006N000		 SPRING 1 Rp16.000
7 09321-10001-000
SUB: 09321-10001L000		 CUSHION 1 Rp6.500
8 42310-13H00-000
SUB: 42310B13H00N000		 STAND, PROP 1 Rp73.500
9 42341-09G01-000
SUB: 42341B09G00N000		 BOLT 1 Rp5.000
10 08319-3110A-000 NUT 1 Rp4.500
11 09443-14022-000
SUB: 09443-14022L000		 SPRING 1 Rp5.000
12 09321-10001-000
SUB: 09321-10002-000		 CUSHION 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
