SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 HANDLE SWITCHFIG.29 FRAMEFIG.30 STANDFIG.31 FOOTRESTFIG.32 FUEL TANKFIG.33 FRAME COVERFIG.34 FRONT LEG SHIELDFIG.35 LOWERLEG SHIELDFIG.36 LEG SHIELD RACKFIG.37 LEG SHIELD COVERFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEAT ASSYFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 WHEEL FRONTFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHEEL

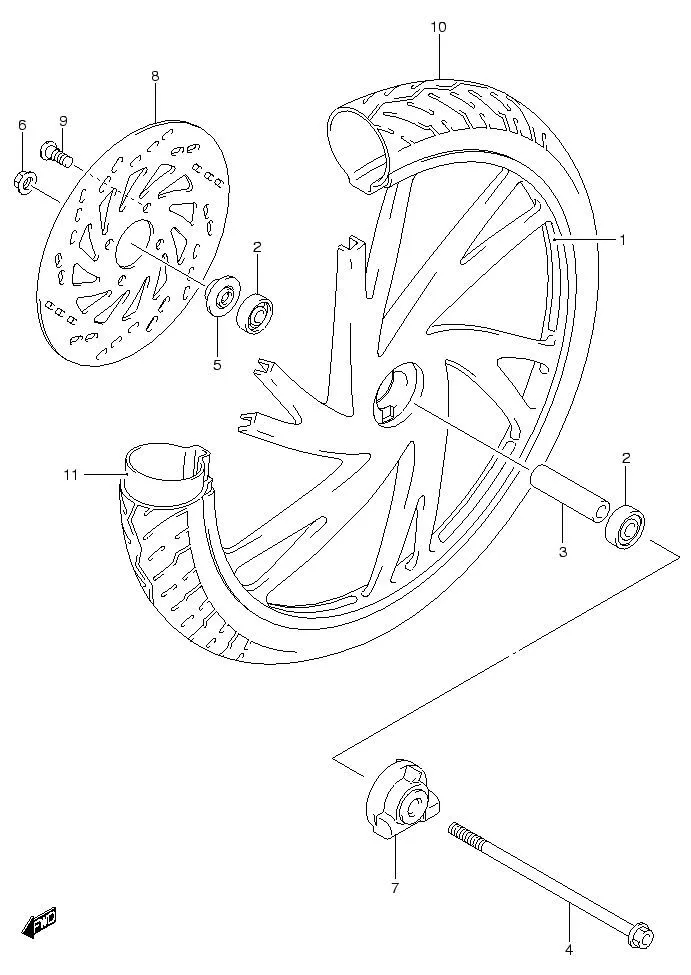

FIG.49 WHEEL FRONT

FIG.49 WHEEL FRONT
No No. Part Description Qty Price Per Pcs Remarks
1-1 DISCONTINUE
SUB: 54111B13H00N000		 WHEEL, FRONT (16X1.40) BLACK 1 -
1-2 DISCONTINUE
SUB: 54111B13H00N291		 WHEEL FR 16X1.4 BLACK 50% GLOSS 1 -
1-3 DISCONTINUE
SUB: 54111B13H00NX0L		 WHEEL FR (16X1.40) BRONZE MET NR 1 -
1-4 DISCONTINUE
SUB: 54111B13H00NX9D		 WHEEL FR (16X1.40) LUXURY GOLD NR.II 1 -
2 08123-63007-000
SUB: 08123-63007L000		 BEARING 2 Rp32.500
3 DISCONTINUE
SUB: 09180-10148L000		 SPACER, FRONT HUB (10.2X16X51) 1 -
4 54711-13H00-000
SUB: 54711-04701L000		 AXLE, FRONT 1 Rp13.000
5 54750-46100-000
SUB: 54750-46100L000		 SPACER, FRONT AXLE RH 1 Rp12.500
6 08319-3110A-000 NUT 1 Rp4.500
7 54600-13H00-000
SUB: 54600B13H00N000		 BOX ASSY, SPEEDOMETER GEAR 1 Rp328.500
8 DISCONTINUE
SUB: 59211B07H20N000		 DISC, FRONT BRAKE 1 -
9 59218-09G10-000
SUB: 59218B09G00N000		 BOLT 4 Rp7.000
10 55110-13H20-000
SUB: 55110B13H20N000		 TIRE, FRONT 1 Rp243.000
11 DISCONTINUE
SUB: 55200B13H20N000		 TUBE ASSY, WHEEL INNER 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
