SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 HANDLE SWITCHFIG.29 FRAMEFIG.30 STANDFIG.31 FOOTRESTFIG.32 FUEL TANKFIG.33 FRAME COVERFIG.34 FRONT LEG SHIELDFIG.35 LOWERLEG SHIELDFIG.36 LEG SHIELD RACKFIG.37 LEG SHIELD COVERFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEAT ASSYFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 WHEEL FRONTFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHEEL

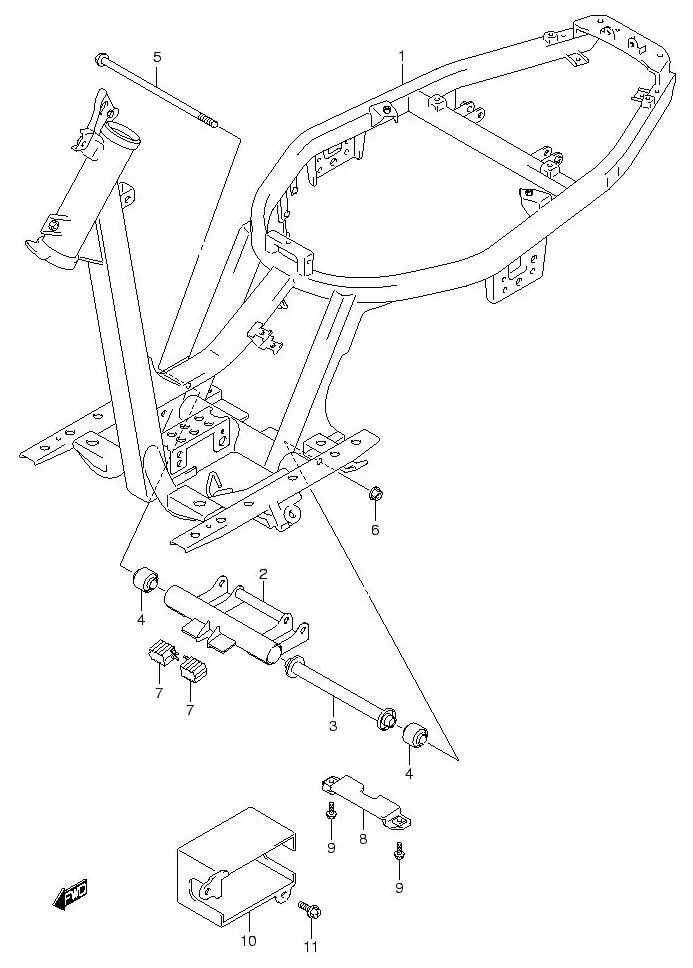

FIG.29 FRAME

FIG.29 FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 41100B13H00N000		 FRAME 1 -
2 41180-13H00-000
SUB: 41180B13H00N000		 BRACKET 1 Rp159.000
3 41170-13H00-000
SUB: 41170B13H00N000		 SPACER 1 Rp49.000
4 09319-12060-000 BUSH 2 Rp65.000
5 09103-12085-000 BOLT 1 Rp64.000
6 08319-3112B-000
SUB: 08319B3112BN000		 NUT 1 Rp9.000
7 DISCONTINUE
SUB: 41185B13H00N000		 CUSHION 2 -
8 41190-13H00-000
SUB: 41190B13H00N000		 BRACKET, UPPER 1 Rp18.500
9 01550-0816A-000
SUB: 01550B0816BN000		 BOLT 2 Rp6.000
10 41541-13H00-000
SUB: 41541B13H00N000		 HOLDER, BATTERY 1 Rp19.000
11 09111-06107-000
SUB: 63161B43E00N000		 BOLT 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
