SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 HANDLE SWITCHFIG.29 FRAMEFIG.30 STANDFIG.31 FOOTRESTFIG.32 FUEL TANKFIG.33 FRAME COVERFIG.34 FRONT LEG SHIELDFIG.35 LOWERLEG SHIELDFIG.36 LEG SHIELD RACKFIG.37 LEG SHIELD COVERFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEAT ASSYFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 WHEEL FRONTFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHEEL

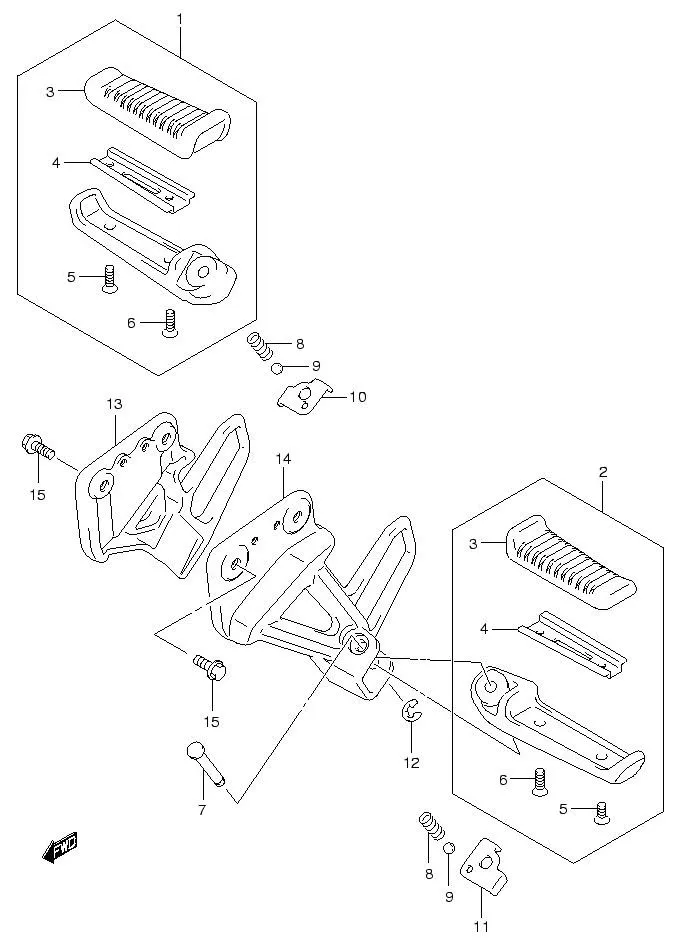

FIG.31 FOOTREST

FIG.31 FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 43600B13H00N000		 FOOTREST ASSY, PILLION RH 1 -
2 DISCONTINUE
SUB: 43700B13H00N000		 FOOTREST ASSY, PILLION LH 1 -
3 DISCONTINUE
SUB: 43612B13H00N000		 .RUBBER 2 -
4 43632-45501-000
SUB: 43632B45501N000		 .STOPPER, RUBBER 2 Rp18.500
5 02112-0512A-000
SUB: 02112B0512BN000		 .SCREW, OUTER 2 Rp2.500
6 02112-0516A-000
SUB: 02112-0516B-000		 .SCREW, INNER 2 Rp5.500
7 09208-08016-000 PIN 2 Rp31.500
8 09440-05005-000
SUB: 09440B05005N000		 SPRING 2 Rp6.500
9 06111M07004-000
SUB: 06111-07004-000		 BALL 2 Rp3.000
10 43816-42F10-000 PLATE, RH 1 Rp39.000
11 43826-42F10-000
SUB: 43826B42F10N000		 PLATE, LH 1 Rp39.000
12 08332-1106A-000
SUB: 08332-1106B-000		 E RING 2 Rp8.500
13 DISCONTINUE
SUB: 43811B13H00N000		 BRACKET, PILLION RH 1 -
14 DISCONTINUE
SUB: 43821B13H00N000		 BRACKET, PILLION LH 1 -
15 01550-0820B-000
SUB: 01550B0820BN000		 BOLT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
