SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 HANDLE SWITCHFIG.29 FRAMEFIG.30 STANDFIG.31 FOOTRESTFIG.32 FUEL TANKFIG.33 FRAME COVERFIG.34 FRONT LEG SHIELDFIG.35 LOWERLEG SHIELDFIG.36 LEG SHIELD RACKFIG.37 LEG SHIELD COVERFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEAT ASSYFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 WHEEL FRONTFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHEEL

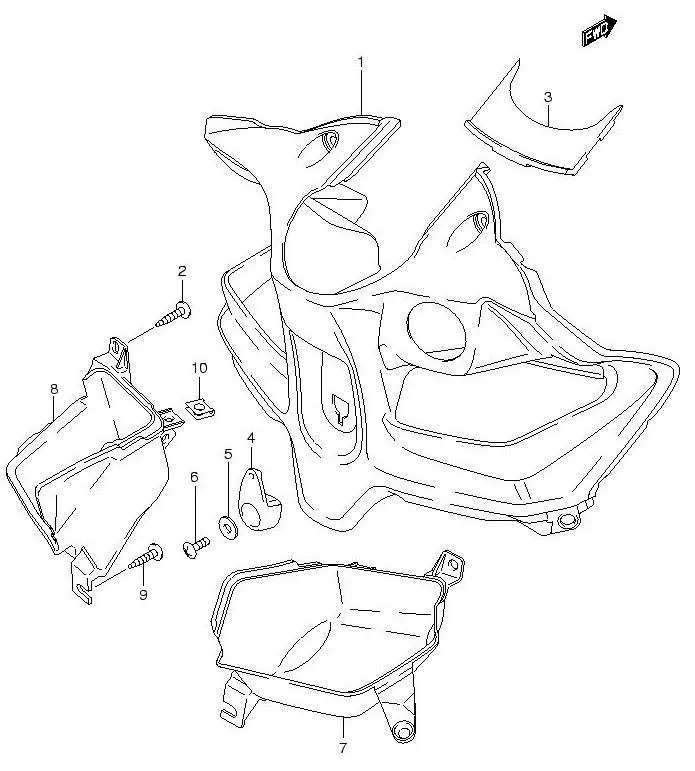

FIG.36 LEG SHIELD RACK

FIG.36 LEG SHIELD RACK
No No. Part Description Qty Price Per Pcs Remarks
1 92111-13H00-000
SUB: 92111B13H00N000		 RACK, LEG SHIELD 1 Rp74.500
2 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 8 Rp3.500
3 92113-13H00-000
SUB: 92113B13H00N000		 RACK, LEG UPPER 1 Rp12.000
4 92171-32G00-291
SUB: 92171B32G00N000		 HOOK 1 Rp15.500
5 09160-06079-000 WASHER 1 Rp10.500
6 02142-0612A-000
SUB: 02142-0612B-000		 SCREW 1 Rp4.000
7 92161-13H00-000
SUB: 92161B13H00N000		 RACK, INNER RH 1 Rp21.000
8 92162-13H00-000
SUB: 92162B13H00N000		 RACK, INNER LH 1 Rp21.000
9 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 6 Rp3.500
10 09148-05038-000
SUB: 09148B05038N000		 NUT 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
