SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 HANDLE SWITCHFIG.29 FRAMEFIG.30 STANDFIG.31 FOOTRESTFIG.32 FUEL TANKFIG.33 FRAME COVERFIG.34 FRONT LEG SHIELDFIG.35 LOWERLEG SHIELDFIG.36 LEG SHIELD RACKFIG.37 LEG SHIELD COVERFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEAT ASSYFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 WHEEL FRONTFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHEEL

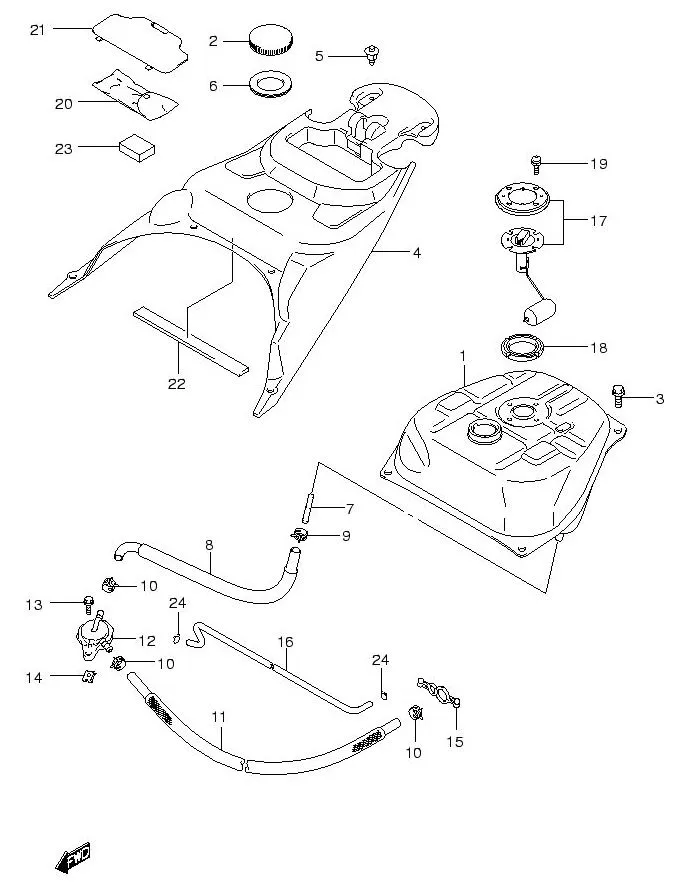

FIG.32 FUEL TANK

FIG.32 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 44110-13H20-000
SUB: 44110B13H20N000		 TANK, FUEL 1 Rp286.500
2 44210-35014AS01 CAP ASSY, FUEL 1 Rp21.500
3 01550B0612BN000 BOLT 4 Rp2.500
4 44271-13H00-000
SUB: 44271B13H00N000		 COVER, TANK 1 Rp85.500
5 09409-06314-5PK
SUB: 09409-06314-000		 CLIP (BLACK) 4 Rp3.500
6 44261-13H00-000
SUB: 44261B13H00N000		 RUBBER, INLET 1 Rp9.000
7 44322-27001-000 FILTER, FUEL 1 Rp16.500
8 DISCONTINUE
SUB: 44421B13H00N000		 HOSE, NO.1 1 -
9 09401-11413-000 CLIP, HOSE 1 Rp2.500
10 09401-09403-000
SUB: 09401B09403N000		 CLIP 3 Rp3.500
11 44422-13H00-000
SUB: 44422B13H00N000		 HOSE, FUEL NO.2 1 Rp58.500
12 44300-09G00-000 COCK ASSY, FUEL 1 Rp278.000
13 01550-0616B-000
SUB: 01550B0616BN000		 SCREW, COCK 1 Rp5.500
14 DISCONTINUE
SUB: 09148-06018-000		 NUT 1 -
15 DISCONTINUE
SUB: 44427B46G00N000		 CLIP 1 -
16 44425-13H00-000
SUB: 44425B13H00N000		 HOSE, VACUUM 1 Rp8.500
17 34810-13H00-000 GAUGE ASSY, FUEL LEVEL 1 Rp99.500
18 DISCONTINUE
SUB: 34825-02100-000		 GASKET 1 -
19 02112-0512A-000
SUB: 02112B0512BN000		 SCREW 4 Rp2.500
20 96510-46G01-000
SUB: 96510B46G00N000		 TOOL ASSY 1 Rp41.500
21 47433-13H10-000
SUB: 47433B13H10N000		 COVER, TOOL HOLDER 1 Rp24.000
22 44276-13H10-000 CUSHION 1 -
23 33652-38000-000
SUB: 33652-38000L000		 CUSHION, TOOL 1 Rp3.000
24 09401-06101-000 CLIP 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
