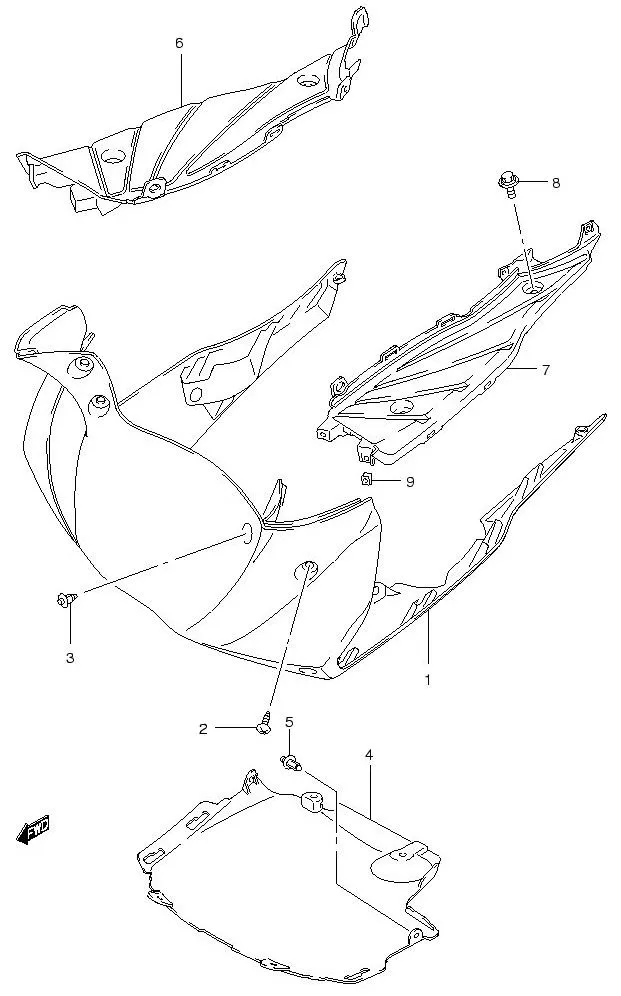

FIG.35 LOWERLEG SHIELD

FIG.35 LOWERLEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1-2 48171-13H00-X0G
SUB: 48171B13H00NX0G		 SHIELD LEG LOWER BRILLIANT WHITE 1 Rp126.000
1-10 48171-13H00-YVE
SUB: 48171B13H00NYVE		 SHIELD LEG LOWER MARINE BLUE 1 Rp125.500
1-9 48171-13H00-YTB
SUB: 48171B13H00NYTB		 SHIELD LEG LOWER SUMMER RED 1 Rp125.500
1-8 48171-13H00-X9C
SUB: 48171B13H00NX9C		 SHIELD LEG LOWER MAJESTIC GOLD 1 Rp125.500
1-7 48171-13H00-X6F
SUB: 48171B13H00NX6F		 SHIELD LEG LOWER MAX ORANGE 1 Rp125.500
1-6 DISCONTINUE
SUB: 48171B13H00NX2A		 SHIELD LEG LOWER MEDIUM BLUE PEARL 1 -
1-5 48171-13H00-X1J
SUB: 48171B13H00NX1J		 SHIELD LEG LOWER AUTUMN RED 1 Rp125.500
1-4 48171-13H00-X0N
SUB: 48171B13H00NX0N		 SHIELD LEG LOWER BLUE SHINE BLACK 1 Rp126.000
1-3 48171-13H00-X0H
SUB: 48171B13H00NX0H		 SHIELD LEG LOWER TITAN BLACK 1 Rp125.500
1-1 48171-13H00-334
SUB: 48171B13H00N334		 SHIELD LEG LOWER MEDIUM BLUE PEARL 1 Rp128.000
2 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 6 Rp3.500
3 09409-08308-000 CLIP (BLACK) 2 Rp12.000
4 48137-13H00-000
SUB: 48137B13H00N000		 SHIELD, LEG LOWER REAR 1 Rp29.500
5 09409-06314-5PK
SUB: 09409-06314-000		 CLIP (BLACK) 4 Rp3.500
6 48121-13H00-000
SUB: 48121B13H00N000		 FOOTBOARD, RH 1 Rp30.500
7 48122-13H00-000
SUB: 48122B13H00N000		 FOOTBOARD, LH 1 Rp30.500
8 09113-06008-000
SUB: 09113B06008N000		 BOLT 4 Rp7.000
9 09148-05038-000
SUB: 09148B05038N000		 NUT 8 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
