SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 HANDLE SWITCHFIG.29 FRAMEFIG.30 STANDFIG.31 FOOTRESTFIG.32 FUEL TANKFIG.33 FRAME COVERFIG.34 FRONT LEG SHIELDFIG.35 LOWERLEG SHIELDFIG.36 LEG SHIELD RACKFIG.37 LEG SHIELD COVERFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEAT ASSYFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 WHEEL FRONTFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHEEL

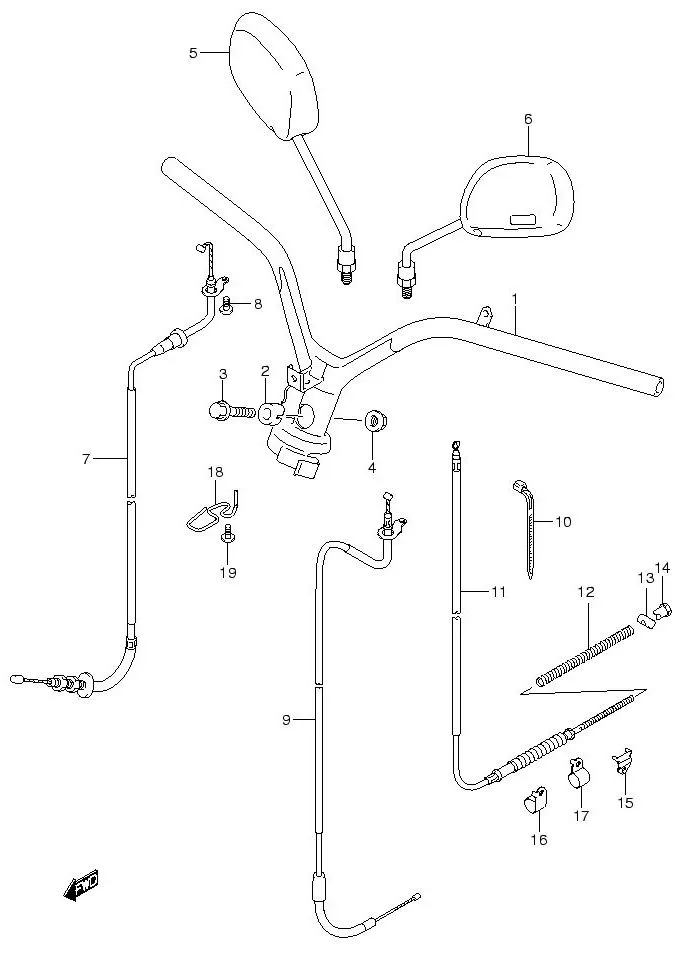

FIG.40 HANDLE BAR

FIG.40 HANDLE BAR
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 56110B13H00N000		 HANDLEBAR 1 -
2 51358-09G00-000
SUB: 51358B09G00N000		 STOPPER, HANDLE 1 Rp8.000
3 09103-10126-000
SUB: 09103B10126N000		 BOLT 1 Rp28.500
4 08319-3110A-000 NUT 1 Rp4.500
5 56500-09GD0-000
SUB: 56500B09GD0N000		 MIRROR ASSY, REAR VIEW RH 1 Rp84.500
6 56600-09GD0-000
SUB: 56600B09GD0N000		 MIRROR ASSY, REAR VIEW LH 1 Rp84.500
7 58300-13H20-000 CABLE ASSY, THROTTLE 1 Rp254.000
8 02112-0512A-000
SUB: 02112B0512BN000		 SCREW 1 Rp2.500
9 58410-13H00-000
SUB: 58410B13H00N000		 CABLE, STARTER 1 Rp70.500
10 09407-18402-000 CLAMP 1 Rp8.000
11 58510-13H00-000
SUB: 58510B13H00N000		 CABLE, REAR BRAKE 1 Rp127.000
12 58562-46G00-000
SUB: 58562B46G00N000		 SPRING 1 Rp4.000
13 09209-11002-000
SUB: 09209B11002N000		 PIN 1 Rp7.500
14 09150-06010-000 NUT 1 Rp4.500
15 DISCONTINUE
SUB: 58575B46G00N000		 PLATE, BRAKE CABLE 1 -
16 DISCONTINUE
SUB: 58577B13H00N000		 CLAMP, BRAKE CABLE FRONT 1 -
17 DISCONTINUE
SUB: 58577B46G10N000		 CLAMP, BRAKE CABLE REAR 1 -
18 DISCONTINUE
SUB: 58621B13H00N000		 GUIDE, CABLE 1 -
19 02112-0610B-000 SCREW 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
