SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 HANDLE SWITCHFIG.29 FRAMEFIG.30 STANDFIG.31 FOOTRESTFIG.32 FUEL TANKFIG.33 FRAME COVERFIG.34 FRONT LEG SHIELDFIG.35 LOWERLEG SHIELDFIG.36 LEG SHIELD RACKFIG.37 LEG SHIELD COVERFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEAT ASSYFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 WHEEL FRONTFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHEEL

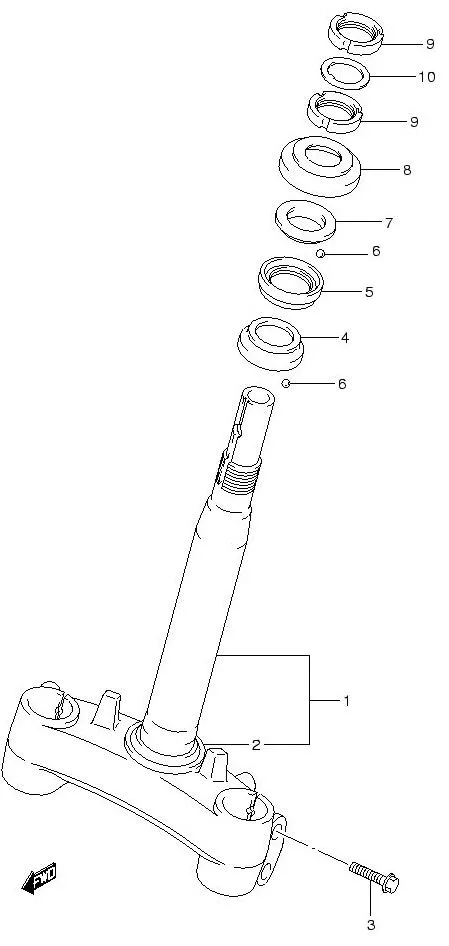

FIG.48 STEERING STEM

FIG.48 STEERING STEM
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 51410B13H10N000		 BRACKEKT, UNDER 1 -
2 51622-41H00-000
SUB: 51622B35400N000		 .RACE, STEERING OUTER LOWER 1 Rp56.500
3 DISCONTINUE
SUB: 51451B42G00N000		 BOLT 4 -
4 51612-09G00-000
SUB: 51612B09G00N000		 RACE, STEERING, INNER LOWER 1 Rp36.000
5 51611-09G00-000
SUB: 51611B09G10N000		 RACE, STEERING INNER UPPER 1 Rp29.000
6 06111-06004-000
SUB: 06111B06003N000		 BALL 49 Rp1.000
7 51621-07H00-000
SUB: 51621B07H00N000		 RACE, STEERING, OUTER UPPER 1 Rp22.000
8 51643-06001-000
SUB: 51643-06001L000		 SEAL, DUST UPPER 1 Rp3.000
9 51631-05000-000
SUB: 51631B05000N000		 NUT, STEERING STEM 2 Rp20.000
10 09166-24001-000 WASHER 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
