SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 HANDLE SWITCHFIG.29 FRAMEFIG.30 STANDFIG.31 FOOTRESTFIG.32 FUEL TANKFIG.33 FRAME COVERFIG.34 FRONT LEG SHIELDFIG.35 LOWERLEG SHIELDFIG.36 LEG SHIELD RACKFIG.37 LEG SHIELD COVERFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEAT ASSYFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 WHEEL FRONTFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHEEL

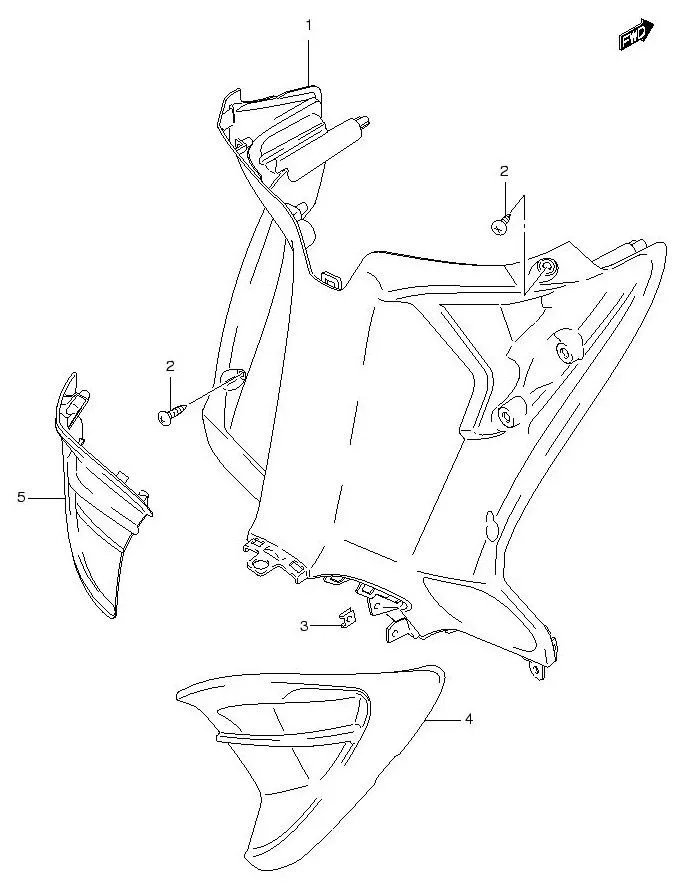

FIG.37 LEG SHIELD COVER

FIG.37 LEG SHIELD COVER
No No. Part Description Qty Price Per Pcs Remarks
1-1 92112-13H01-X4D
SUB: 92112B13H01NX4D		 COVER LEG SHIELD DARK GREY MET 1 Rp124.500
1-2 92112-13H01-X0N
SUB: 92112B13H01NX0N		 COVER LEG SHIELD BLUE SHINE BLACK 1 Rp119.000
1-3 92112-13H01-X0H
SUB: 92112B13H01NX0H		 COVER LEG SHIELD TITAN BLACK 1 Rp119.000
2 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 14 Rp3.500
3 09148-05038-000
SUB: 09148B05038N000		 NUT 6 Rp4.000
4 92117-13H00-000
SUB: 92117B13H00N000		 COVER, FRONT BOX INNER RH 1 Rp30.500
5 92118-13H00-000
SUB: 92118B13H00N000		 COVER, FRONT BOX INNER LH 1 Rp30.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
