SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 HANDLE SWITCHFIG.29 FRAMEFIG.30 STANDFIG.31 FOOTRESTFIG.32 FUEL TANKFIG.33 FRAME COVERFIG.34 FRONT LEG SHIELDFIG.35 LOWERLEG SHIELDFIG.36 LEG SHIELD RACKFIG.37 LEG SHIELD COVERFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEAT ASSYFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 WHEEL FRONTFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHEEL

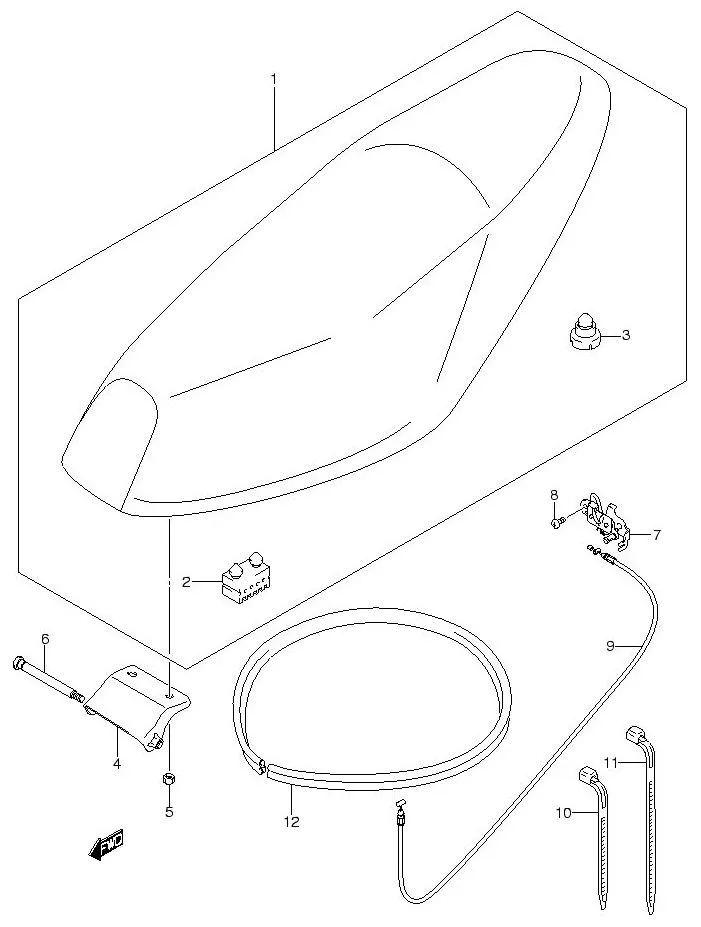

FIG.45 SEAT ASSY

FIG.45 SEAT ASSY
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 45100B13H10N000		 SEAT ASSY 1 -
2 45149-09G00-000
SUB: 45149B09G00N000		 .CUSHION, SEAT MOUNT FR 2 Rp9.500
3 45148-13H10-000
SUB: 45148B13H10N000		 .CUSHION, SEAT MOUNT CTR 2 Rp7.500
4 45250-13H00-000 BRACKET, SEAT HINGE 1 Rp20.000
5 08316-1006A-000
SUB: 08316B1006BN000		 NUT, SEAT HINGE 2 Rp2.000
6 DISCONTINUE
SUB: 45231B07H00N000		 BOLT, SEAT HINGE 1 -
7 45700-09G30-000
SUB: 45700-09G10-000		 BRACKET, STRIKER SUPPORT 1 Rp33.500
8 02112-0610B-000 SCREW, STRIKER SUPPORT 2 Rp5.500
9 45280-13H11-000
SUB: 45280B13H10N000		 CABLE, SEAT LOCK 1 Rp65.500
10 09407-18402-000 CLAMP 4 Rp8.000
11 DISCONTINUE
SUB: 09407B25401N000		 CLAMP 2 -
12 45211-13H00-000
SUB: 45211B13H00N000		 MOLDING, SEAT 1 Rp30.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
