SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 HANDLE SWITCHFIG.29 FRAMEFIG.30 STANDFIG.31 FOOTRESTFIG.32 FUEL TANKFIG.33 FRAME COVERFIG.34 FRONT LEG SHIELDFIG.35 LOWERLEG SHIELDFIG.36 LEG SHIELD RACKFIG.37 LEG SHIELD COVERFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEAT ASSYFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 WHEEL FRONTFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHEEL

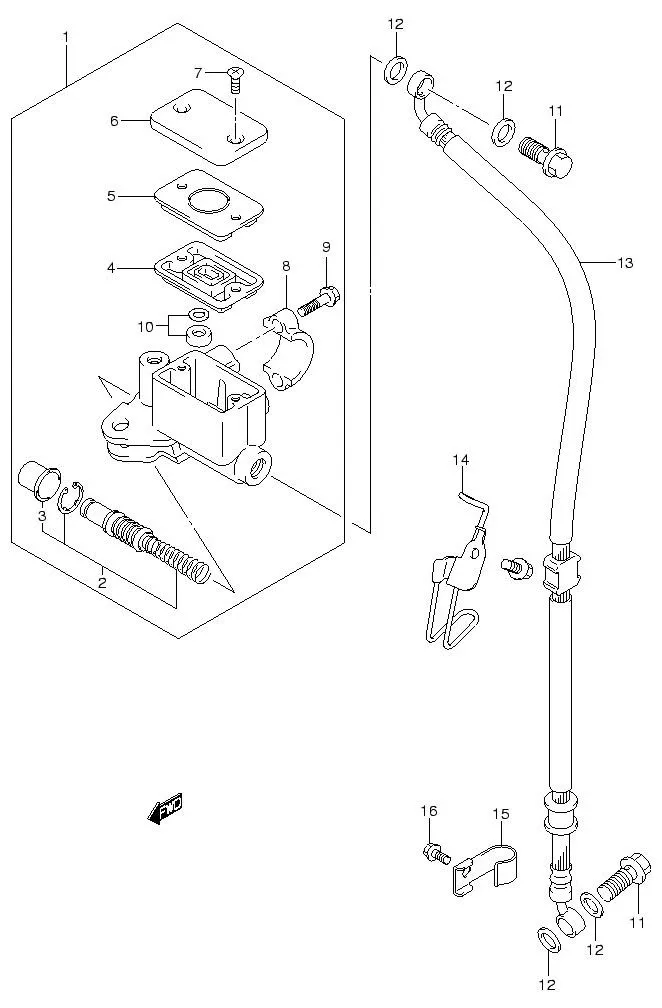

FIG.51 FRONT MASTER CYLINDER

FIG.51 FRONT MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59600-21D50-000
SUB: 59600B21D50N000		 CYLINDER ASSY, FRONT MASTER 1 Rp897.000
2 59611-36500-000
SUB: 59611B36500N000		 .PISTON/CUP SET 1 Rp75.500
3 59666-44300-000
SUB: 59666B44300N000		 ..BOOT 1 Rp16.000
4 59667-44B00-000
SUB: 59667-44B00L000		 .DIAPHRAGM 1 Rp13.000
5 59668-21D20-000
SUB: 59668B21D20N000		 .PLATE 1 Rp3.000
6 59669-21D20-000
SUB: 59669B21D20N000		 .CAP 1 Rp40.000
7 69689-49300-000
SUB: 69689-49300L000		 .SCREW 2 Rp3.000
8 59671-36500-000
SUB: 59671B36500N000		 .HOLDER 1 Rp23.000
9 59675-02FA0-000
SUB: 59675B02FA0N000		 .BOLT 2 Rp9.000
10 59664-32F00-000
SUB: 59664B32F00N000		 .PROTECTOR 1 Rp20.500
11 09360-10062-000
SUB: 09360B10062N000		 BOLT, BRAKE FLUID 2 Rp13.000
12 09168-10033-000
SUB: 09168B10033N000		 WASHER, BRAKE FLUID 4 Rp8.500
13 59480-13H30-000
SUB: 59480B13H00N000		 HOSE, FRONT BRAKE 1 Rp140.000
14 59260-13H10-000
SUB: 59260B13H00N000		 CLAMP, FR BRAKE HOSE NO.1 1 Rp16.000
15 DISCONTINUE
SUB: 59268B13H00N000		 CLAMP, FR BRAKE HOSE NO.2 1 -
16 01550-0610B-000
SUB: 01550B0610BN000		 BOLT, BRAKE HOSE CLAMP 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
