SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 HANDLE SWITCHFIG.29 FRAMEFIG.30 STANDFIG.31 FOOTRESTFIG.32 FUEL TANKFIG.33 FRAME COVERFIG.34 FRONT LEG SHIELDFIG.35 LOWERLEG SHIELDFIG.36 LEG SHIELD RACKFIG.37 LEG SHIELD COVERFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEAT ASSYFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 WHEEL FRONTFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHEEL

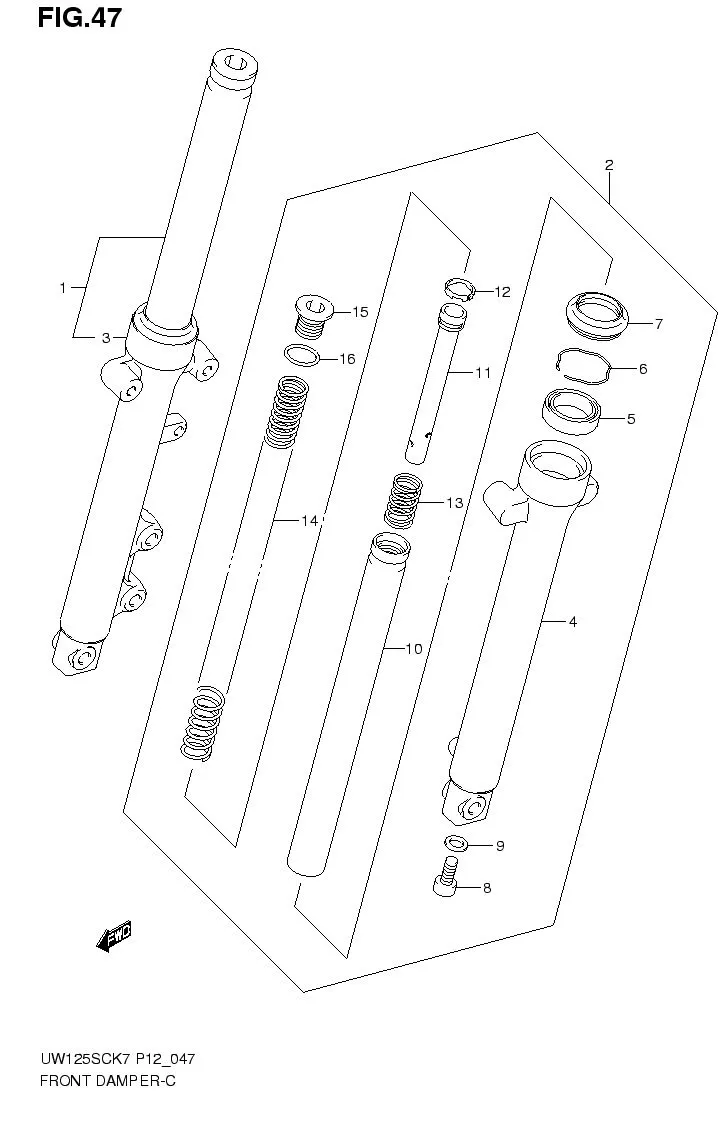

FIG.47 FRONT DAMPER

FIG.47 FRONT DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1-2 51103-13H10-019
SUB: 51103B13H10N019		 DAMPER ASSY FR FORK RH SOLID BLACK 1 Rp572.000
1-3 51103-13H10-291
SUB: 51103B13H10N291		 DAMPER ASSY FR FORK RH BLACK 50% GLOSS 1 Rp572.000
1-1 51103-13H10-X0J
SUB: 51103B13H10NX0J		 DAMPER ASSY FR FORK RH NR MATT BLACK 1 Rp582.000
2-1 51104-13H10-X0J
SUB: 51104B13H10NX0J		 DAMPER ASSY FR FORK LH NR MATT BLACK 1 Rp582.000
2-2 DISCONTINUE
SUB: 51104B13H10N019		 DAMPER ASSY FR FORK LH SOLID BLACK 1 -
2-3 51103-13H10-291
SUB: 51103B13H10N291		 DAMPER ASSY FR FORK LH BLACK 50% GLOSS 1 Rp572.000
3-1 51130-13H10-X0J
SUB: 51130B13H10NX0J		 .TUBE, OUTER R NR MATT BLACK 1 Rp291.000
3-2 DISCONTINUE
SUB: 51130B13H10N019		 .TUBE, OUTER R SOLID BLACK 1 -
3-3 DISCONTINUE
SUB: 51130B13H10N291		 .TUBE, OUTER R BLACK 50% GLOSS 1 -
4-1 51140-13H10-X0J
SUB: 51140B13H10NX0J		 .TUBE, OUTER L NR MATT BLACK 1 Rp291.000
4-2 DISCONTINUE
SUB: 51140B13H10N019		 .TUBE, OUTER L SOLID BLACK 1 -
4-3 DISCONTINUE
SUB: 51140B13H10N291		 .TUBE, OUTER L BLACK 50% GLOSS 1 -
5 51153-23F00-000
SUB: 51153-23F00L000		 .SEAL, OIL 2 Rp27.000
6 51156-43010-000
SUB: 51156B43010N000		 .RING, SNAP 2 Rp6.000
7 51173-23F00-000
SUB: 51173-23F00L000		 .SEAL, DUST 2 Rp41.500
8 51147-16510-000
SUB: 51147-16510L000		 .BOLT 2 Rp10.500
9 51148-41310-000
SUB: 51148B41310N000		 .GASKET 2 Rp8.500
10 51110-13H10-000
SUB: 51110B13H10N000		 .TUBE, INNER 2 Rp326.500
11 51194-13H10-000
SUB: 51194B13H10N000		 .CYLINDER 2 Rp45.000
12 51196-39140-000
SUB: 51196B39140N000		 .RING, PISTON 2 Rp7.500
13 51177-35400L000 .SPRING, REBOUNE 2 Rp9.500
14 51171-13H10-000
SUB: 51171B13H10N000		 .SPRING, FRONT 2 Rp27.500
15 DISCONTINUE
SUB: 51351B09G10N000		 .CAP 2 -
16 51181-37B00-000
SUB: 09280B17002N000		 .O RING 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
