SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 HANDLE SWITCHFIG.29 FRAMEFIG.30 STANDFIG.31 FOOTRESTFIG.32 FUEL TANKFIG.33 FRAME COVERFIG.34 FRONT LEG SHIELDFIG.35 LOWERLEG SHIELDFIG.36 LEG SHIELD RACKFIG.37 LEG SHIELD COVERFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEAT ASSYFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 WHEEL FRONTFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHEEL

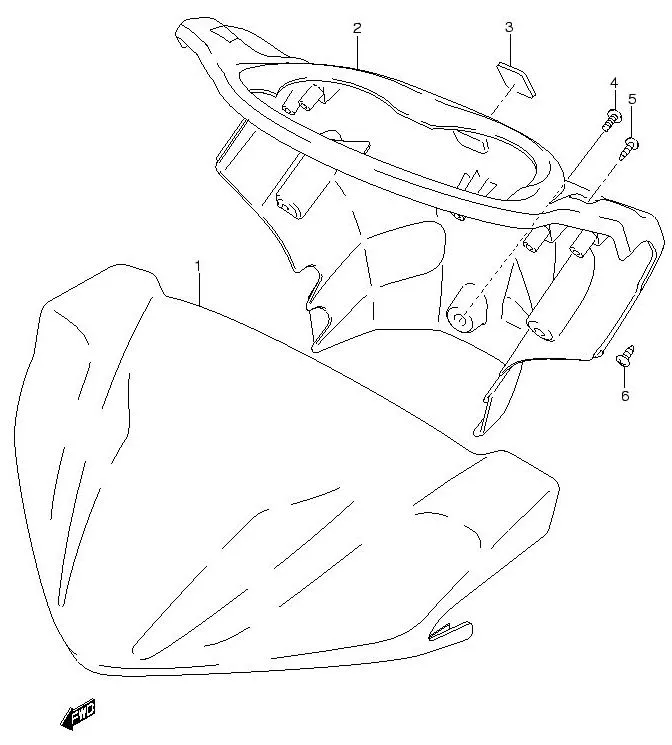

FIG.41 HANDLE COVER

FIG.41 HANDLE COVER
No No. Part Description Qty Price Per Pcs Remarks
1-1 56311-13H00-X0H
SUB: 56311B13H00NX0H		 COVER HANDLE FR TITAN BLACK 1 Rp89.500
1-2 56311-13H00-X0N
SUB: 56311B13H00NX0N		 COVER HANDLE FR BLUE SHINE BLACK 1 Rp97.000
2 56321-13H00-000
SUB: 56321B13H00N000		 COVER, HANDLE REAR 1 Rp74.500
3 DISCONTINUE
SUB: 68281B25G00N000		 EMBLEM 1 -
4 02142-0512B-000 SCREW 1 Rp5.500
5 03511-0512B-000 SCREW, UPPER 2 Rp2.500
6 03541-0416B-000 SCREW, SIDE 4 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
