SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 HANDLE SWITCHFIG.29 FRAMEFIG.30 STANDFIG.31 FOOTRESTFIG.32 FUEL TANKFIG.33 FRAME COVERFIG.34 FRONT LEG SHIELDFIG.35 LOWERLEG SHIELDFIG.36 LEG SHIELD RACKFIG.37 LEG SHIELD COVERFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEAT ASSYFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 WHEEL FRONTFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHEEL

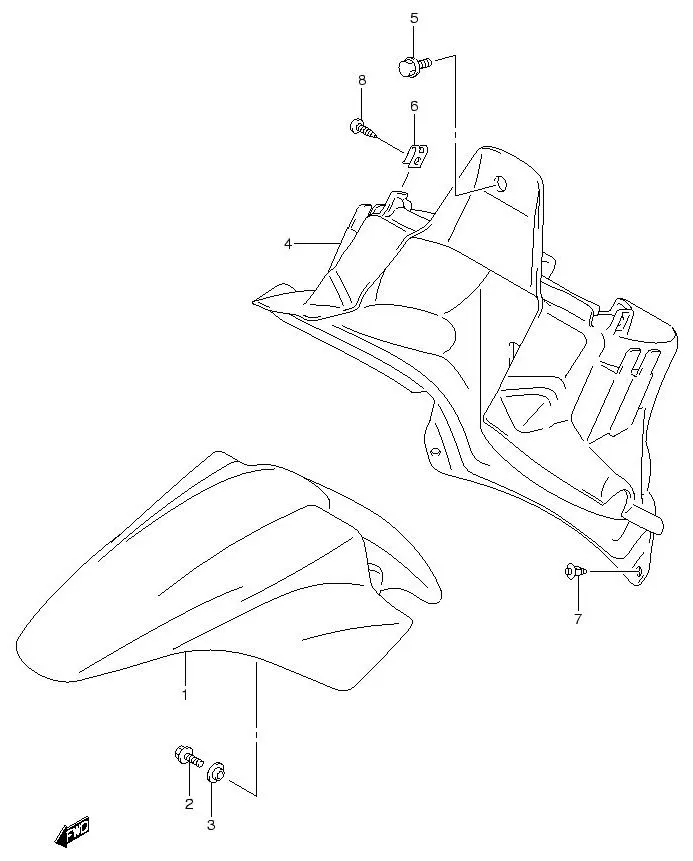

FIG.39 FRONT FENDER

FIG.39 FRONT FENDER
No No. Part Description Qty Price Per Pcs Remarks
1-2 53111-13H00-X0H
SUB: 53111B13H00NX0H		 FENDER FR TITAN BLACK 1 Rp196.000
1-11 53111-13H00-YVE
SUB: 53111B13H00NYVE		 FENDER FR MARINE BLUE 1 Rp196.000
1-10 53111-13H00-YUJ
SUB: 53111B13H00NYUJ		 FENDER FR MACHO BRIGHT BLUE 1 Rp196.000
1-9 53111-13H00-YTB
SUB: 53111B13H00NYTB		 FENDER FR SUMMER RED 1 Rp196.000
1-8 53111-13H00-X9C
SUB: 53111B13H00NX9C		 FENDER FR MAJESTIC GOLD 1 Rp198.500
1-7 53111-13H00-X8D
SUB: 53111B13H00NX8D		 FENDER FR ICE SILVER MET 1 Rp196.000
1-6 53111-13H00-X6G
SUB: 53111B13H00NX6G		 FENDER FR MIDNIGHT ORANGE 1 Rp227.000
1-5 53111-13H00-X6F
SUB: 53111B13H00NX6F		 FENDER FR MAX ORANGE MET 1 Rp198.500
1-4 53111-13H00-X1J
SUB: 53111B13H00NX1J		 FENDER FR AUTUMN RED MET 1 Rp196.000
1-3 53111-13H00-X0N
SUB: 53111B13H00NX0N		 FENDER FR BLUE SHINE BLACK 1 Rp196.000
1-1 53111-13H00-X0G
SUB: 53111B13H00NX0G		 FENDER FR BRILLIANT WHITE 1 Rp196.000
2 01550-0616B-000 BOLT 4 Rp5.500
3 09169-06071-000 WASHER 4 Rp7.500
4 53182-13H00-000
SUB: 53182B13H00N000		 FENDER, FIXED FRONT 1 Rp106.000
5 09111-06107-000
SUB: 63161B43E00N000		 BOLT, FRONT 1 Rp4.000
6 09148-05038-000
SUB: 09148B05038N000		 NUT 2 Rp4.000
7 09409-06314-5PK
SUB: 09409-06314-000		 CLIP (BLACK) 4 Rp3.500
8 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
