SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 HANDLE SWITCHFIG.29 FRAMEFIG.30 STANDFIG.31 FOOTRESTFIG.32 FUEL TANKFIG.33 FRAME COVERFIG.34 FRONT LEG SHIELDFIG.35 LOWERLEG SHIELDFIG.36 LEG SHIELD RACKFIG.37 LEG SHIELD COVERFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEAT ASSYFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 WHEEL FRONTFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHEEL

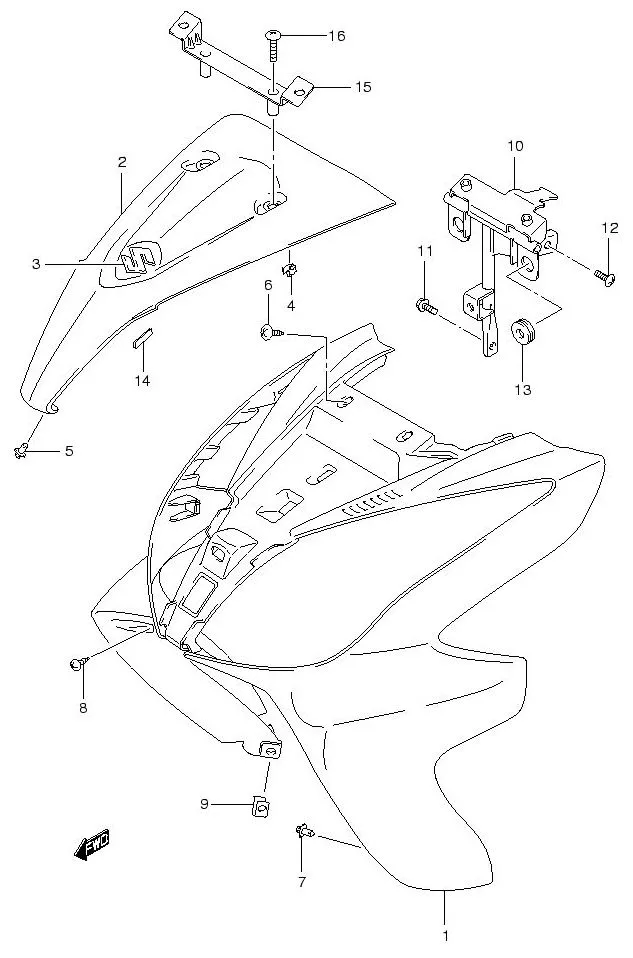

FIG.34 FRONT LEG SHIELD

FIG.34 FRONT LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1-2 48111-13H20-X0H
SUB: 48111B13H20NX0H		 SHIELD LEG FR TITAN BLACK 1 Rp192.000
1-3 48111-13H20-X0N
SUB: 48111B13H20NX0N		 SHIELD LEG FR BLUE SHINE BLACK 1 Rp192.000
1-4 48111-13H20-X1J
SUB: 48111B13H20NX1J		 SHIELD LEG FR AUTUMN RED MET 1 Rp239.500
1-5 48111-13H20-X6F
SUB: 48111B13H20NX6F		 SHIELD LEG FR MAX ORANGE MET 1 Rp199.500
1-6 48111-13H20-X6G
SUB: 48111B13H20NX6G		 SHIELD LEG FR MIDNIGHT ORANGE 1 Rp200.500
1-7 48111-13H20-X8D
SUB: 48111B13H20NX8D		 SHIELD LEG FR ICE SILVER MET 1 Rp200.500
1-8 48111-13H20-X9C
SUB: 48111B13H20NX9C		 SHIELD LEG FR MAJESTIC GOLD 1 Rp199.500
1-9 48111-13H20-YTB
SUB: 48111B13H20NYTB		 SHIELD LEG FR SUMMER RED 1 Rp200.500
1-10 48111-13H20-YUJ
SUB: 48111B13H20NYUJ		 SHIELD LEG FR MACHO BRIGHT BLUE 1 Rp192.000
1-11 48111-13H20-YVE
SUB: 48111B13H20NYVE		 SHIELD LEG FR MARINE BLUE 1 Rp199.500
1-1 48111-13H20-X0G
SUB: 48111B13H20NX0G		 SHIELD LEG FR BRILLIANT WHITE 1 Rp192.000
2-1 48131-13H20-X0H
SUB: 48131B13H20NX0H		 COVER FRONT LEG SHIELD TITAN BLACK 1 Rp72.000
2-2 48131-13H20-X0N
SUB: 48131B13H20NX0N		 COVER FRONT LEG SHIELD BLUE SHINE BLACK 1 Rp72.000
3 68211-16H00-000
SUB: 68211B16H00N000		 EMBLEM 1 Rp13.000
4 09409-08326-000
SUB: 09409B08326N000		 CLIP 3 Rp8.000
5 09409-08308-000 CLIP, LOWER LH (BLACK) 1 Rp12.000
6 09136-06056-000 SCREW, FRONT LEG 2 Rp14.500
7 09409-06314-5PK
SUB: 09409-06314-000		 CLIP (BLACK) 2 Rp3.500
8 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 4 Rp3.500
9 09148-05038-000
SUB: 09148B05038N000		 NUT 6 Rp4.000
10 DISCONTINUE
SUB: 48150B13H20N000		 BRACE, LEG SHIELD 1 -
11 01550B0612BN000 BOLT, LOWER 1 Rp2.500
12 02142-0612A-000
SUB: 02142B0612BN000		 SCREW, UPPER 1 Rp4.000
13 48169-12JA0-000
SUB: 09320-08018-000		 CUSHION 2 Rp15.000
14 48115-13H00-000 TAPE, SHIELD 2 -
15 DISCONTINUE
SUB: 48190B13H00N000		 PLATE, LICENSE 1 -
16 02142-0645B-000
SUB: 02142B0645BN000		 SCREW, LICENSE 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
