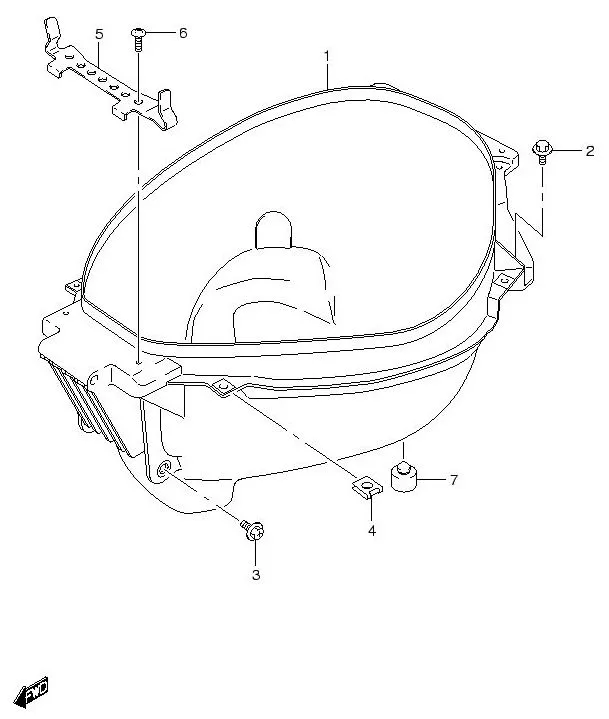

FIG.38 HELMET BOX

FIG.38 HELMET BOX
No No. Part Description Qty Price Per Pcs Remarks
1 92211-13H00-000
SUB: 92211B13H00N000		 BOX, HELMET 1 Rp215.000
2 09111-06107-000
SUB: 63161B43E00N000		 BOLT 2 Rp4.000
3 09116-06168-000
SUB: 09116-06001-000		 BOLT, LOWER 2 Rp15.000
4 09148-05038-000
SUB: 09148B05038N000		 NUT 4 Rp4.000
5 95721-13H00-000
SUB: 95721B13H00N000		 HOLDER, HELMET 1 Rp27.000
6 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 2 Rp3.500
7 92213-13H00-000
SUB: 92213B13H00N000		 CUSHION 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
