  5. FIG. 18 TRANSMISSION (MODEL K3/K6)

Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 18A - TRANSMISSION (MODEL K9)FIG. 19 GEAR SHIFTINGFIG. 20 KICK STARTERFIG. 20 KICK STARTER (MODEL K9)FIG. 1 CYLINDER HEAD COVERFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCH (FU150SCD)FIG. 8 CRANK BALANCERFIG. 9 CAM SHAFT/VALVEFIG. 10 CAM CHAINFIG. 11 CARBURETORFIG. 12 AIR CLEANERFIG. 13 MUFFLER (MODEL K3K6)FIG. 13A MUFFLER (MODEL K9)FIG. 14 OIL PUMPFIG. 15 OIL COOLERFIG. 16 2ND AIRFIG. 17 CLUTCHFIG. 18 TRANSMISSION (MODEL K3/K6)

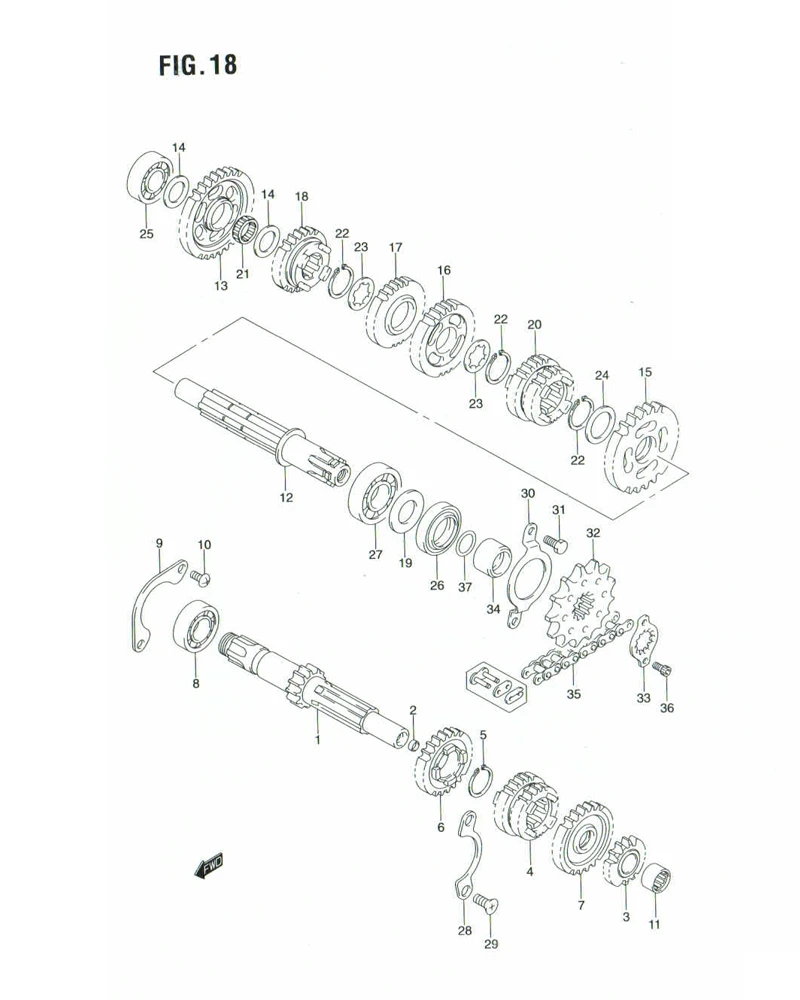

FIG. 18 TRANSMISSION (MODEL K3/K6)

FIG. 18 TRANSMISSION (MODEL K3/K6)
No No. Part Description Qty Price Per Pcs Remarks
1 24121-25G11-000
SUB: 24121-25G00-000		 COUNTERSHAFT (NT:12) 1 Rp157.000
2 24125-25G00-000
SUB: 24125B25G00N000		 PLUG 2 Rp4.000
3 24221-25G10-000
SUB: 24221-25G00-000		 GEAR, 2ND DRIVE (NT:14) 1 Rp63.500
4 24231-25G10-000
SUB: 24231-25G00-000		 GEAR 3RD/4TH (NT:19/21) 1 Rp105.500
5 09380-20009-000 CIRCLIP, 5TH 1 Rp10.000
6 24251-25G00-000 GEAR, 5TH DRIVE (NT:23) 1 Rp168.000
7 24261-25G20-000
SUB: 24261-25G00-000		 GEAR 6TH DRIVE (NT:25) 1 Rp74.500
8 09262-20L02-000
SUB: 09262B20019N000		 BEARING, COUNTER SHAFT RH 1 Rp75.500
9 24741-12B00-000
SUB: 24741B12B00N000		 RETAINER, COUNTER BEARING 1 Rp14.500
10 02112-0612A-000
SUB: 02112B06123N000		 SCREW 2 Rp3.500
11 08123-60020-000
SUB: 08123B60020N000		 BEARING, COUNTERSHAFT LH 1 Rp34.000
12 24130-25G20-000
SUB: 24130-25G00-000		 SHAFT, DRIVE 1 Rp506.000
13 24311-25G10-000
SUB: 24311-25G00-000		 GEAR, 1ST DRIVEN (NT:33) 1 Rp78.500
14 08211-15251-000
SUB: 08211B15251N000		 WASHER, 1ST DRIVEN LH/RH 2 Rp4.500
15 24321-25G20-000
SUB: 24321-25G00-000		 GEAR, 2ND DRIVEN (NT:25) 1 Rp79.500
16 24331-25G10-000
SUB: 24331-25G00-000		 GEAR, 3RD DRIVEN (NT:26) 1 Rp77.500
17 24341-25G10-000
SUB: 24341-25G00-000		 GEAR, 4TH DRIVEN (NT:23) 1 Rp76.500
18 24351-25G10-000
SUB: 24351-25G00-000		 GEAR, 5TH DRIVEN (NT:21) 1 Rp97.500
19 24359-25G00-000 WASHER, OIL SEALING 1 -
20 24361-25G10-000
SUB: 24361-25G00-000		 GEAR, 6TH DRIVEN (NT:20) 1 Rp87.500
21 08113-62020-000
SUB: 08113B62020N000		 BEARING, DRIVE SHAFT, RH 1 Rp30.500
22 09380-20009-000 CIRCLIP, 2ND/3RD/4TH DRIVEN 3 Rp10.000
23 09167-20011-000
SUB: 09167B20011N000		 WASHER, 3RD/4TH DRIVEN 2 Rp7.500
24 09181-20167-000
SUB: 09181B20167N000		 WASHER 2ND DRIVEN 1 Rp2.500
25 09262-15027-000
SUB: 09262-15023-000		 BEARING, 1ST DRIVEN 1 Rp167.000
26 09283-27010-000 OIL SEAL (27X40X6) 1 Rp57.500
27 09262-20L02-000
SUB: 09262B20019N000		 BEARING, DRIVE SHAFT LH 1 Rp75.500
28 DISCONTINUE
SUB: 24741-05200-000		 RETAINER, DRIVE SHAFT 1 -
29 02122-0612A-000
SUB: 02122-06123-000		 SCREW 2 Rp3.500
30 24751-05210-000
SUB: 24751B05210N000		 RETAINER, DRIVE SHAFT 1 Rp8.500
31 01500-0610A-000
SUB: 01500-06103-000		 BOLT 2 Rp6.500
32 27511-25G20-000
SUB: 27511B25G00N000		 SPROCKET, ENGINE (NT:14) 1 Rp41.000
33 27512-25G00-000
SUB: 27512B25G00N000		 PLATE, ENGINE SPROCKET 1 Rp8.500
34 27531-25G00-000
SUB: 27531B25G00N000		 SPACER, ENGINE SPROCKET 1 Rp18.500
35 27600-36020-120 CHAIN ASSY (DID428DS, 120LE) 1 Rp265.000
36 07130-0610B-000
SUB: 07130-06103-000		 BOLT, SPROCKET PLATE 1 Rp6.500
37 09280-19005-000
SUB: 09280B19005N000		 O RING (D:2.4,ID:19.0) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
