Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 18A - TRANSMISSION (MODEL K9)FIG. 19 GEAR SHIFTINGFIG. 20 KICK STARTERFIG. 20 KICK STARTER (MODEL K9)FIG. 1 CYLINDER HEAD COVERFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCH (FU150SCD)FIG. 8 CRANK BALANCERFIG. 9 CAM SHAFT/VALVEFIG. 10 CAM CHAINFIG. 11 CARBURETORFIG. 12 AIR CLEANERFIG. 13 MUFFLER (MODEL K3K6)FIG. 13A MUFFLER (MODEL K9)FIG. 14 OIL PUMPFIG. 15 OIL COOLERFIG. 16 2ND AIRFIG. 17 CLUTCHFIG. 18 TRANSMISSION (MODEL K3/K6)

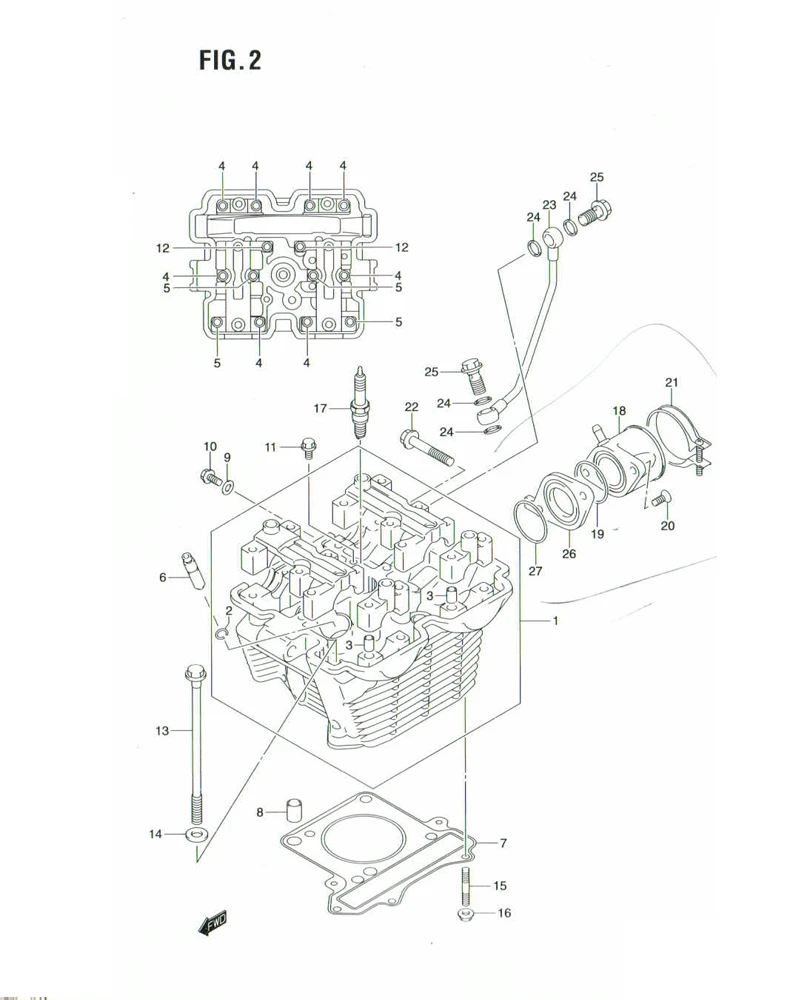

FIG. 2 CYLINDER HEAD

FIG. 2 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11100-25G50-000
SUB: 11100-25G00-0T0		 HEAD ASSY, CYLINDER 1 Rp1.196.500
2 09381B0004N-000 .SNAP RING 4 -
3 09206-08001-000 .PIN (6.2X8X11) 8 Rp5.500
4 09103-06132-000 .BOLT (6X41) 8 Rp3.500
5 09103-06108-000 .BOLT (6X35) 4 Rp12.000
6 11115-33D71-000 GUIDE, VALVE (OS:0.3) 4 Rp214.000
7 11141-25G10-000
SUB: 11141B25G10N000		 GASKET, CYLINDER HEAD 1 Rp77.000
8 04211-11169-000
SUB: 04211B11169N000		 PIN 2 Rp2.000
9 09168-06004-000
SUB: 09168B06004N000		 GASKET (6.2X11X1.2) 1 Rp2.500
10 01550B0612BN000 BOLT 1 Rp2.500
11 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
12 09103-06108-000 BOLT (6X35) 2 Rp12.000
13 09103-08305-000 BOLT (8X140) 4 Rp70.500
14 09168-08021-000
SUB: 09168B08021N000		 GASKET (8.5X17X2.3) 4 Rp5.000
15 01421-0625B-000
SUB: 01421B0625BN000		 BOLT 3 Rp7.000
16 08316-1006A-000
SUB: 08316B1006BN000		 NUT 3 Rp2.000
17-1 09482-00456-000
SUB: 09482B00456N000		 SPARK PLUG (NGK,CR8E) 1 Rp26.000
17-2 09482-00457-000
SUB: 09482B00457N000		 SPARK PLUG (DENSO,U24ESR-N) 1 Rp21.500
18 13110-25G00-000 PIPE ASSY, INTAKE 1 Rp113.500
19 09280-35001-000
SUB: 09280B35001N000		 O RING (D:1.9,ID:34.6) 1 Rp2.500
20-1 02112-0616B-000
SUB: 02112B0616BN000		 SCREW 2 Rp6.500
20-2 02112-0620A-000
SUB: 02112B0620BN000		 SCREW 2 Rp4.000
21-1 09402-44208-000
SUB: 09402B44208N000		 CLAMP 1 Rp8.000
21-2 DISCONTINUE
SUB: 13170-46G00-000		 CLAMP 1 -
22 09103-08289-000
SUB: 09103B08289N000		 BOLT (8X50) 1 Rp12.500
23 DISCONTINUE
SUB: 11280-47E00T000		 PIPE, HEAD OIL 1 -
24 09168-10012-000 GASKET 4 Rp13.000
25 09360-10047-000 UNION BOLT 2 Rp7.500
26 13128-25G00-000 INSULATOR 1 Rp52.000
27 09280-35001-000
SUB: 09280B35001N000		 0 RING (D:1.9,ID:3434.6) 1 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
