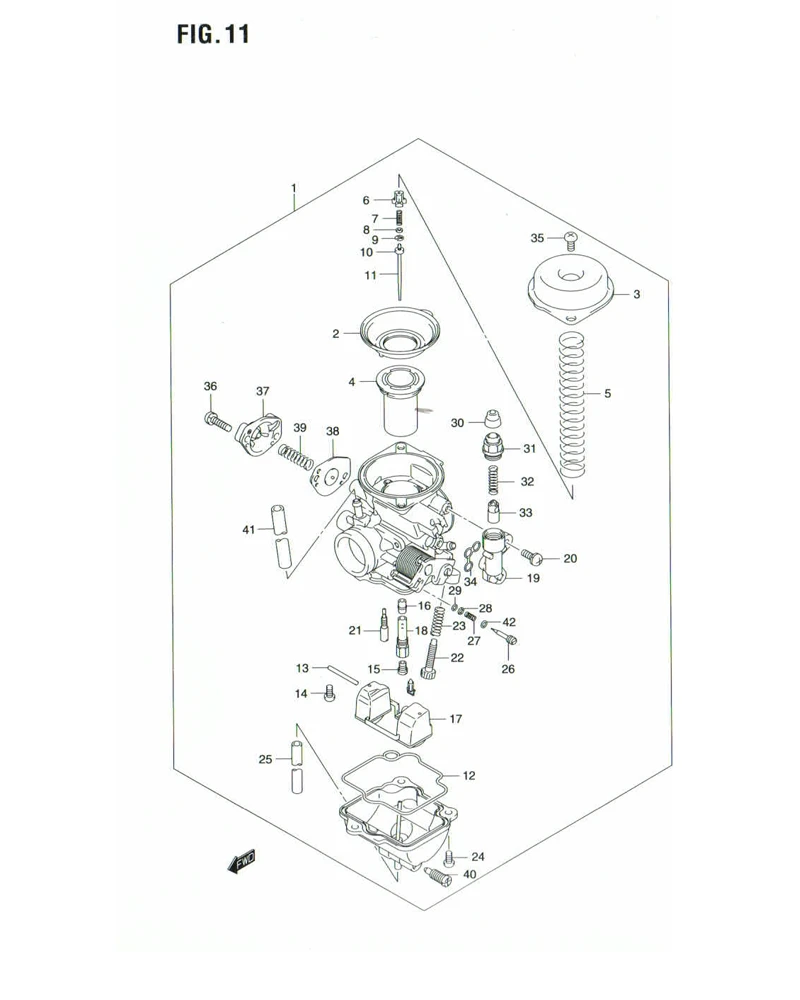

FIG. 11 CARBURETOR

FIG. 11 CARBURETOR
No No. Part Description Qty Price Per Pcs Remarks
1-2 13200-25G20-000
SUB: 13200B25G20N000		 CARBURETOR ASSY 1 Rp1.059.000
1-1 13200-25G11-000
SUB: 13200A25G11U000		 CARBURETOR ASSY 1 Rp2.124.500
2 13507-25G00-000
SUB: 13507B25G00N000		 .DIAPHRAGM 1 Rp24.500
3-1 13502-46G10-000
SUB: 13502-25G00-000		 .DIAPHRAGM COVER 1 Rp32.500
3-2 13502-46G10-000
SUB: 13502B46G10N000		 .DIAPHRAGM COVER 1 Rp32.500
4 13500-25G00-000 .PISTON VALVE ASSY 1 Rp143.000
5 13503-25G00-000
SUB: 13503B25G00N000		 .SPRING 1 Rp13.000
6 13418-12F40-000
SUB: 13418B12F40N000		 .HOLDER 1 Rp12.500
7 13481-33E00-000
SUB: 13481B33E00N000		 .SPRING 1 Rp7.000
8 13382-16D30-000
SUB: 13382B16D30N000		 .WASHER 1 Rp7.000
9 13394-10010-000
SUB: 13394B10010N000		 .E RING 1 Rp6.000
10 13387-47010-000
SUB: 13387B47010N000		 .RING 1 Rp7.500
11 13383-25G00-000 .NEEDLE, JET (4DG8-2) 1 Rp71.500
12 13258-23F00-000
SUB: 13258B23F00N000		 .O RING 1 Rp13.500
13 13254-20010-000
SUB: 13254B20010N000		 .PIN 1 Rp7.500
14 02112-04083-000
SUB: 02112B04083N000		 .SCREW 1 Rp7.500
15-1 09491-22013-000 .JET, MAIN (130) 1 Rp25.000
15-2 09491-22013-000
SUB: 09491B22010N000		 .JET, MAIN (110) 1 Rp25.000
16 09494-00540-000
SUB: 09494B00540N000		 .JET, NEEDLE (0-1) 1 Rp27.500
17 13240-47E00-000
SUB: 13240B47E00N000		 .FLOAT ASSY 1 Rp33.500
18 13342-25G00-000
SUB: 13342B25G00N000		 .HOLDER, JET 1 Rp47.500
19 DISCONTINUE
SUB: 13412B23F50N000		 .STARTER BODY ASSY 1 -
20 02112-35127-000
SUB: 02112B35127N000		 .SCREW 2 Rp9.500
21 09492-12003-000
SUB: 09492B12003N000		 .JET, PILOT (12.5) 1 Rp19.000
22 13267-20E20-000
SUB: 13267B20E20N000		 .SCREW 1 Rp45.500
23 13268-37420-000
SUB: 13268B37420N000		 .SPRING 1 Rp9.500
24 02112-04107-000 .SCREW 3 Rp10.500
25 13684-47E00-000
SUB: 13684B47E00N000		 .HOSE 1 Rp10.000
26 13279-23F20-000
SUB: 13279B23F20N000		 .ADJUSTER (2,1/4) 1 Rp35.500
27 13268-47070-000
SUB: 13268B47070N000		 .SPRING 1 Rp8.000
28 13291-29900-000
SUB: 13291B29900N000		 .WASHER 1 Rp6.500
29 13295-29900-000
SUB: 13295B29900N000		 .O RING 1 Rp8.000
30 13681-04010-000
SUB: 13681B04010N000		 .CAP 1 Rp6.500
31 13418-43410-000
SUB: 13418B43410N000		 .GUIDE HOLDER 1 Rp7.500
32 13417-01010-000
SUB: 13417B01010N000		 .SPRING 1 Rp6.500
33 13411-01010-000
SUB: 13411B01010N000		 .PLUNGER ASSY 1 Rp13.000
34 13258-23F10-000
SUB: 13258B23F10N000		 .O RING 1 Rp14.000
35 DISCONTINUE
SUB: 02112-05087-000		 .SCREW 2 -
36 13601-04148-000
SUB: 13601B04148N000		 .SCREW 2 Rp8.000
37 13502-10F00-000
SUB: 13502B10F00N000		 .COVER ASSY 1 Rp45.000
38 13480-10F00-000
SUB: 13480B10F00N000		 .DIAPHRAGM ASSY 1 Rp35.000
39 13481-25G00-000
SUB: 13481B25G00N000		 .SPRING 1 Rp10.000
40 13247-25600-000
SUB: 13247B25G00N000		 .SCREW 1 Rp8.500
41 09352-40703-230
SUB: 09352-40703-600		 .HOSE 1 Rp11.000
42 13509-17C00-000
SUB: 13509B17C00N000		 O RING 1 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
