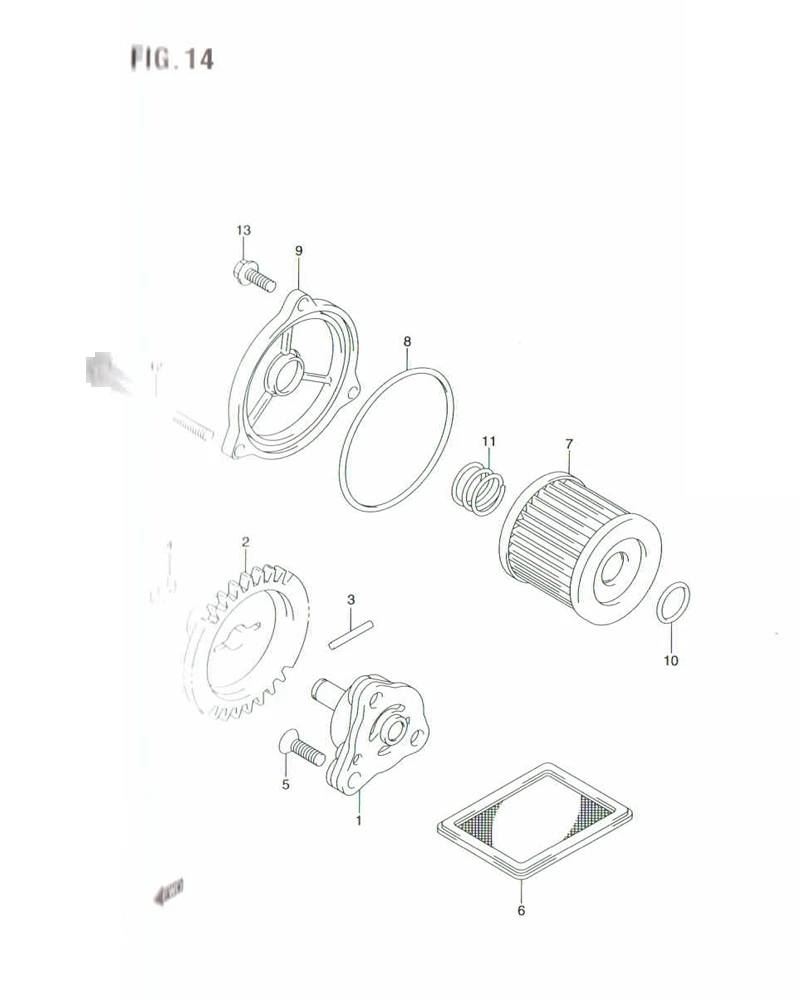

FIG. 14 OIL PUMP

FIG. 14 OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16400-47E30-000
SUB: 16400-47E20-000		 PUMP ASSY, ENGINE OIL 1 Rp101.500
2 16331-47E00-000 GEAR, OIL PUMP DRIVEN (NT:30) 1 Rp183.500
3 09261-02001-000 PIN (2.5X19.8) 1 Rp9.000
4 08332-1106A-000
SUB: 08332B1106AN000		 CIRCLIP 1 Rp8.500
5 02122-0620B-000 SCREW 3 Rp2.500
6 16520-45H01-000
SUB: 16520-30A00-000		 STRAINER, ENGINE OIL 1 Rp14.500
7 16510-45H20-000
SUB: 16510B05240N000		 FILTER, ENGINE OIL 1 Rp9.000
8 09280-54001-000
SUB: 09280B54001N000		 O RING (D:2.4,ID:52.6) 1 Rp3.000
9 16512-47E20-000 CAP, OIL FILTER 1 Rp46.000
10 09280-13010-000
SUB: 09280B13010N000		 O RING (D:1.9,ID:12.5) 1 Rp3.000
11 DISCONTINUE
SUB: 09440B18002N000		 SPRING 1 -
12 01547-0670B-000
SUB: 01547B0670BN000		 BOLT 2 Rp7.000
13 01547-0616A-000
SUB: 01547B0616BN000		 BOLT, OIL FILTER CAP 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
