Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 18A - TRANSMISSION (MODEL K9)FIG. 19 GEAR SHIFTINGFIG. 20 KICK STARTERFIG. 20 KICK STARTER (MODEL K9)FIG. 1 CYLINDER HEAD COVERFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCH (FU150SCD)FIG. 8 CRANK BALANCERFIG. 9 CAM SHAFT/VALVEFIG. 10 CAM CHAINFIG. 11 CARBURETORFIG. 12 AIR CLEANERFIG. 13 MUFFLER (MODEL K3K6)FIG. 13A MUFFLER (MODEL K9)FIG. 14 OIL PUMPFIG. 15 OIL COOLERFIG. 16 2ND AIRFIG. 17 CLUTCHFIG. 18 TRANSMISSION (MODEL K3/K6)

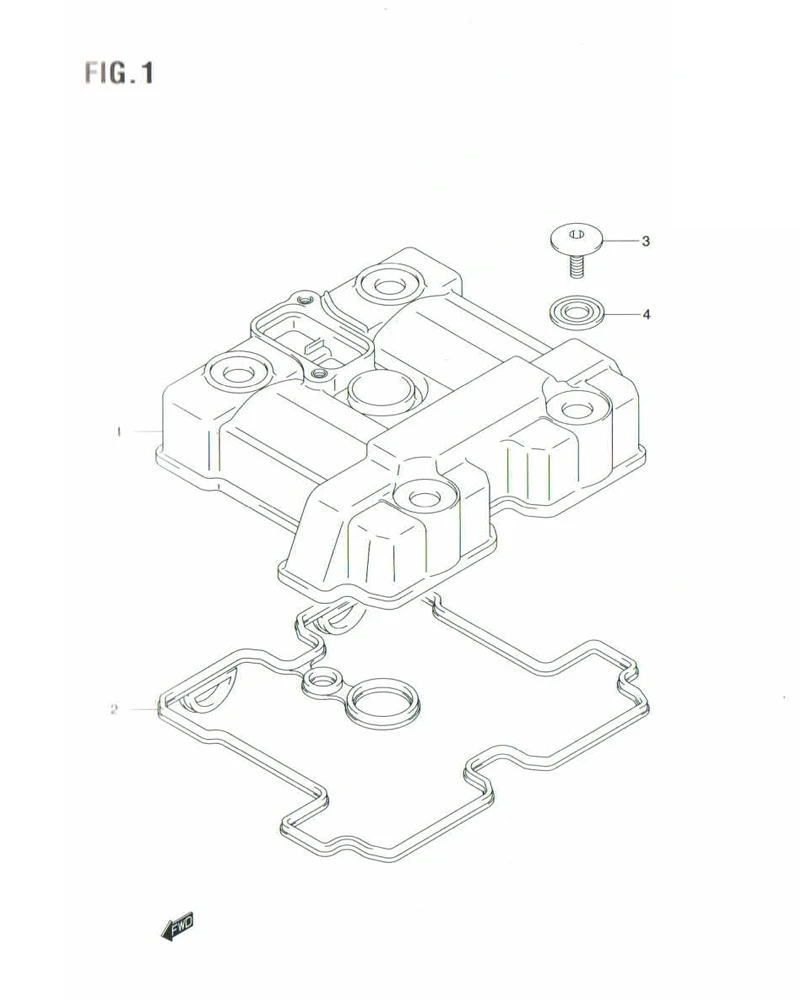

FIG. 1 CYLINDER HEAD COVER

FIG. 1 CYLINDER HEAD COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11171-47E50-000 COVER, CYLINDER HEAD 1 Rp145.500
2 11173-47E10-000
SUB: 11173B47E10N000		 GASKET, CYLINDER HEAD COVER 1 Rp59.500
3 09106-07009-000
SUB: 09106-07009T000		 BOLT (7X17.5) 4 Rp24.500
4 09161-11008-000
SUB: 09161-11008T000		 WASHER (10.6X25.5X1.6) 4 Rp25.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
