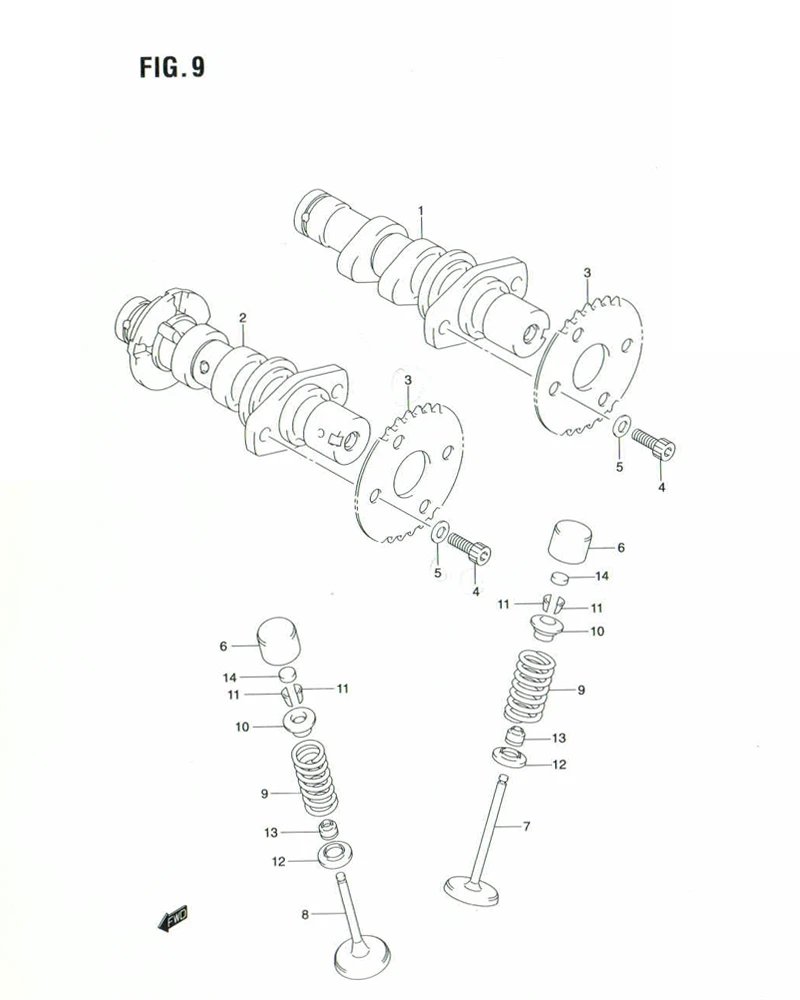

FIG. 9 CAM SHAFT/VALVE

FIG. 9 CAM SHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-25G20-000
SUB: 12710B25G02N000		 CAM SHAFT, INTAKE 1 Rp268.000
2 12720-25G01-000
SUB: 12720B25G02N000		 CAM SHAFT, EXHAUST 1 Rp482.500
3 12741-25G00-000
SUB: 12741B25G00N000		 SPROCKET, CAMSHAFT,2,0,3 2 Rp25.500
4 0910B05027N-000 BPLT 4 -
5 08322-0105A-000
SUB: 08322-0105B-000		 WASHER 4 Rp3.000
6 12891-25G10-000
SUB: 12891-25G00-000		 TAPPET 4 Rp38.500
7 12911-16E00-000 VALVE, INTAKE 2 Rp35.500
8 12912-16E00-000 VALVE, EXHAUST 2 Rp58.500
9 12921-47E10-000
SUB: 12921B47E00N000		 SPRING, VALVE 4 Rp19.000
10 12931-25G00-000 RETAINER, VALVE SPRING 4 Rp23.000
11 12932-32C00-000 COTTER, VALVE 8 Rp12.500
12 12933-16E00-000
SUB: 12933-16E00T000		 SEAT, VALVE SPRING 4 Rp5.000
13 09289-04002-000
SUB: 09289B04002N000		 OIL SEAL (4.5X10X8) 4 Rp10.500
14-21 12892-05C00-190 SHIM, TAPPET (T:2.20) 4 Rp56.000
14-20 12892-05C00-190 SHIM, TAPPET (T:2.15) 4 Rp56.000
14-19 12892-05C00-190 SHIM, TAPPET (T:2.10) 4 Rp56.000
14-18 12892-05C00-190 SHIM, TAPPET (T:2.05) 4 Rp56.000
14-17 12892-05C00-190 SHIM, TAPPET (T:2.00) 4 Rp56.000
14-6 12892-05C00-145 SHIM, TAPPET (T:1.45) 4 Rp57.500
14-16 12892-05C00-195 SHIM, TAPPET (T:1.95) 4 Rp56.000
14-15 12892-05C00-190 SHIM, TAPPET (T:1.90) 4 Rp56.000
14-14 12892-05C00-185 SHIM, TAPPET (T:1.85) 4 Rp56.000
14-13 12892-05C00-180 SHIM, TAPPET (T:1.80) 4 Rp54.000
14-12 12892-05C00-175 SHIM, TAPPET (T:1.75) 4 Rp53.000
14-11 12892-05C00-170 SHIM, TAPPET (T:1.70) 4 Rp56.000
14-10 12892-05C00-165 SHIM, TAPPET (T:1.65) 4 Rp54.500
14-9 12892-05C00-160 SHIM, TAPPET (T:1.60) 4 Rp53.500
14-8 12892-05C00-155 SHIM, TAPPET (T:1.55) 4 Rp56.000
14-7 12892-05C00-150 SHIM, TAPPET (T:1.50) 4 Rp54.500
14-5 12892-05C00-140 SHIM, TAPPET (T:1.40) 4 Rp56.500
14-4 12892-05C00-135 SHIM, TAPPET (T:1.35) 4 Rp57.500
14-3 12892-05C00-130 :SHIM 4 Rp57.500
14-2 12892-05C00-125 SHIM, TAPPET (T:1.25) 4 Rp57.500
14-1 12892-05C00-120 SHIM, TAPPET (T:1.20) 4 Rp57.500
15 12800-05830-000 SHIM SET, TAPPET 1 Rp7.383.500
16 DISCONTINUE
SUB: 99000-69491-000		 .CASE, TAPPET SHIM 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
