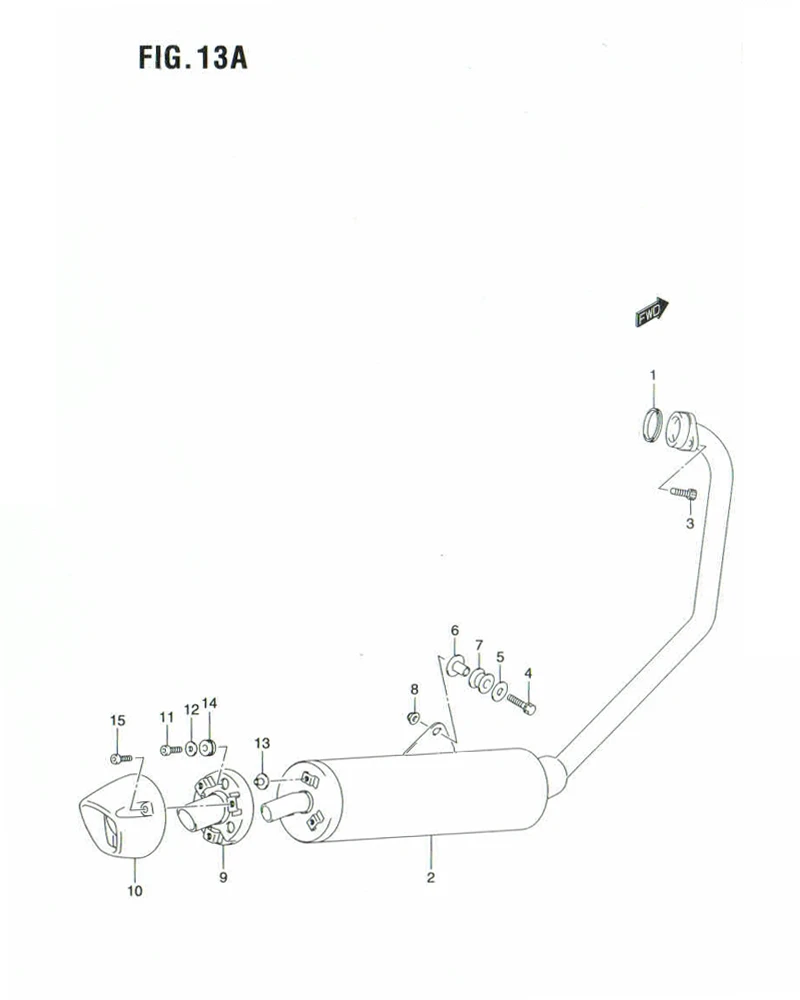

FIG. 13A MUFFLER (MODEL K9)

FIG. 13A MUFFLER (MODEL K9)
No No. Part Description Qty Price Per Pcs Remarks
1 14181-47E20-000
SUB: 14181B47E10N000		 GASKET, EXHAUST PIPE 1 Rp9.000
2 14310-25G40-000
SUB: 14310B25G40N000		 MUFFLER ASSY 1 Rp765.500
3 07130-0825A-000
SUB: 07130B0825BN000		 BOLT 2 Rp4.000
4 01570-0835A-000 BOLT 1 Rp3.500
5 09160-08032-000
SUB: 09160B08032N000		 WASHER (8.5X26X1.2) 1 Rp6.500
6 09180-08151-000
SUB: 09180B08151N000		 SPACER 1 Rp22.000
7 09320-12032-000
SUB: 09320B12032N000		 CUSHION 1 Rp5.000
8 08319-3108B-000
SUB: 08319B3108BN000		 NUT 1 Rp4.500
9 14760-25G40-000
SUB: 14760B25G40N000		 STAY, REAR COVER 1 Rp94.000
10 14790-25G40-019
SUB: 14790B25G40N000		 COVER, MUFFLER REAR 1 Rp206.500
11 07130-0616A-000 BOLT 3 Rp3.500
12 09160-06028-000
SUB: 09160B06028N000		 WASHER (8.5X26X1.2) 3 Rp3.500
13 09169-06091-000
SUB: 09169B06057N000		 SPACER 3 Rp4.500
14 09320-08082-000
SUB: 09320B08082N000		 CUSHION 3 Rp10.500
15 09106-06069-000
SUB: 09106B06069N000		 BOLT 3 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
