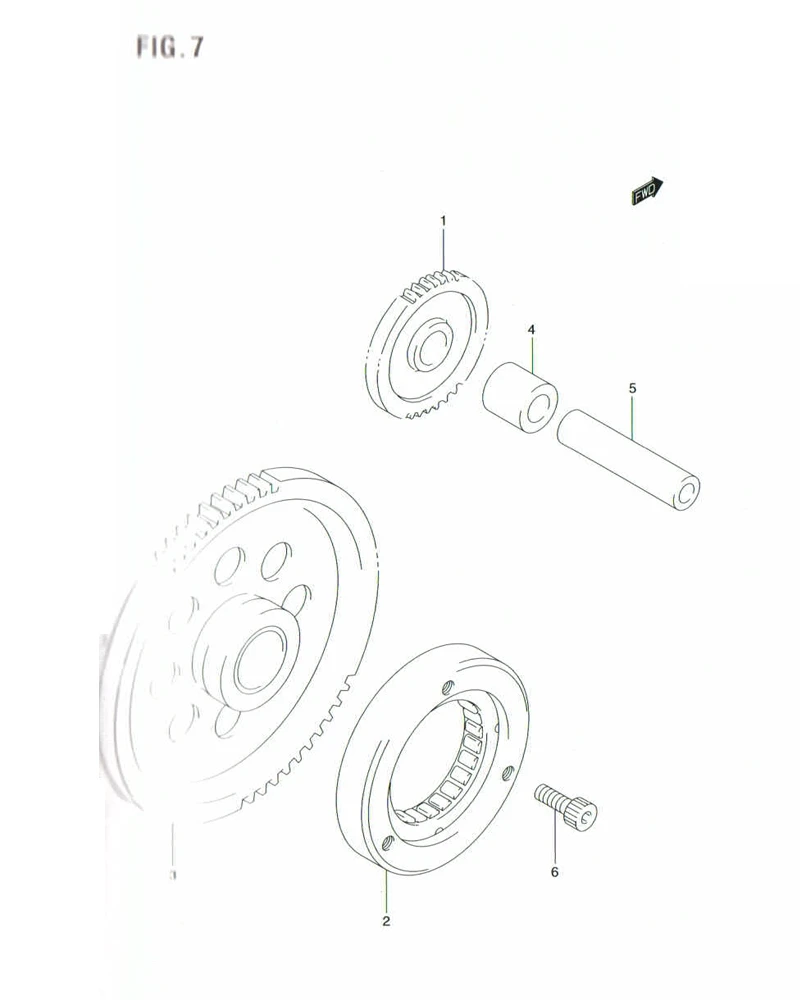

FIG. 7 STARTER CLUTCH (FU150SCD)

FIG. 7 STARTER CLUTCH (FU150SCD)
No No. Part Description Qty Price Per Pcs Remarks
1 12611-25G00-000
SUB: 12611B25G00N000		 GEAR, STARTER IDLE 1 Rp61.500
2 12614-25G00-000
SUB: 12614B05F10N000		 CLUTCH, STARTER 1 Rp476.500
3 12620-25G00-000
SUB: 12620B25G00N000		 GEAR, STARTER CLUTCH 1 Rp470.500
4 09180-13007-000
SUB: 09180B13007N000		 SPACER 1 Rp8.500
5 09206-13003-000
SUB: 09206B13003N000		 PIN (7.4X13X56) 1 Rp13.500
6 07130-0616A-000
SUB: 07130B0616BN000		 BOLT 3 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
