Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 18A - TRANSMISSION (MODEL K9)FIG. 19 GEAR SHIFTINGFIG. 20 KICK STARTERFIG. 20 KICK STARTER (MODEL K9)FIG. 1 CYLINDER HEAD COVERFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCH (FU150SCD)FIG. 8 CRANK BALANCERFIG. 9 CAM SHAFT/VALVEFIG. 10 CAM CHAINFIG. 11 CARBURETORFIG. 12 AIR CLEANERFIG. 13 MUFFLER (MODEL K3K6)FIG. 13A MUFFLER (MODEL K9)FIG. 14 OIL PUMPFIG. 15 OIL COOLERFIG. 16 2ND AIRFIG. 17 CLUTCHFIG. 18 TRANSMISSION (MODEL K3/K6)

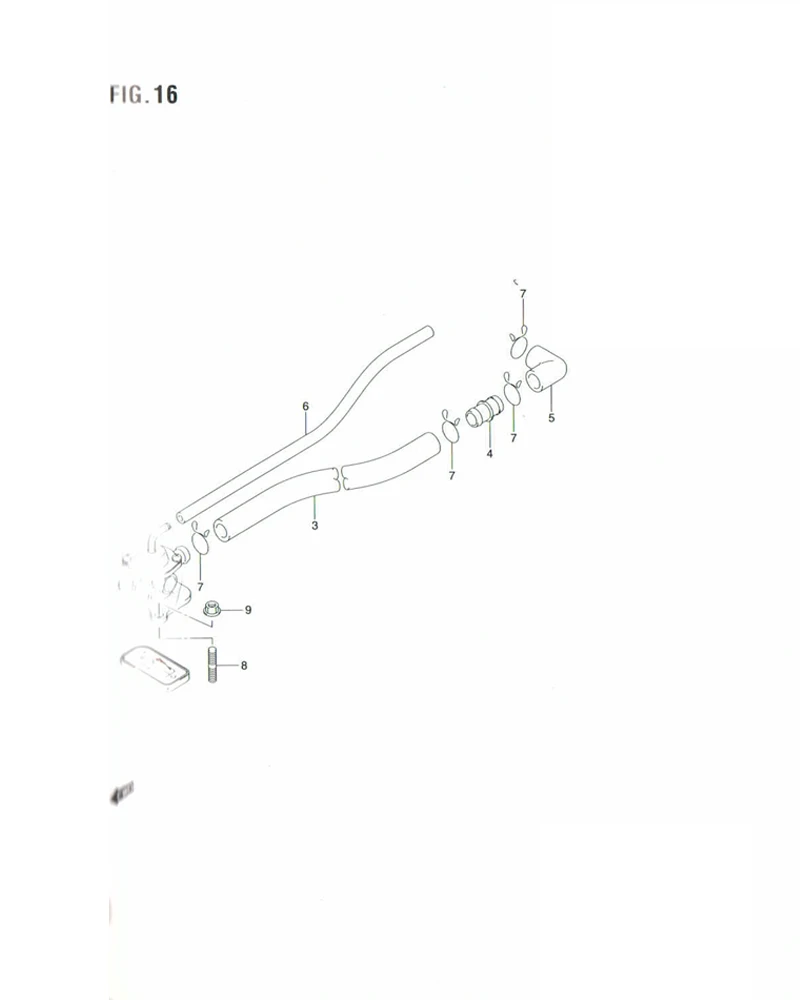

FIG. 16 2ND AIR

FIG. 16 2ND AIR
No No. Part Description Qty Price Per Pcs Remarks
1 18450-06G10-000
SUB: 18450-06G00-000		 VALVE ASSY, 2ND AIR REED 1 Rp61.000
2 18510-25G10-000
SUB: 18510B25G00N000		 VALVE ASSY, AIR CUT 1 Rp110.500
3 09352-11163-600 HOSE, 2ND AIR CLEANER 1 Rp116.000
4 13888-19B00-000 JOINT, 2ND AIR CLEANER HOSE 1 Rp7.000
5 18712-29F01-000
SUB: 18712B29F00N000		 HOSE, 2ND AIR CLEANER HOSE 1 Rp7.000
6 09401-15101-000
SUB: 09401B15101N000		 HOSE, 2ND AIR CLEANER HOSE 1 Rp3.000
7 09401-15101-000
SUB: 09401B15101N000		 CLIP 4 Rp3.000
8 01421-0616A-000
SUB: 01421B0616BN000		 BOLT, STUD 2 Rp3.500
9 08316-1006A-000
SUB: 08316B1006BN000		 NUT, 2ND AIR CAP 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
