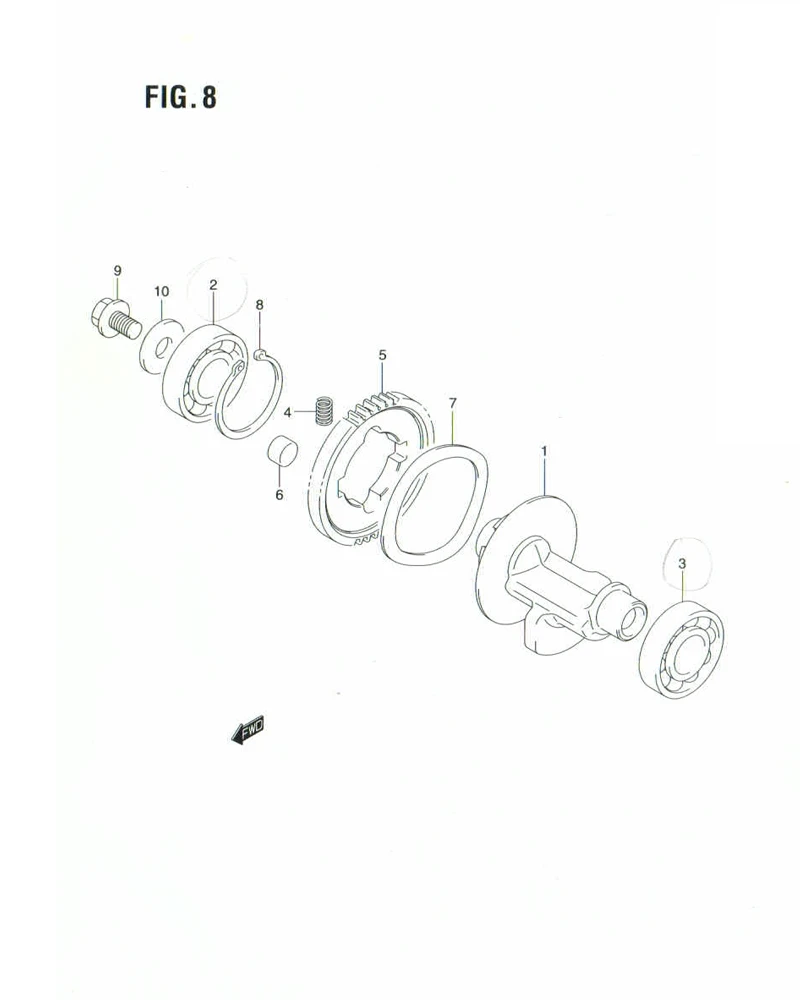

FIG. 8 CRANK BALANCER

FIG. 8 CRANK BALANCER
No No. Part Description Qty Price Per Pcs Remarks
1 12650-25G11-000
SUB: 12650B25G10N000		 BALANCER, CRANK 1 Rp171.500
2 09262-20L03-000
SUB: 09262B20137N000		 BEARING (20X42X12) 1 Rp94.500
3 09262-20L02-000
SUB: 09262B20019N000		 BEARING (20X46X14) 1 Rp75.500
4 12663B25G01N000 SPRING 2 -
5 12666-25G01-000
SUB: 12666B25G01N000		 GEAR1 1 Rp144.500
6 12686-30H00-000
SUB: 12686B25G00N000		 DAMPER 2 Rp57.000
7 09164-58006-000
SUB: 09164-58002-000		 WASHER NO.1 1 Rp20.500
8 09380-38009-000
SUB: 09380B38005N000		 CIRCLIP 1 Rp16.500
9 01550-1016A-000 BOLT 1 Rp5.500
10 08211-10285-000
SUB: 08211B10285N000		 WASHER 1 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
