Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 18A - TRANSMISSION (MODEL K9)FIG. 19 GEAR SHIFTINGFIG. 20 KICK STARTERFIG. 20 KICK STARTER (MODEL K9)FIG. 1 CYLINDER HEAD COVERFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCH (FU150SCD)FIG. 8 CRANK BALANCERFIG. 9 CAM SHAFT/VALVEFIG. 10 CAM CHAINFIG. 11 CARBURETORFIG. 12 AIR CLEANERFIG. 13 MUFFLER (MODEL K3K6)FIG. 13A MUFFLER (MODEL K9)FIG. 14 OIL PUMPFIG. 15 OIL COOLERFIG. 16 2ND AIRFIG. 17 CLUTCHFIG. 18 TRANSMISSION (MODEL K3/K6)

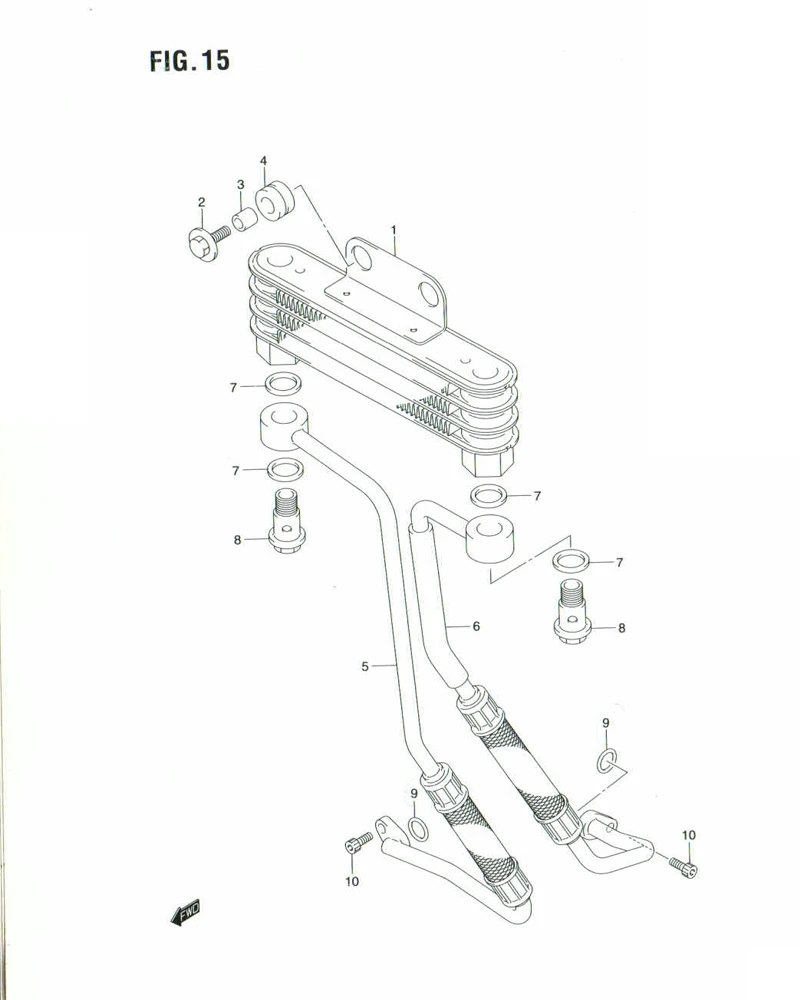

FIG. 15 OIL COOLER

FIG. 15 OIL COOLER
No No. Part Description Qty Price Per Pcs Remarks
1 16600-25G10-000
SUB: 16600-25G00-000		 COOLER ASSY, OIL 1 Rp344.500
2 09116-06143-000 BOLT (6X20) 2 Rp4.000
3 09180-06310-000 SPACER 2 Rp5.000
4 09320-10015-000
SUB: 09320-10015L000		 CUSHION 2 Rp5.500
5 16460-25G10-000
SUB: 16460-25G00-000		 HOSE, OIL COOLER R 1 Rp270.000
6 16470-25G10-000
SUB: 16470-25G00-000		 HOSE, OIL COOLER L 1 Rp270.000
7 09168-14015-000 GASKET, HOSE NO.2 4 Rp7.500
8 09360-12006-000
SUB: 09360-12006T000		 BOLT, UNION (12X28) 2 Rp56.500
9 09280-12017-000
SUB: 09280B12017N000		 0 RING 2 Rp13.500
10 07130-0616A-000
SUB: 07130B0616BN000		 BOLT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
