Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 18A - TRANSMISSION (MODEL K9)FIG. 19 GEAR SHIFTINGFIG. 20 KICK STARTERFIG. 20 KICK STARTER (MODEL K9)FIG. 1 CYLINDER HEAD COVERFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCH (FU150SCD)FIG. 8 CRANK BALANCERFIG. 9 CAM SHAFT/VALVEFIG. 10 CAM CHAINFIG. 11 CARBURETORFIG. 12 AIR CLEANERFIG. 13 MUFFLER (MODEL K3K6)FIG. 13A MUFFLER (MODEL K9)FIG. 14 OIL PUMPFIG. 15 OIL COOLERFIG. 16 2ND AIRFIG. 17 CLUTCHFIG. 18 TRANSMISSION (MODEL K3/K6)

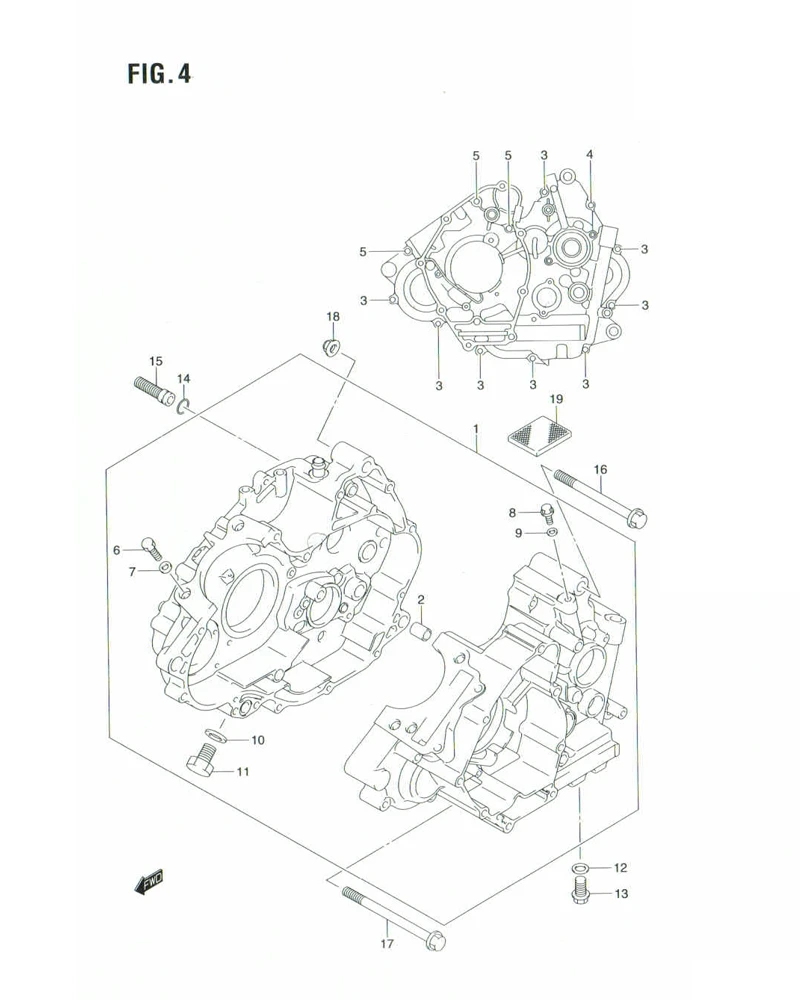

FIG. 4 CRANKCASE

FIG. 4 CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 11300-25G30-000
SUB: 11300A25G10U000		 CRANKCASE ASSY 1 Rp1.894.500
2 04211M13189-000
SUB: 04211-13189-000		 .PIN 2 Rp9.000
3 01547-0640B-000
SUB: 01547B0640BN000		 .BOLT 8 Rp7.000
4 01547-06407-000
SUB: 01547B06407N000		 .BOLT 1 Rp8.000
5 01547-0665A-000
SUB: 01547B0665BN000		 .BOLT 3 Rp7.500
6 09247-12103-000
SUB: 09247-12103T000		 PLUG, BREATHER (12X10) 1 Rp4.000
7 09168-12002-000
SUB: 09168B12002N000		 .GASKET 1 Rp10.000
8 01550B0612BN000 .PLUG, OIL GALLERY MISSION 1 Rp2.500
9 09168-06004-000
SUB: 09168B06004N000		 .GASKET 1 Rp2.500
10 09168-12002-000
SUB: 09168B12002N000		 .GASKET (12.1X16.2X1.2) 2 Rp10.000
11 09247-12103-000
SUB: 09247-12103T000		 .PLUG (12X10) 2 Rp4.000
12 09168-12002-000
SUB: 09168B12002N000		 GASKET (12.1X16.2X3.7) 1 Rp10.000
13 09247-12106-000
SUB: 09247B12106N000		 PLUG, OIL DRAIN 1 Rp8.500
14 09280-04004-000
SUB: 09280B04004N000		 0 RING (D:1.2,ID:4.0) 1 Rp3.500
15 09493-24012-000 JET, OIL GALLERY 1 Rp31.500
16 09103-10052-000
SUB: 09103B10052N000		 BOLT (10X120) 1 Rp24.500
17 09103-10148-000
SUB: 09103B10148N000		 BOLT (10X110) 1 Rp23.000
18 08319-3110A-000
SUB: 08319B3110AN000		 NUT 2 Rp4.500
19 11186-25G10-000
SUB: 11186B25G10N000		 SEPARATOR, OIL BREATHER 1 Rp63.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
