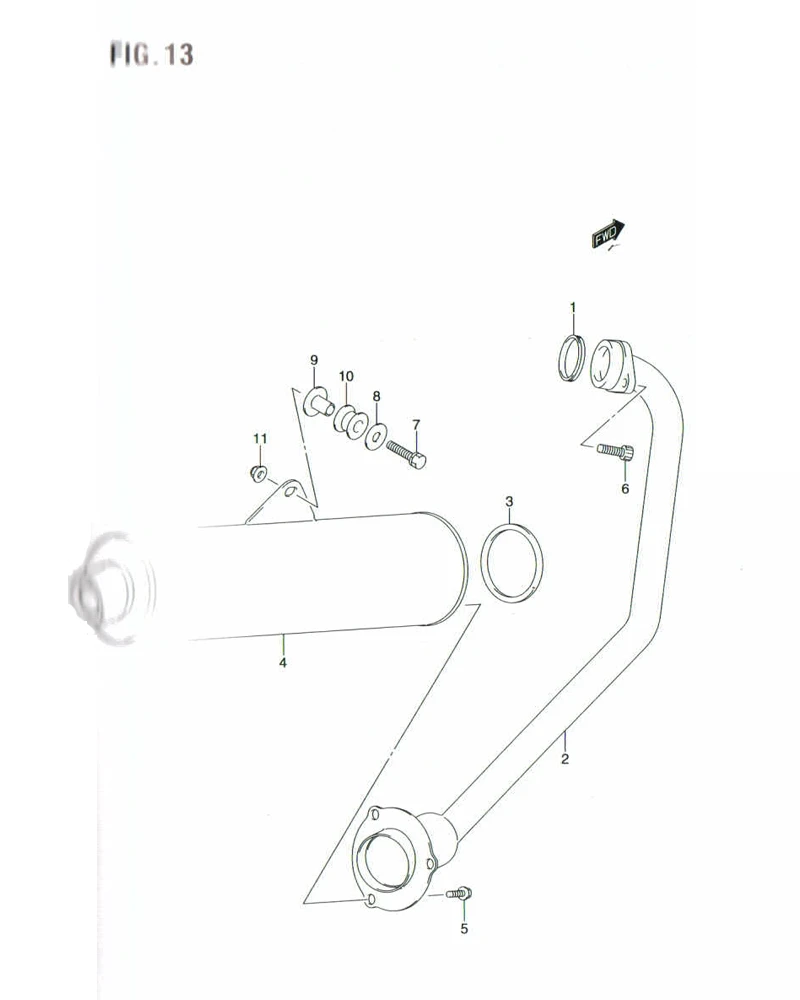

FIG. 13 MUFFLER (MODEL K3K6)

FIG. 13 MUFFLER (MODEL K3K6)
No No. Part Description Qty Price Per Pcs Remarks
1 14181-47E20-000
SUB: 14181B47E10N000		 GASKET, EXHAUST PIPE 1 Rp9.000
2 14150-25G01-000
SUB: 14150B25G00N000		 PIPE, EXHAUST 1 Rp197.500
3 14181-25G10-000
SUB: 14181B25G00N000		 GASKET, EXHAUST PIPE 1 Rp8.500
4 14310B25G00N000 BODY, MUFFLER 1 Rp635.500
5 01550-0620B-000
SUB: 01550-06203L000		 BOLT, JOINT 3 Rp3.500
6 07130-0825A-000
SUB: 07130-08253-000		 BOLT, JOINT 2 Rp4.000
7 01570-0835B-000
SUB: 01570-08353-000		 BOLT, JOINT 1 Rp7.500
8 09160-08032-000
SUB: 09160B08032N000		 WASHER (8.5X26X1.2) 1 Rp6.500
9 09180-08151-000
SUB: 09180B08151N000		 SPACER 1 Rp22.000
10 09320-12032-000
SUB: 09320B12032N000		 CUSHION 1 Rp5.000
11 08319-3108A-000
SUB: 08319-31083-000		 NUT 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
