Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 18A - TRANSMISSION (MODEL K9)FIG. 19 GEAR SHIFTINGFIG. 20 KICK STARTERFIG. 20 KICK STARTER (MODEL K9)FIG. 1 CYLINDER HEAD COVERFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCH (FU150SCD)FIG. 8 CRANK BALANCERFIG. 9 CAM SHAFT/VALVEFIG. 10 CAM CHAINFIG. 11 CARBURETORFIG. 12 AIR CLEANERFIG. 13 MUFFLER (MODEL K3K6)FIG. 13A MUFFLER (MODEL K9)FIG. 14 OIL PUMPFIG. 15 OIL COOLERFIG. 16 2ND AIRFIG. 17 CLUTCHFIG. 18 TRANSMISSION (MODEL K3/K6)

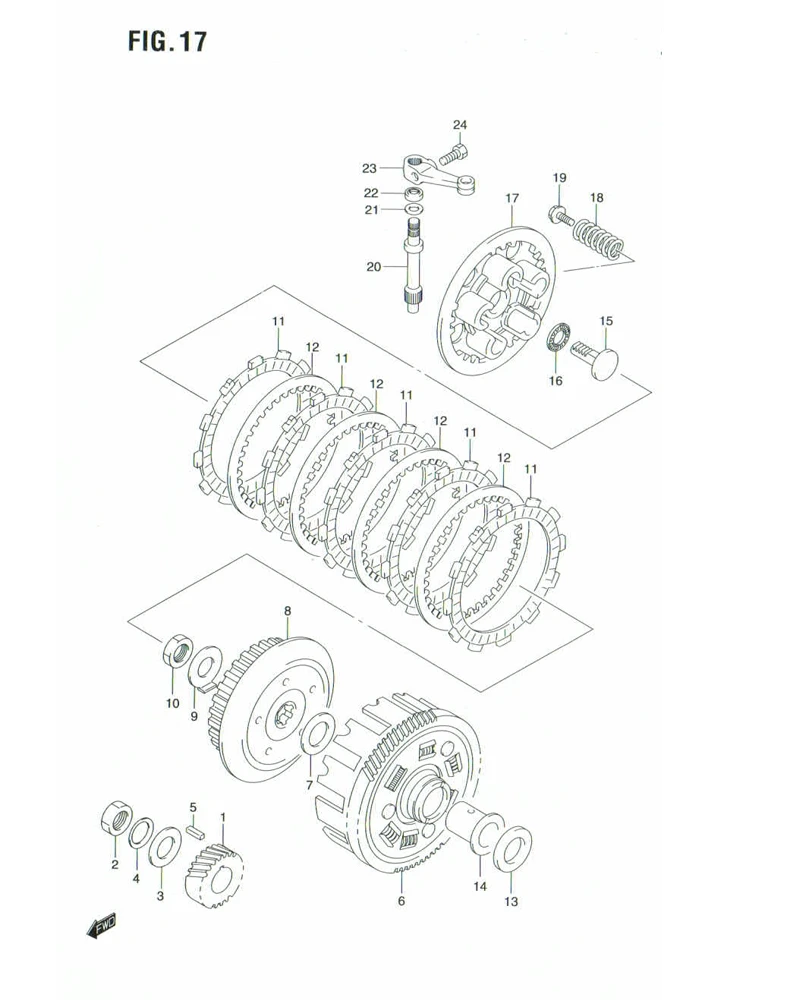

FIG. 17 CLUTCH

FIG. 17 CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1-2 21111-25G20-000
SUB: 21111B25G10N000		 GEAR, PRIMARY DRIVE 1 Rp87.500
1-1 21111-25G20-000
SUB: 21111-25G00T000		 GEAR, PRIMARY DRIVE 1 Rp87.500
2 09140-16019-000
SUB: 09140B16019N000		 NUT, PRIMARY DRIVE 1 Rp11.000
3 09160-16003-000 WASHER, PRIMARY DRIVE 1 Rp9.000
4 09164-16005-000 WASHER, PRIMARY DIVE 1 Rp14.000
5 09421-04004-000
SUB: 09421B04004N000		 KEY, PRIMARY DRIVE GEAR 1 Rp6.500
6-1 21200-25G10-000
SUB: 21200-25G00T000		 GEAR, PRIMARY DRIVEN (NT:70) 1 Rp502.000
6-2 21200-25G10-000
SUB: 21200B25G10N000		 GEAR, PRIMARY DRIVEN (NT:70) 1 Rp502.000
7 08211-20352-000
SUB: 08211B20352N000		 WASHER, CLUTCH SLEEVE 1 Rp10.500
8 21411-05200-000
SUB: 21411B05200N000		 HUB, CLUTCH SLEEVE 1 Rp60.000
9-1 09169-16009-000
SUB: 09169-16003-000		 WASHER 1 Rp5.500
9-2 09169-16009-000 WASHER 1 Rp5.500
10 09140-16001-000
SUB: 09140B16001N000		 NUT 1 Rp11.000
11 21441-25G00-000
SUB: 21441B25G00N000		 PLATE, DRIVE 5 Rp46.500
12 21451-28030-000
SUB: 21451B28030N000		 PLATE, DRIVEN 4 Rp21.000
13 09160-20056-000 SPACER (20.1X36X4) 1 Rp142.500
14 21251-13E10-000 SPACER, PRIMARY DRIVEN 1 Rp200.000
15 23165-28301-000 RACK, RELEASE 1 Rp181.500
16 09263-10002-000 BEARING (10.1X22X2.8) 1 Rp63.500
17 21462-02B41-000 DISK, PRESSURE 1 Rp169.500
18 09440-15043-000
SUB: 09440B15014N000		 SPRING 5 Rp4.000
19-1 09116-05020-000
SUB: 09116B05020N000		 BOLT (5X16) 5 Rp3.000
19-2 09116-05147-000 BOLT, CLUTCH SPRING 5 Rp8.000
20 23261-13A21-000
SUB: 23261B13A01N000		 PINION, RELEASE 1 Rp53.500
21 09160-12086-000
SUB: 09160B12086N000		 WASHER (12.5X17X1) 1 Rp7.000
22 09285-10008-000
SUB: 09285B10005N000		 SEAL (10X17X5) 1 Rp9.500
23 23271-47E00-000
SUB: 23271-47E00T000		 ARM, RELEASE 1 Rp336.500
24 01500-0616A-000
SUB: 01500B0616BN000		 BOLT 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
