  5. FIG. 19 GEAR SHIFTING

Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 18A - TRANSMISSION (MODEL K9)FIG. 19 GEAR SHIFTINGFIG. 20 KICK STARTERFIG. 20 KICK STARTER (MODEL K9)FIG. 1 CYLINDER HEAD COVERFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCH (FU150SCD)FIG. 8 CRANK BALANCERFIG. 9 CAM SHAFT/VALVEFIG. 10 CAM CHAINFIG. 11 CARBURETORFIG. 12 AIR CLEANERFIG. 13 MUFFLER (MODEL K3K6)FIG. 13A MUFFLER (MODEL K9)FIG. 14 OIL PUMPFIG. 15 OIL COOLERFIG. 16 2ND AIRFIG. 17 CLUTCHFIG. 18 TRANSMISSION (MODEL K3/K6)

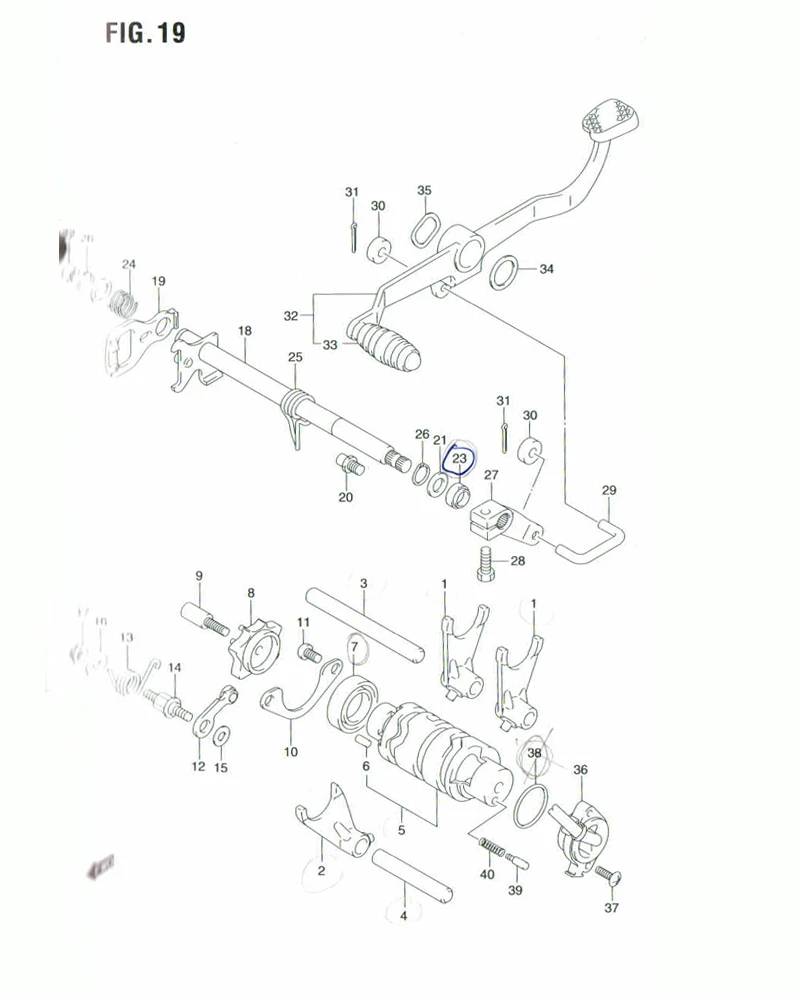

FIG. 19 GEAR SHIFTING

FIG. 19 GEAR SHIFTING
No No. Part Description Qty Price Per Pcs Remarks
1-2 25211-25G10-000
SUB: 25211B25G10N000		 FORK, GEAR SHIFTING NO.1 2 Rp44.000
1-1 25211-25G10-000
SUB: 25211-25G00-000		 FORK, GEAR SHIFTING NO.1 2 Rp44.000
2-2 25231-25G10-000
SUB: 25231B25G10N000		 FORK, GEAR SHIFTING NO.3 1 Rp44.000
2-1 25231-25G10-000
SUB: 25231-25G00-000		 FORK, GEAR SHIFTING NO.3 1 Rp44.000
3 DISCONTINUE
SUB: 25411-21D01-000		 SHAFT, GEAR SHIFTING NO.1 1 -
4 25421-35410-000 SHAFT, GEAR SHIFTING NO.2 1 Rp144.500
5 25310-25G10-000
SUB: 25310-47E20-000		 CAM, GEAR SHIFTING 1 Rp143.500
6 04221-04089-000 .PIN 1 Rp3.500
7 08110-69050-000
SUB: 08113B69050N000		 BEARING, GEAR SHIFT CAM 1 Rp53.000
8-1 25381-25G20-000
SUB: 25381-25G00-000		 PLATE, GEAR SHIFT CAM 1 Rp75.500
8-2 25381-25G20-000
SUB: 25381-25G10-000		 PLATE, GEAR SHIFT CAM 1 Rp75.500
9 25312-12C10-000
SUB: 25312-12C00-000		 STOPPER, SHIFT CAM 1 Rp20.500
10 24741-12B00-000
SUB: 24741B12B00N000		 RETAINER 1 Rp14.500
11 02112-0612A-000
SUB: 02112B0612BN000		 SCREW 2 Rp3.500
12 25350-26D01-000 STOPPER, CAM 1 Rp17.000
13 25355-26D10-000
SUB: 25355B26D10N000		 SPRING, STOPPER 1 Rp3.000
14 DISCONTINUE
SUB: 25356-12C00-000		 SUPPORT, CAM STOPPER 1 -
15 08211-06141-000
SUB: 08211B06141N000		 WASHER, CAM STOPPER 1 Rp9.500
16 08211-06181-000
SUB: 08211B06181N000		 WASHER, CAM ARM 1 Rp9.500
17 08316-1006A-000
SUB: 08316B1006BN000		 NUT, CAM 1 Rp2.000
18 25510-47E21-000
SUB: 25510B47E21N000		 SHAFT, GEAR SHIFTING 1 Rp66.000
19 DISCONTINUE
SUB: 25512-13E11T000		 PLATE, GEAR SHIFT CAM 1 -
20 25671-01030-000
SUB: 25671-01011-000		 STOPPER, GEAR SHIFT 1 Rp4.500
21 09181-14167-000
SUB: 09181B14167N000		 WASHER (14X22X1) 2 Rp13.000
22 09263-14027-000
SUB: 09263B14027N000		 BEARING, LH (14X20X12) 1 Rp43.500
23 09283M14005-000
SUB: 09283-14006-000		 SEAL, SHAFT OIL 1 Rp9.000
24 09440-17009-000 SPRING, GEAR SHIFT PLATE 1 Rp13.000
25 09444-20007-000
SUB: 09444B20007N000		 SPRING, SHIFT SHAFT 1 Rp4.500
26 08331-3114A-000 CIRCLIP, GEAR SHIFT 2 Rp12.500
27 25520-25G00-000
SUB: 25520B25G00N000		 ARM, GEAR SHIFT LINK 1 Rp18.000
28 01500-0620B-000
SUB: 01500B0620BN000		 BOLT 1 Rp3.000
29 25525-25G00-000
SUB: 25525B25G00N000		 ROD, GEAR SHIFT LINK 1 Rp4.500
30 DISCONTINUE
SUB: 09161B06024N000		 WASHER, LINK ROD 2 -
31 04111-2015A-000
SUB: 04111B2015AN000		 PIN, ROD COTTER 2 Rp4.500
32-2 25600-25G20-000
SUB: 25600B25G20N000		 LEVER ASSY, GEAR SHIFTING 1 Rp106.500
32-1 25600-25G00-000 LEVER ASSY, GEAR SHIFTING 1 Rp113.500
33-1 25652-16H11-000
SUB: 25652-16500L000		 .RUBBER, PEDAL 1 Rp3.500
33-2 25652-16H11-000
SUB: 25652B16H10N000		 .RUBBER, PEDAL 1 Rp3.500
34 09161-18005-000 WASHER (18.2X26X0.8) 1 Rp58.000
35 09164-18002-000 WASHER (18.7X26X0.3) 1 Rp3.500
36 37720-25G10-000
SUB: 37720-25G00-000		 BASE ASSY, GEAR SHIFT TERM 1 Rp45.500
37 02112-7516A-000
SUB: 02112B7516AN000		 SCREW 2 Rp7.000
38-1 09280-26007-000 O RING (D:2.4, ID:25.7) 1 Rp34.500
38-2 37722-25G00-000 O RING (D:2.4, ID:256.72) 1 Rp7.500
39 09209-05011-000
SUB: 09209B05011N000		 CONTACT, GEAR SHIFT SW 1 Rp5.500
40 09440-04010-000
SUB: 09440B04010N000		 SPRING, GEAR SHIFT SW 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
