Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 18A - TRANSMISSION (MODEL K9)FIG. 19 GEAR SHIFTINGFIG. 20 KICK STARTERFIG. 20 KICK STARTER (MODEL K9)FIG. 1 CYLINDER HEAD COVERFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCH (FU150SCD)FIG. 8 CRANK BALANCERFIG. 9 CAM SHAFT/VALVEFIG. 10 CAM CHAINFIG. 11 CARBURETORFIG. 12 AIR CLEANERFIG. 13 MUFFLER (MODEL K3K6)FIG. 13A MUFFLER (MODEL K9)FIG. 14 OIL PUMPFIG. 15 OIL COOLERFIG. 16 2ND AIRFIG. 17 CLUTCHFIG. 18 TRANSMISSION (MODEL K3/K6)

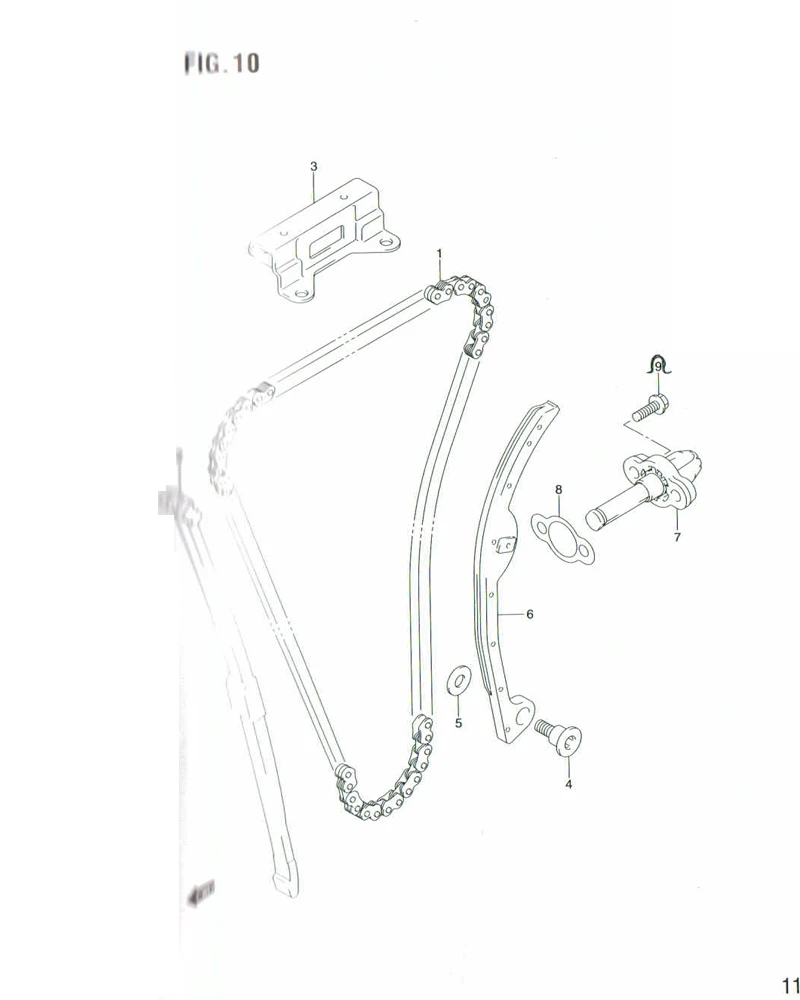

FIG. 10 CAM CHAIN

FIG. 10 CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 12760-25G00-000		 CHAIN, CAM SHAFT DRIVE 1 -
2 12771-25G00-000 GUIDE, CAM CHAIN NO.1 1 Rp53.500
3 12782-25G00-000 GUIDE, CAM CHAIN NO.2 1 Rp44.500
4 12812-35C00-000
SUB: 12812-35C00T000		 BOLT, CAM CHAIN TENSIONER 1 Rp4.000
5 08211-06181-000
SUB: 08211B06181N000		 WASHER 1 Rp9.500
6 12811-25G10-000
SUB: 12811-25G01-000		 TENSIONER, CAM CHAIN 1 Rp50.500
7 12830-25G30-000
SUB: 12830-25G10-000		 ADJUSTERBASSY, TENSIONER 1 Rp161.000
8 12837-25G10-000
SUB: 12837B25G10N000		 GASKET, TENSIONER ADJUSTER 1 Rp4.000
9 01547-0620B-000
SUB: 01547B0620BN000		 BOLT, CAM CHAIN TENSIONER 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
