Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 18A - TRANSMISSION (MODEL K9)FIG. 19 GEAR SHIFTINGFIG. 20 KICK STARTERFIG. 20 KICK STARTER (MODEL K9)FIG. 1 CYLINDER HEAD COVERFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCH (FU150SCD)FIG. 8 CRANK BALANCERFIG. 9 CAM SHAFT/VALVEFIG. 10 CAM CHAINFIG. 11 CARBURETORFIG. 12 AIR CLEANERFIG. 13 MUFFLER (MODEL K3K6)FIG. 13A MUFFLER (MODEL K9)FIG. 14 OIL PUMPFIG. 15 OIL COOLERFIG. 16 2ND AIRFIG. 17 CLUTCHFIG. 18 TRANSMISSION (MODEL K3/K6)

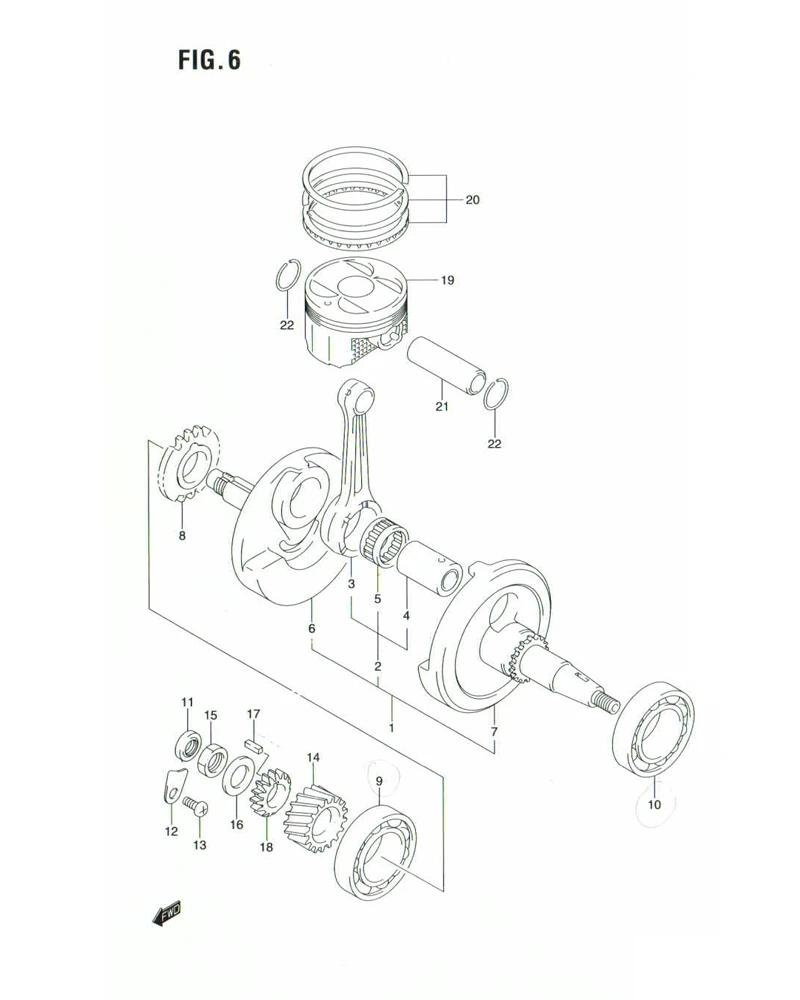

FIG. 6 CRANKSHAFT

FIG. 6 CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12200-25GE1-000
SUB: 12200-25G10-000		 CRANKSHAFT ASSY 1 Rp896.500
2 12160-25811-000
SUB: 12160-25810-000		 .CONNROD SET 1 Rp657.500
3 12161-25G20-0B0
SUB: 12161-25G00-0B0		 ..CONNECTING ROD 1 Rp88.500
4 12210-25G00-000 ..PIN, CRANK 1 Rp163.000
5 09263-30065-0B0
SUB: 09263-30048-0B0		 ..BEARING 1 Rp101.500
6 12220-25GA0-000
SUB: 12220B25G00N000		 .CRANKSHAFT, RH 1 Rp198.500
7-1 12261-25GA0-000
SUB: 12261-25G00-000		 .CRANKSHAFT, LH 1 Rp194.500
7-2 12261-25GA0-000
SUB: 12261B25G10N000		 .CRANKSHAFT, LH 1 Rp194.500
8 126611B25G01N GEAR, CRANK BALANCER DRIVE (NT:49) 1 -
9 09262B28035L01 BEARING (28X68X17) 1 -
10 09262B35026L01 BEARING (35X72X17) 1 -
11 09282-12L01-000
SUB: 09282-12001-000		 OIL SEAL (12X21X7) 1 Rp15.500
12 24742-18A00-000
SUB: 24742B18A00N000		 RETAINER, BEARING 1 Rp6.000
13 02112-0612A-000
SUB: 02112B0612BN000		 SCREW 1 Rp3.500
14 21111-25G20-000
SUB: 21111-25G00T000		 GEAR, PRIMARY DRIVE (NT:21) 1 Rp87.500
15 09140-16019-000
SUB: 09140B16019N000		 NUT 1 Rp11.000
16 09164-16005-000 WASHER 1 Rp14.000
17 09421-04004-000
SUB: 09421B04004N000		 KEY 1 Rp6.500
18 16321-47E20-000
SUB: 16321-47E10-000		 GEAR, OIL PUMP DRIVE 1 Rp66.000
19 12111-25G10-0F0
SUB: 12111-25G00-0F0		 PISTON 1 Rp137.000
20 12140-25G00-000
SUB: 12140B25G00N000		 RING SET, PISTON 1 Rp100.000
21 12151-25G00-000
SUB: 12151B25G00N000		 PISTON 1 Rp16.500
22 09381-16001-000
SUB: 09381B16001N000		 CIRCLIP 2 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
