Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 18A - TRANSMISSION (MODEL K9)FIG. 19 GEAR SHIFTINGFIG. 20 KICK STARTERFIG. 20 KICK STARTER (MODEL K9)FIG. 1 CYLINDER HEAD COVERFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCH (FU150SCD)FIG. 8 CRANK BALANCERFIG. 9 CAM SHAFT/VALVEFIG. 10 CAM CHAINFIG. 11 CARBURETORFIG. 12 AIR CLEANERFIG. 13 MUFFLER (MODEL K3K6)FIG. 13A MUFFLER (MODEL K9)FIG. 14 OIL PUMPFIG. 15 OIL COOLERFIG. 16 2ND AIRFIG. 17 CLUTCHFIG. 18 TRANSMISSION (MODEL K3/K6)

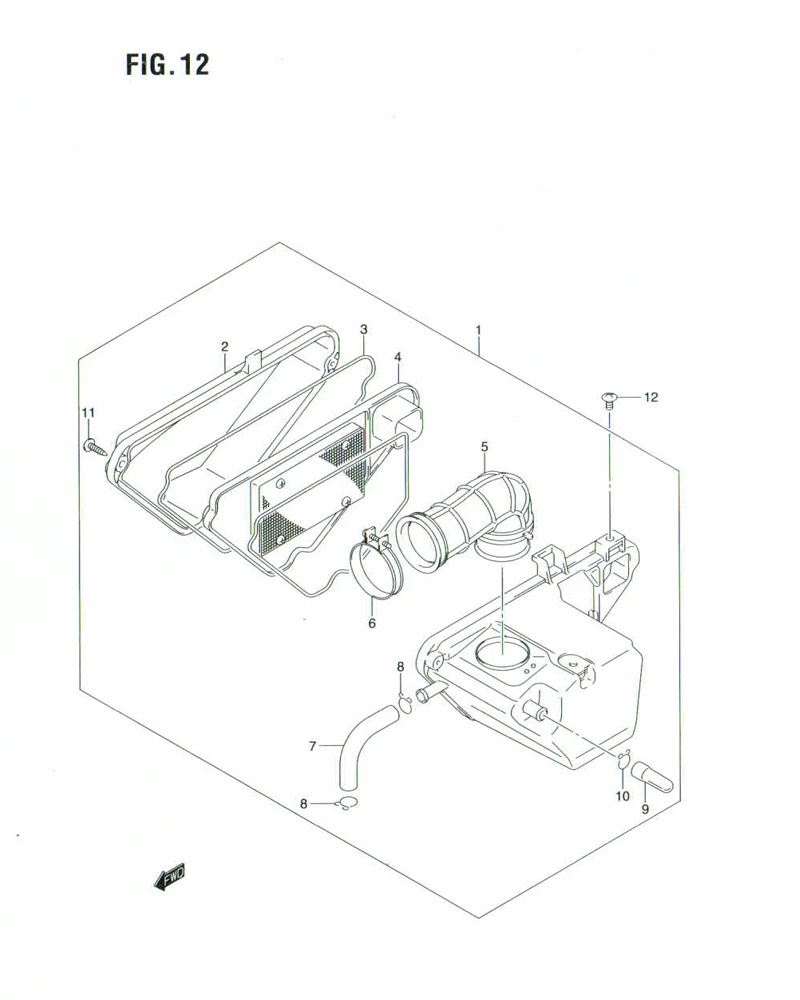

FIG. 12 AIR CLEANER

FIG. 12 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-25G20-000
SUB: 13700B25G01N000		 CLEANER ASSY, AIR 1 Rp211.000
2 13741-25G00-000
SUB: 13741B25G00N000		 .CAP, AIR CLEANER 1 Rp25.000
3 13746-25G00-000
SUB: 13746B25G00N000		 .GASKET 1 Rp10.500
4 13780-25G00-000
SUB: 13780B25G00N000		 .FILTER ASSY. 1 Rp47.000
5 13881-25G00-000
SUB: 13881B25G00N000		 .TUBE, OUTLET 1 Rp39.500
6 13826-25G00-000
SUB: 13826B25G00N000		 .CLAMP 1 Rp9.000
7 13853-25G00-000
SUB: 13853B25G00N000		 .TUBE, BREATHER 1 Rp10.000
8 09401-14301-000
SUB: 09401B14301N000		 .CLIP 2 Rp4.500
9 13871-09G00-000
SUB: 13871B09G00N000		 .PLUG 1 Rp4.000
10 09401-11101-000 .CLIP 1 Rp14.000
11 03541-0520B-000
SUB: 03541B0520BN000		 .SCREW 2 Rp3.000
12 02142-0612A-000
SUB: 02142B0612BN000		 .SCREW 3 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
