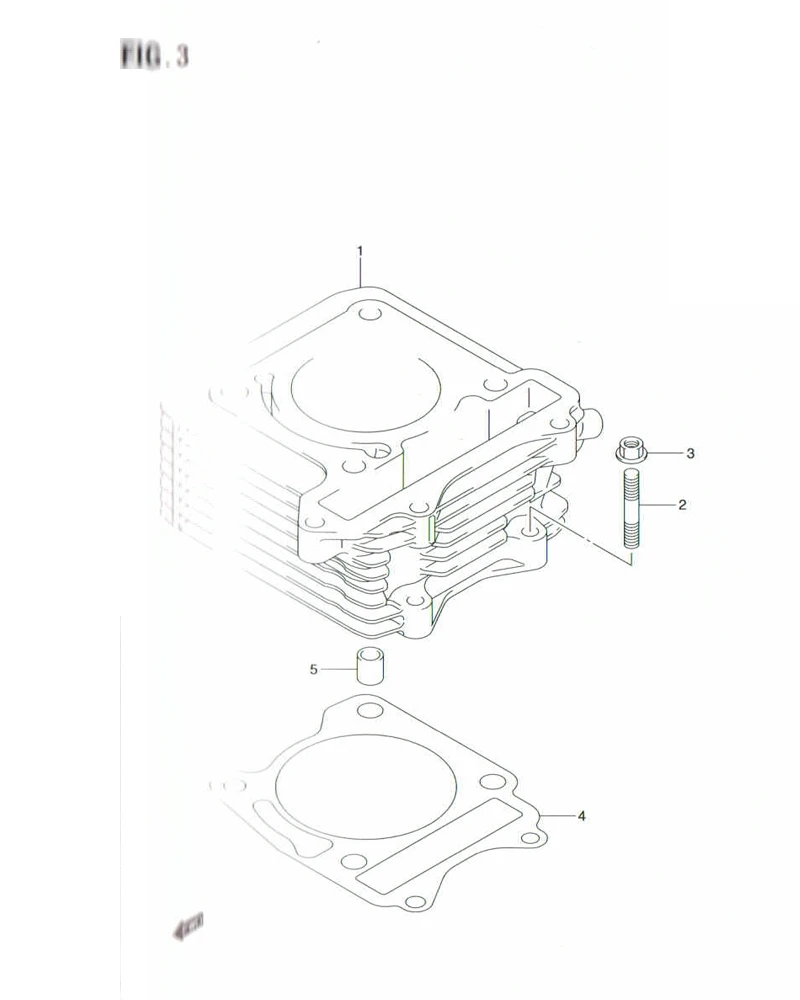

FIG. 3 CYLINDER

FIG. 3 CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11211-25G50-0F0
SUB: 11211-25G00-0F0		 CYLINDER 1 Rp1.712.500
2 01421-0625B-000
SUB: 01421B0625BN000		 STUD BOLT 2 Rp7.000
3 08316-1006A-000
SUB: 08316B1006BN000		 NUT 2 Rp2.000
4 11241-25G10-000
SUB: 11241B25G10N000		 GASKET, CYLINDER 1 Rp7.500
5 04211-11129-000
SUB: 04211B11129N000		 PIN 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
