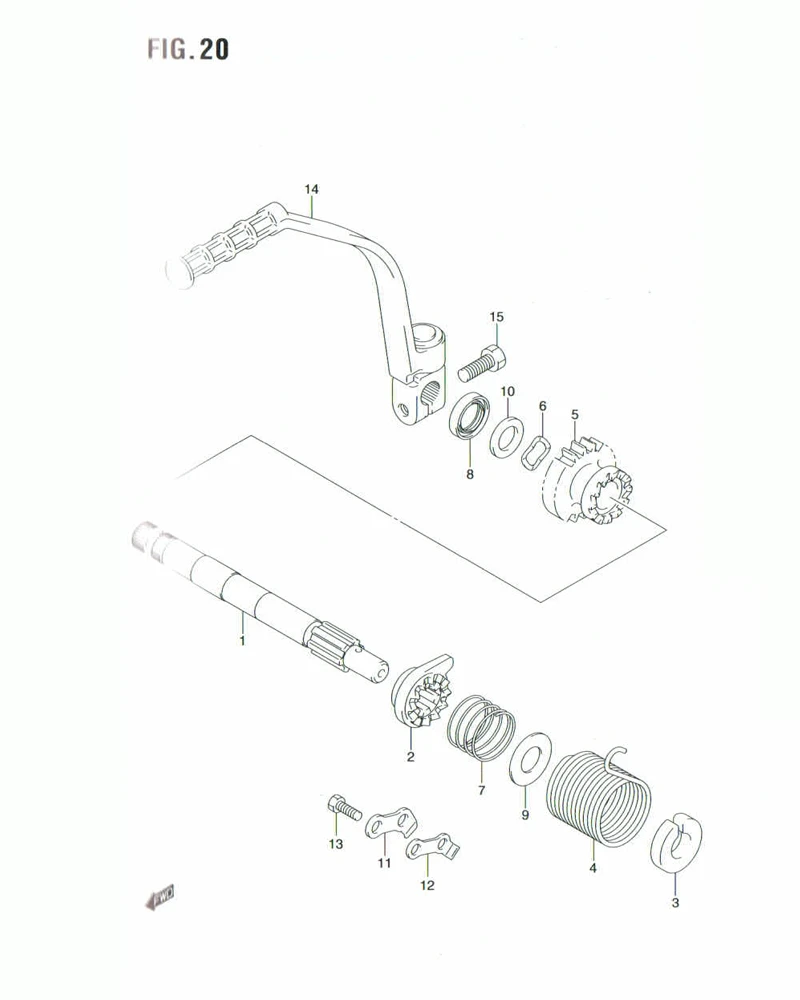

FIG. 20 KICK STARTER

FIG. 20 KICK STARTER
No No. Part Description Qty Price Per Pcs Remarks
1 26211-47E20-000
SUB: 26211-47E10-000		 SHAFT, KICK STARTER 1 Rp59.500
2 26231-09430-000
SUB: 26231-09410-000		 STARTER, KICK 1 Rp61.500
3 DISCONTINUE
SUB: 26221B30A00N000		 GUIDE, SPRING 1 -
4 09448-38004-000
SUB: 09448B38004N000		 SPRING 1 Rp21.000
5 26241-47E30-000
SUB: 26241B47E20N000		 GEAR, DRIVE (NT:18) 1 Rp89.000
6 26242-47E00-000 WASHER, KICK DRIVE GEAR 1 Rp19.000
7 09440-30007-000
SUB: 09440B30007N000		 SPRING 1 Rp3.000
8 09283-16006-000
SUB: 09283B16006N000		 OIL SEAL (16X24X5) 1 Rp17.000
9 09160-16003-000 WASHER (16X30.5X1.0) 1 Rp9.000
10 08211-14321-000
SUB: 08211B14321N000		 WASHER 1 Rp10.500
11 26232-09410-000
SUB: 26232B09401N000		 GUIDE, KICK STARTER 1 Rp6.500
12 26233-09400-000
SUB: 26233B09400N000		 STOPPER, KICK STARTER 1 Rp3.000
13 01500-0616A-000 BOLT 2 Rp6.500
14 26300-25G00-000
SUB: 26300B25G00N000		 LEVER ASSY, KICK STARTER 1 Rp90.000
15 015000825B BOLT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
