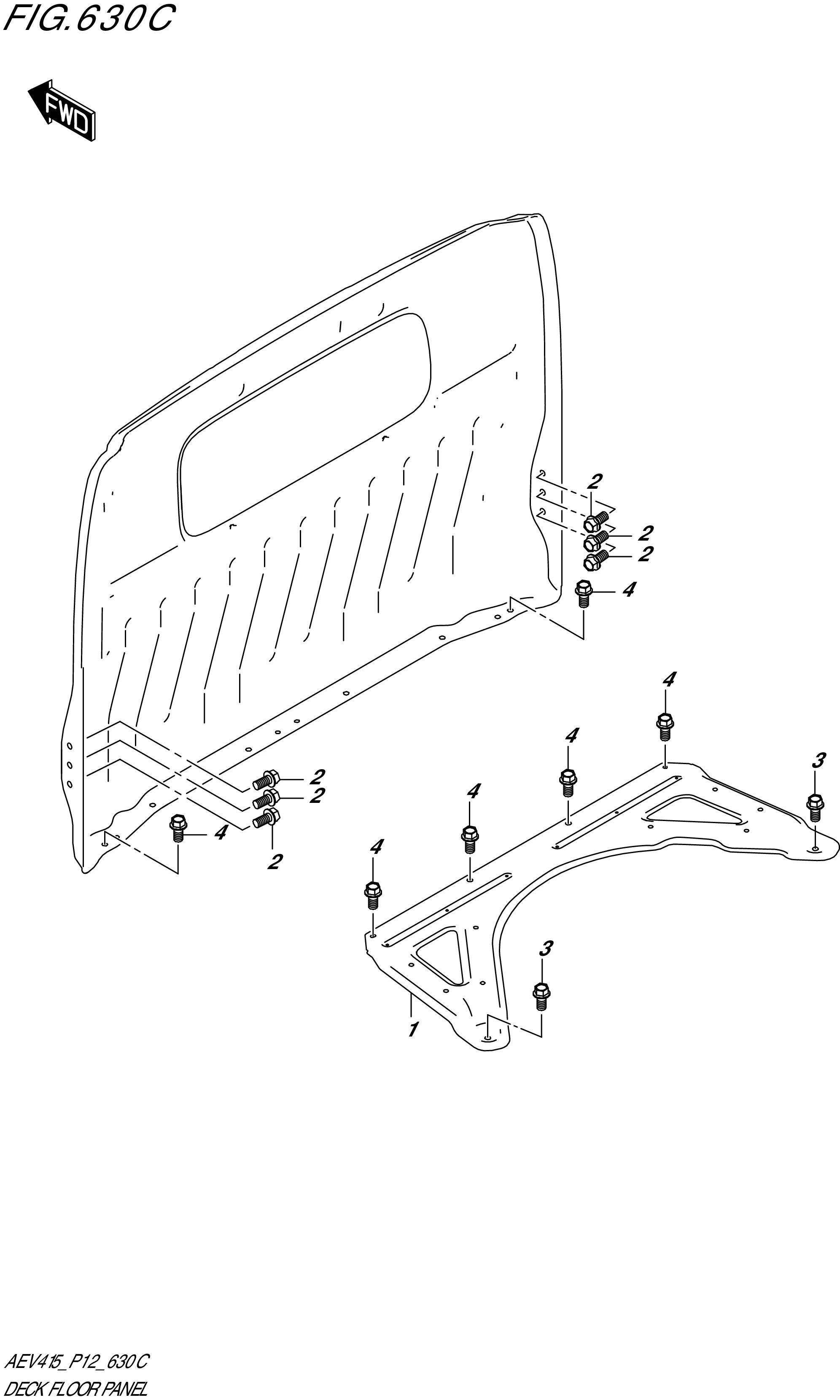

FIG. 630C DECK FLOOR PANEL (SPB)

FIG. 630C DECK FLOOR PANEL (SPB)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	67931-52S01-000 SUB: 67931-52S00-000	PANEL,DECK LESS	1	Rp1.384.000
2	01551-1020A-000	BOLT	6	Rp18.000
3	01551-1020A-000	BOLT	2	Rp18.000
4	01551-1020A-000	BOLT	6	Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
