NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 560A - CHASSIS FRAME FIG. 565A - CROSSMEMBER FIG. 572A - TIRE CARRIER FIG. 580A - FRONT FENDER PANEL FIG. 590A - FRONT BODY PANEL (N_AC)FIG. 601A - FRONT FLOOR PANEL FIG. 630A - DECK FLOOR PANEL (SIG_GTBD)FIG. 635A - DECK GATE (SIG_GTBD)FIG. 635B - DECK GATE (TRE_GTBD)FIG. 640A - SIDE BODY PANEL FIG. 660A - ROOF PANEL FIG. 717A - FRONT BUMPER FIG. 721A - INSTRUMENT PANEL UPPER (N_AC)FIG. 721B - INSTRUMENT PANEL UPPER (W_MN_AC)FIG. 722A - INSTRUMENT PANEL LOWER FIG. 730A - VENTILATOR (W_MN_AC)FIG. 732A - HEATER UNIT (W_MN_AC)FIG. 735A - HEATER BLOWER (W_MN_AC)FIG. 736A - HEATER DOOR (W_MN_AC)FIG. 737A - EVAPORATOR UNIT (W_MN_AC)FIG. 740A - CONSOLE BOX FIG. 741A - FLOOR CARPET FIG. 750A - COVER/CAP FIG. 760A - ROOF LINING FIG. 773A - OPENING TRIM FIG. 780A - EMBLEM FIG. 790A - WINDSHIELD FIG. 800A - FRONT DOOR PANEL FIG. 810A - FRONT DOOR REGULATOR FIG. 820A - FRONT DOOR LOCK FIG. 835A - MIRROR/SUNVISOR FIG. 840A - SEAT BELT FIG. 848A - FRONT LH SEAT FIG. 849A - FRONT RH SEAT FIG. 865A - FUEL TANK FIG. 893A - TOOL FIG. 960A - CONDENSER (W_MN_AC)FIG. 966A - A/C PIPING (W_MN_AC)FIG. 990A - COMPRESSOR (W_MN_AC)FIG. 70JA MUD FLAP FIG. 73AA HEATER CONTROL (W_MN_AC)FIG. 630B - DECK FLOOR PANEL (TRE_GTBD)FIG. 590B - FRONT BODY PANEL (W_MN_AC)FIG. 630C DECK FLOOR PANEL (SPB)

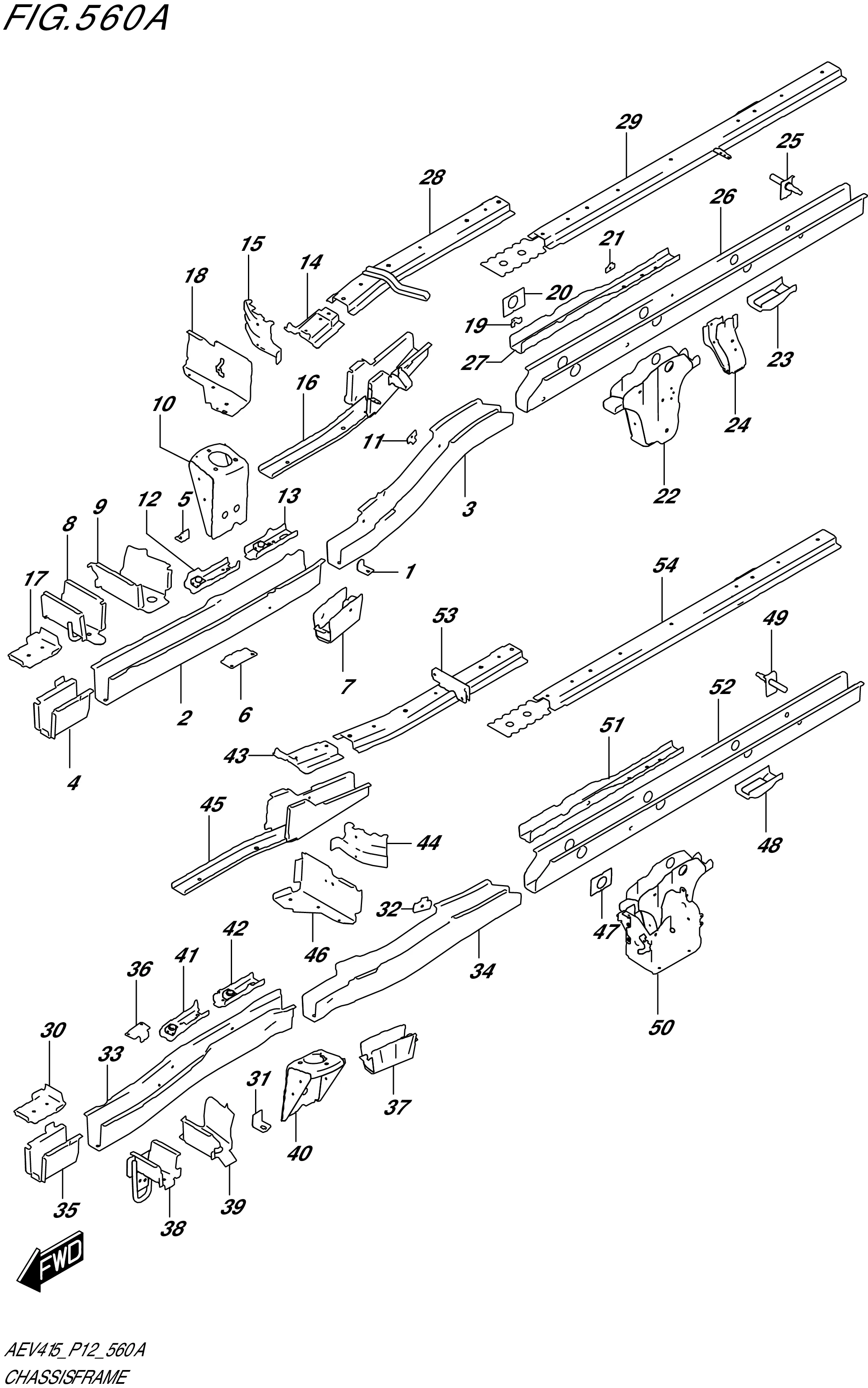

FIG. 560A - CHASSIS FRAME

No	No. Part	Description	Qty	Price Per Pcs
1	58421-80H00-000	BRACKET,DASH SILENCER	1	Rp9.000
2	59111-52S00-000	FRAME,FLOOR FRONT,R	1	Rp998.000
3	59112-52S00-000	FRAME,FLOOR CENTER,R	1	Rp933.500
4	59116-52S00-000	EXTENSION,FLOOR FRONT FRAME,R	1	Rp133.000
5	59116-77500-000	BRACKET,FR BK FLEXIBLE HOSE	1	Rp21.000
6	59118-52S01-000 SUB: 59118-52S00-000	PATCH,FRONT FRAME,R	1	Rp15.500
7	59120-52S00-000	BRACKET,ENGINE MOUNT,R	1	Rp168.500
8	59130-52S00-000	MEMBER,FR FRAME SIDE,R	1	Rp213.500
9	59141-52S00-000	MEMBER,FRAME SIDE RR,R	1	Rp136.000
10	59150-52S00-000	BRACKET,FRONT STRUT,R	1	Rp258.000
11	59214-52S00-000	RETAINER,AIR INTAKE	1	Rp8.500
12	59310-52S00-000	REINF,FR SPNSN FRM FR,R	1	Rp144.500
13	59320-52S00-000	REINF,FR SPNSN FRM RR,R	1	Rp140.500
14	59161-52S00-000	FRAME,REAR UPPER FRONT,R	1	Rp222.000
15	59162-52S00-000	GUSSET,REAR PILLAR LOWER,R	1	Rp222.000
16	59170-52S00-000	BEAM,FRONT FRAME,R	1	Rp442.000
17	59181-52S00-000	COVER,FRONT FRAME FRONT,R	1	Rp45.500
18	59190-52S00-000	COVER,CTR FRAME FRONT,R	1	Rp135.500
19	58232-60B00-000	BRACKET,PARKING CABLE	1	Rp8.500
20	59213-52S00-000	PATCH,ENG MTG REAR CROSSMEMBER	1	Rp18.500
21	59214-52S00-000	RETAINER,AIR INTAKE	1	Rp8.500
22	59220-52S00-000	HANGER,LEAF SPRING FRONT	1	Rp630.500
23	59230-52S00-000	STOPPER,REAR BUMP,R	1	Rp126.500
24	59240-52S00-000	BRACKET,FUEL TANK REAR	1	Rp89.500
25	59250-52S00-000	BRACKET,SHOCK ABS PIVOT	1	Rp411.500
26	59211-52S01-000 SUB: 59211-52S00-000	FRAME,FLOOR REAR,R	1	Rp873.000
27	59212-52S00-000	REINF,REAR FRAME FRONT	1	Rp139.000
28	59260-52S00-000	FRAME,REAR UPPER CTR,R	1	Rp274.500
29	59270-52S00-000	FRAME,REAR UPPER REAR,R	1	Rp536.500
30	59181-52S00-000	COVER,FRONT FRAME FRONT,R	1	Rp45.500
31	59116-77500-000	BRACKET,FR BK FLEXIBLE HOSE	1	Rp21.000
32	59214-52S00-000	RETAINER,AIR INTAKE	1	Rp8.500
33	59411-52S00-000	FRAME,FLOOR FRONT,L	1	Rp953.000
34	59412-52S00-000	FRAME,FLOOR CENTER,L	1	Rp974.500
35	59416-52S00-000	EXTENSION,FLOOR FRONT FRAME,L	1	Rp133.000
36	59418-52S01-000 SUB: 59418-52S00-000	PATCH,FRONT FRAME,L	1	Rp15.500
37	59420-52S00-000	BRACKET,ENGINE MOUNT,L	1	Rp172.000
38	59430-52S00-000	MEMBER,FR FRAME SIDE,L	1	Rp327.500
39	59441-52S00-000	MEMBER,FRAME SIDE RR,L	1	Rp136.000
40	59450-52S00-000	BRACKET,FRONT STRUT,L	1	Rp264.000
41	59610-52S00-000	REINF,FR SPNSN FRAME FR,L	1	Rp144.500
42	59620-52S00-000	REINF,FR SPNSN FRAME RR,L	1	Rp140.500
43	59461-52S00-000	FRAME,REAR UPPER FRONT,L	1	Rp1.060.000
44	59462-52S00-000	GUSSET,REAR PILLAR LOWER,L	1	Rp211.500
45	59470-52S00-000	BEAM,FRONT FRAME,L	1	Rp176.500
46	59491-52S00-000	COVER,CTR FRAME FR,L	1	Rp133.000
47	59213-52S00-000	PATCH,ENG MTG REAR CROSSMEMBER	1	Rp18.500
48	59230-52S00-000	STOPPER,REAR BUMP,R	1	Rp126.500
49	59250-52S00-000	BRACKET,SHOCK ABS PIVOT	1	Rp411.500
50	59520-52S00-000	HANGER,LEAF SPRING FRONT	1	Rp873.500
51	59212-52S00-000	REINF,REAR FRAME FRONT	1	Rp139.000
52	59511-52S01-000 SUB: 59511-52S00-000	FRAME,FLOOR REAR,L	1	Rp873.000
53	59560-52S00-000	FRAME,REAR UPPER CTR,L	1	Rp274.500
54	59570-52S00-000	FRAME,REAR UPPER REAR,L	1	Rp536.500
