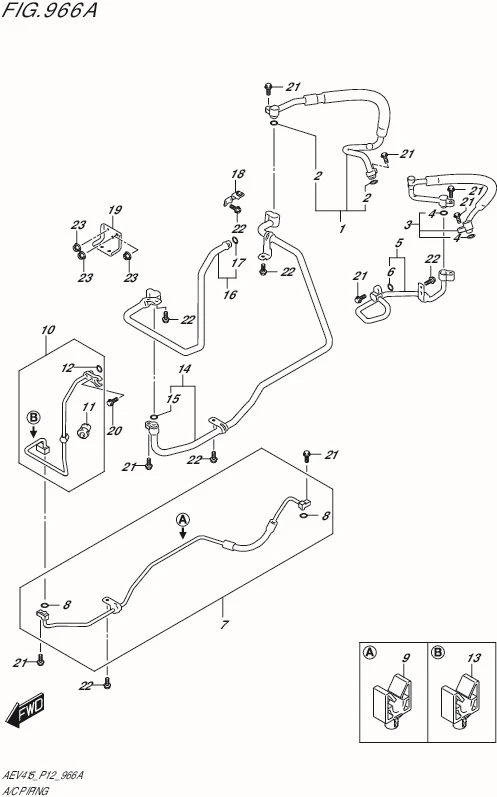

FIG. 966A - A/C PIPING (W_MN_AC)

FIG. 966A - A/C PIPING (W_MN_AC)
No No. Part Description Qty Price Per Pcs Remarks
1 95710-52S00-000 HOSE,SUCTION 1 Rp281.500
2 95896-50G00-000
SUB: 95896B50G00N000		 .O-RING (D:2.4,ID:13.4) 2 Rp19.000
3 95720-52S00-000 HOSE,DISCHARGE 1 Rp281.000
4 95895-50G00-000
SUB: 95895B50G00N000		 .O-RING (D:2.4,ID:10.8) 2 Rp12.500
5 95721-52S00-000 PIPE,DISCHARGE 1 Rp176.000
6 95895-50G00-000
SUB: 95895B50G00N000		 .O-RING (D:2.4,ID:10.8) 1 Rp12.500
7 95732-52S00-000 PIPE,LIQUID NO.1 1 Rp292.000
8 95891-50G00-000
SUB: 95891B50G00N000		 .O-RING (D:1.8,ID:6.7) 2 Rp12.500
9 09403M08331-000 .CLAMP 1 Rp6.500
10 95733-52S00-000 PIPE,LIQUID NO.2 1 Rp724.000
11 95546-58J20-000 .SENSOR,REFRIGERANT PRESS 1 Rp655.000
12 95891-50G00-000
SUB: 95891B50G00N000		 .O-RING (D:1.8,ID:6.7) 1 Rp12.500
13 09403M08331-000 .CLAMP 1 Rp6.500
14 95741-52S00-000 PIPE,SUCTION NO.1 1 Rp224.000
15 95896-50G00-000
SUB: 95896B50G00N000		 .O-RING (D:2.4,ID:13.4) 1 Rp19.000
16 95742-52S00-000 PIPE,SUCTION NO.2 1 Rp151.500
17 95896-50G00-000
SUB: 95896B50G00N000		 .O-RING (D:2.4,ID:13.4) 1 Rp19.000
18 95781-52S00-000 STAY,SUCT PIPE 1 Rp7.500
19 95782-52S00-000 STAY,SUCT AND LIQUID PIPE 1 Rp8.500
20 01550-0620B-000
SUB: 01550B0620BN000		 BOLT (6X20) 1 Rp3.500
21 01550-0620C-000 BOLT (6X20) 8 Rp5.500
22 02162-0612A-000 SCREW (6X12) 6 Rp11.000
23 08316-1006C-000 NUT 3 Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
