NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 560A - CHASSIS FRAME FIG. 565A - CROSSMEMBER FIG. 572A - TIRE CARRIER FIG. 580A - FRONT FENDER PANEL FIG. 590A - FRONT BODY PANEL (N_AC)FIG. 601A - FRONT FLOOR PANEL FIG. 630A - DECK FLOOR PANEL (SIG_GTBD)FIG. 635A - DECK GATE (SIG_GTBD)FIG. 635B - DECK GATE (TRE_GTBD)FIG. 640A - SIDE BODY PANEL FIG. 660A - ROOF PANEL FIG. 717A - FRONT BUMPER FIG. 721A - INSTRUMENT PANEL UPPER (N_AC)FIG. 721B - INSTRUMENT PANEL UPPER (W_MN_AC)FIG. 722A - INSTRUMENT PANEL LOWER FIG. 730A - VENTILATOR (W_MN_AC)FIG. 732A - HEATER UNIT (W_MN_AC)FIG. 735A - HEATER BLOWER (W_MN_AC)FIG. 736A - HEATER DOOR (W_MN_AC)FIG. 737A - EVAPORATOR UNIT (W_MN_AC)FIG. 740A - CONSOLE BOX FIG. 741A - FLOOR CARPET FIG. 750A - COVER/CAP FIG. 760A - ROOF LINING FIG. 773A - OPENING TRIM FIG. 780A - EMBLEM FIG. 790A - WINDSHIELD FIG. 800A - FRONT DOOR PANEL FIG. 810A - FRONT DOOR REGULATOR FIG. 820A - FRONT DOOR LOCK FIG. 835A - MIRROR/SUNVISOR FIG. 840A - SEAT BELT FIG. 848A - FRONT LH SEAT FIG. 849A - FRONT RH SEAT FIG. 865A - FUEL TANK FIG. 893A - TOOL FIG. 960A - CONDENSER (W_MN_AC)FIG. 966A - A/C PIPING (W_MN_AC)FIG. 990A - COMPRESSOR (W_MN_AC)FIG. 70JA MUD FLAP FIG. 73AA HEATER CONTROL (W_MN_AC)FIG. 630B - DECK FLOOR PANEL (TRE_GTBD)FIG. 590B - FRONT BODY PANEL (W_MN_AC)FIG. 630C DECK FLOOR PANEL (SPB)

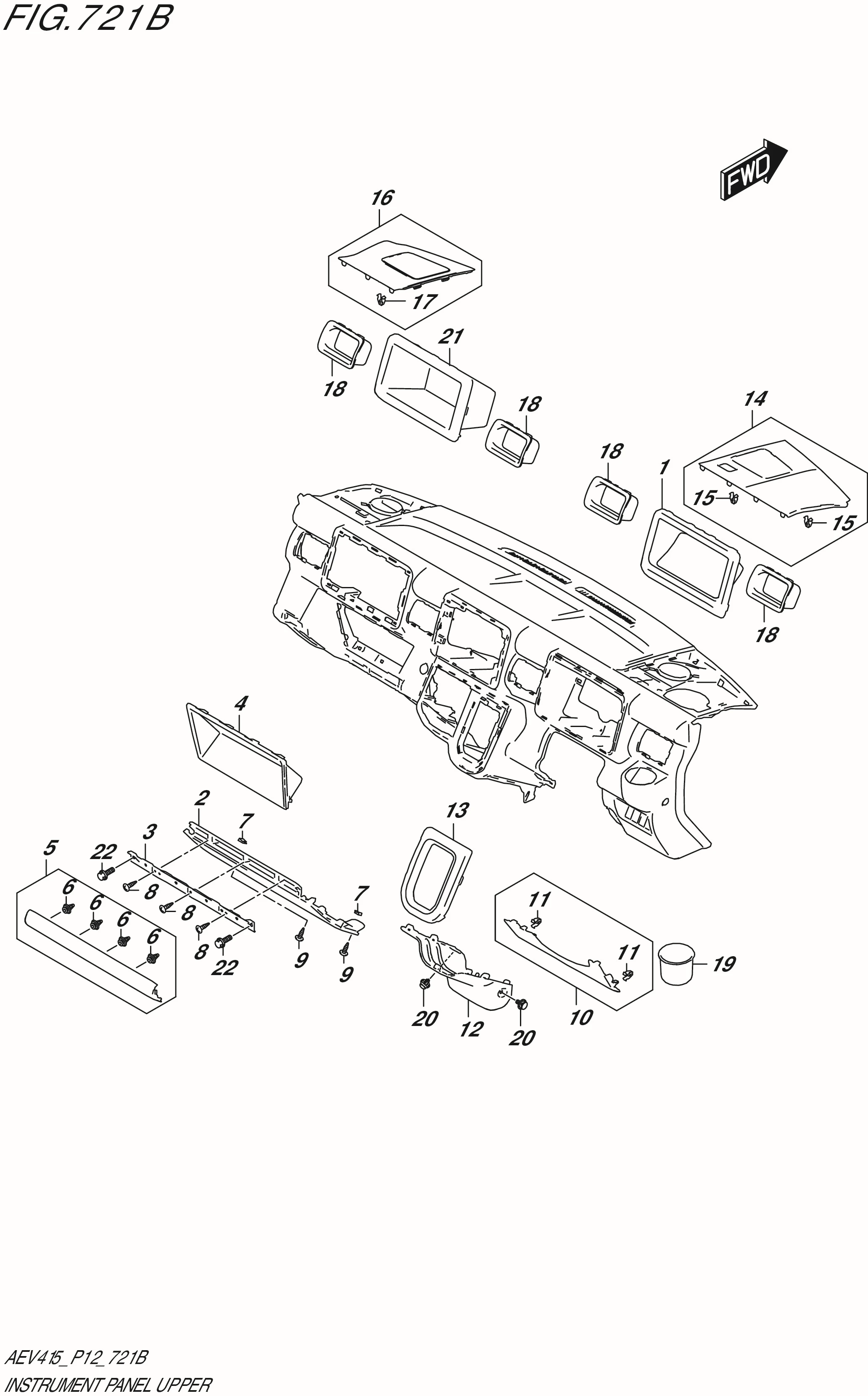

FIG. 721B - INSTRUMENT PANEL UPPER (W_MN_AC)

FIG. 721B - INSTRUMENT PANEL UPPER (W_MN_AC)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73311-52S00-5PK	PANEL,INSTRUMENT CLUSTER (BLACK)	1	Rp265.000
2	73411-52S00-U3J	LID,GLOVE BOX (GRAY)	1	Rp67.500
3	73421-52S00-000	REINF,GLOVE BOX LID	1	Rp40.000
4	73431-52S00-U3J	COVER,GLOVE BOX FRONT (GRAY)	1	Rp40.000
5	73441-52S00-U3J	COVER,GLOVE BOX (GRAY)	1	Rp26.500
6	09409-10327-000	.CLIP	4	Rp5.000
7	09148-05045-000 SUB: 09148B05045N000	NUT (M5)	2	Rp4.000
8	03541-0516A-000	SCREW	3	Rp3.500
9	03541-0516A-000	SCREW	2	Rp3.500
10	73811-52S00-U3J	COVER,STRG COLUMN HOLE (GRAY)	1	Rp81.000
11	09409-08351-000	.CLIP	2	Rp21.000
12	73833-52S00-U3J	COVER,I/P CTR LOWER (GRAY)	1	Rp32.500
13	73834-52S00-U3J	GARNISH,GEAR SHIFT (GRAY)	1	Rp18.000
14	73841-52S00-U3J	COVER,I/P SPEAKER DRVR (GRAY)	1	Rp70.000
15	09409-08351-000	.CLIP	2	Rp21.000
16	73842-52S00-U3J	COVER,I/P SPEAKER PASSENGER (GRAY)	1	Rp38.500
17	09409-08351-000	.CLIP	1	Rp21.000
18	73844-52S00-U3J	HOLDER,I/P LOUVER (GRAY)	4	Rp10.000
19	73851-52S00-U3J	HOLDER,CUP (GRAY)	1	Rp11.500
20	09409-07340-000	CLIP (6.8X11.5)	2	Rp17.500
21	73831-52S00-5PK	TRAY,I/P ASST UPPER (BLACK)	1	Rp65.000
22	09111-06054-000	BOLT,6X14.6 (6X14.6)	2	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
