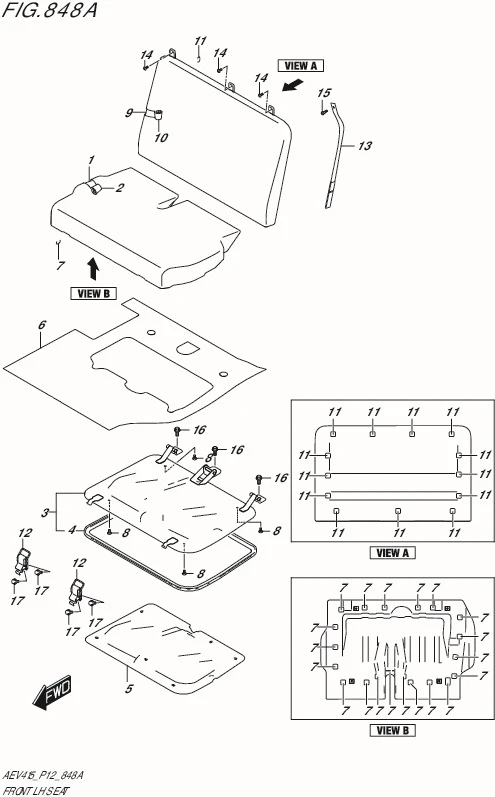

FIG. 848A - FRONT LH SEAT

FIG. 848A - FRONT LH SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	85660-52SA0-000	PAD,FR CUSH,L	1	Rp390.500
2	85680-52SA0-DTY	TRIM,FR CUSH,L	1	Rp273.500
3	85910-52SA0-000	PANEL ASSY,FR RISER,L	1	Rp761.500
4	85928-52SA0-000	.WEATHERSTRIP,FR RISER	1	Rp146.500
5	85927-52SA0-000	INSULATOR,FR RISER,L	1	Rp443.000
6	85930-52SA0-S01	CARPET,FRONT RISER,L (GRAY)	1	Rp185.000
7	09387-19001-000	RING (OD:22.6)	20	Rp9.000
8	02142-0612A-000	SCREW	4	Rp4.000
9	85860-52SA0-000	PAD,FR BACK	1	Rp337.000
10	85880-52SA0-DTY	TRIM,FR BACK	1	Rp248.500
11	09387-19001-000	RING (OD:22.6)	13	Rp9.000
12	86650-61JA0-000	LOCK ASSY,FR	2	Rp40.000
13	86710-52S00-000	BAND,CUSH STOPPER	1	Rp34.500
14	02142-0612A-000	SCREW	3	Rp4.000
15	09139-06040-000	SCREW (6X20)	1	Rp13.500
16	01551-1020A-000	BOLT	3	Rp18.000
17	01570-0612A-000	BOLT	4	Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
