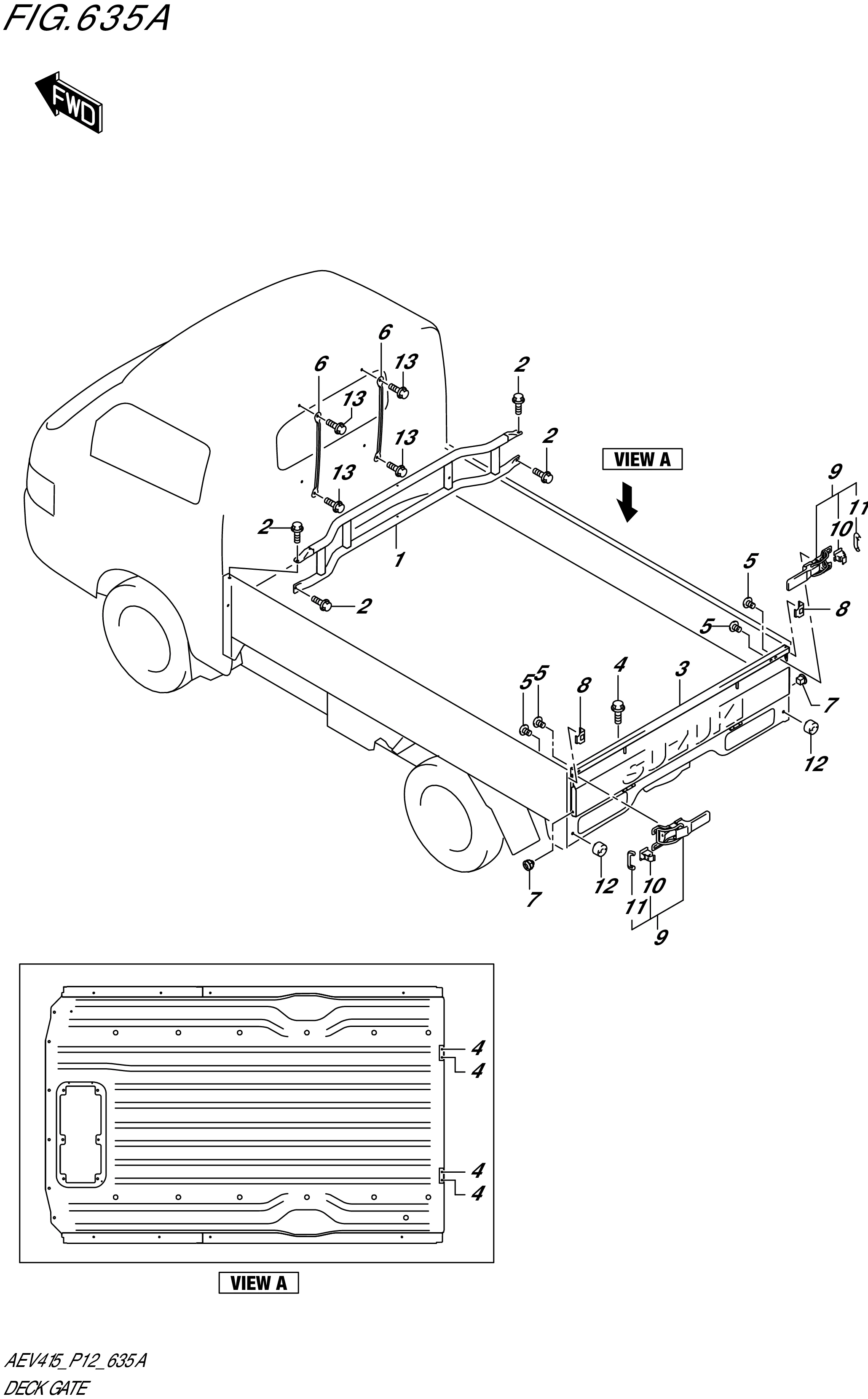

FIG. 635A - DECK GATE (SIG_GTBD)

FIG. 635A - DECK GATE (SIG_GTBD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	65940-52S00-000	GUARD,DECK FRONT	1	Rp599.500
2	01551-1020A-000	BOLT	4	Rp18.000
3	67700-52S01-000 SUB: 67700-52S00-000	PANEL ASSY,REAR GATE	1	Rp1.210.500
4	09116-06168-000	BOLT (6X16)	4	Rp15.000
5	72849-78A01-000	SCREW,GATE LOCK HANDLE	4	Rp32.500
6	72861-52S00-000	BAR,CABIN BACK WINDOW	2	Rp34.500
7	72866-60C00-000	STOPPER,REAR GATE OPEN	2	Rp26.500
8	72867-61JA0-000	PROTECTOR,SIDE GATE REAR	2	Rp38.000
9	72870-78A33-000	HANDLE,SIDE GATE LOCK	2	Rp456.000
10	72847-78A00-000	.STOPPER,GATE LOCK HANDLE OPEN	2	Rp32.000
11	72893-78A31-000	.PROTECTOR,GATE LOCK HANDLE	2	Rp48.000
12	73941-67H00-000	STOPPER,GATE OPEN	2	Rp66.000
13	09116-08111-000	BOLT (8X16)	4	Rp23.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
